Parts Location

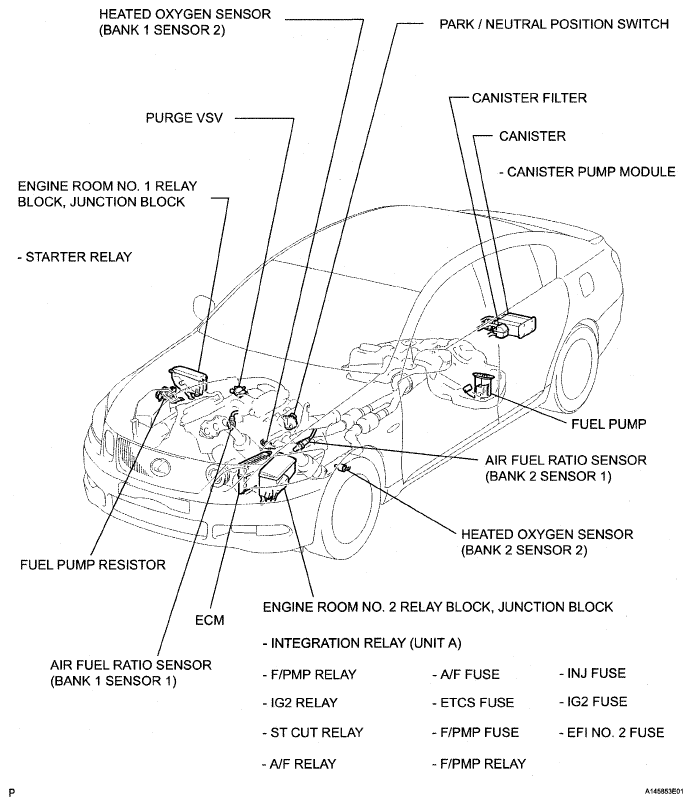

Fig 1: Identifying Engine Control System Components Location - 2GR-FSE (1 Of 4)
G05285011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

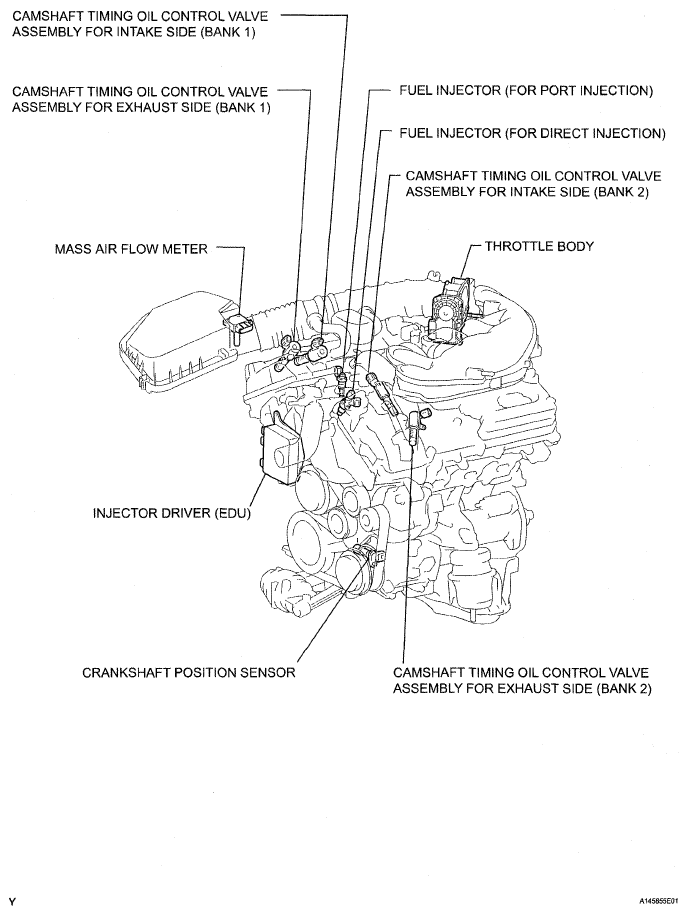

Fig 2: Identifying Engine Control System Components Location - 2GR-FSE (2 Of 4)
G05285012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

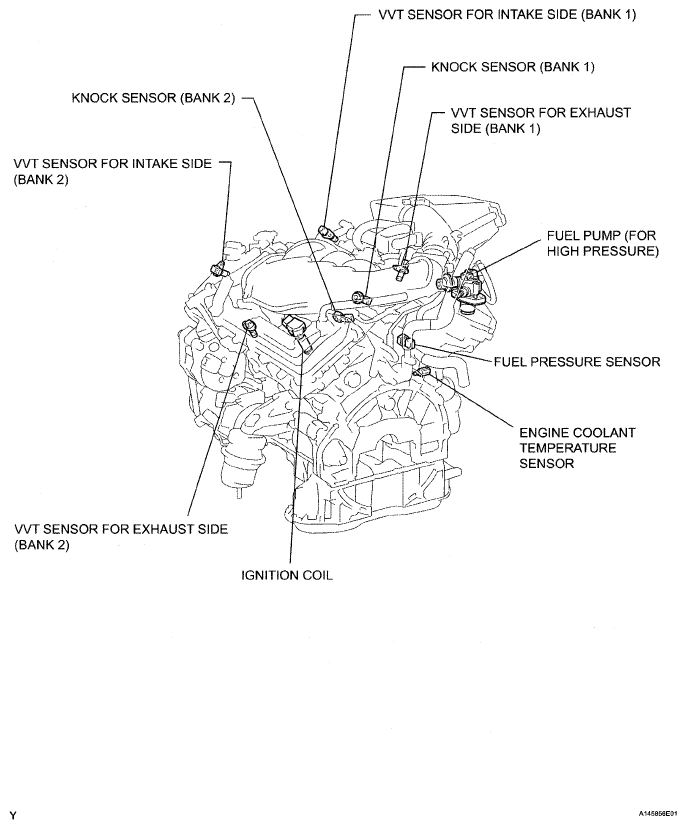

Fig 3: Identifying Engine Control System Components Location - 2GR-FSE (3 Of 4)
G05285013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Engine Control System Components Location - 2GR-FSE (4 Of 4)
G05285014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
