Automatic Transmission Unit: Components

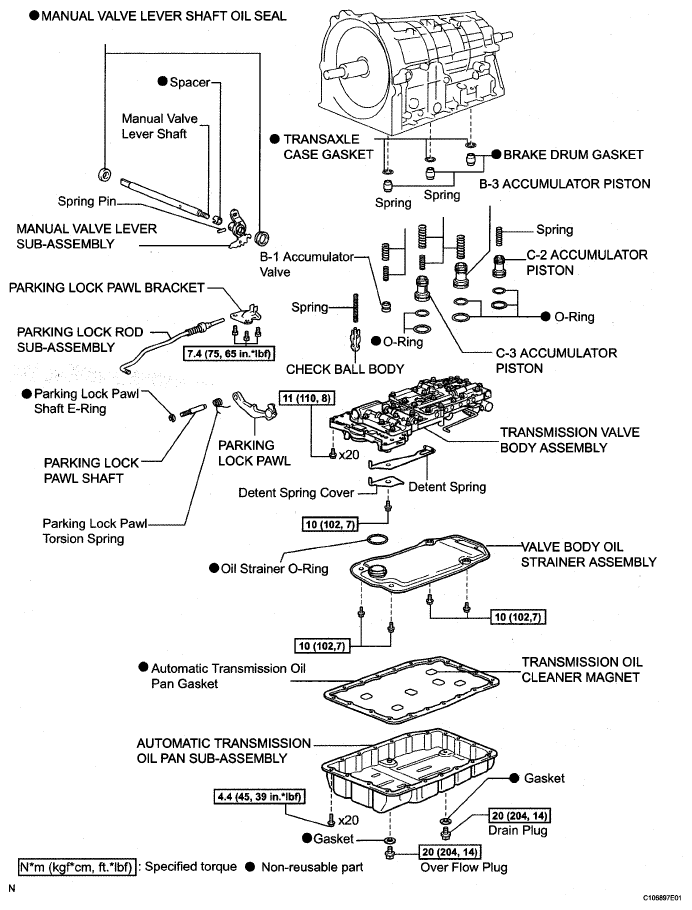

Fig 1: Automatic Transmission Unit Components With Torque Specification (1 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

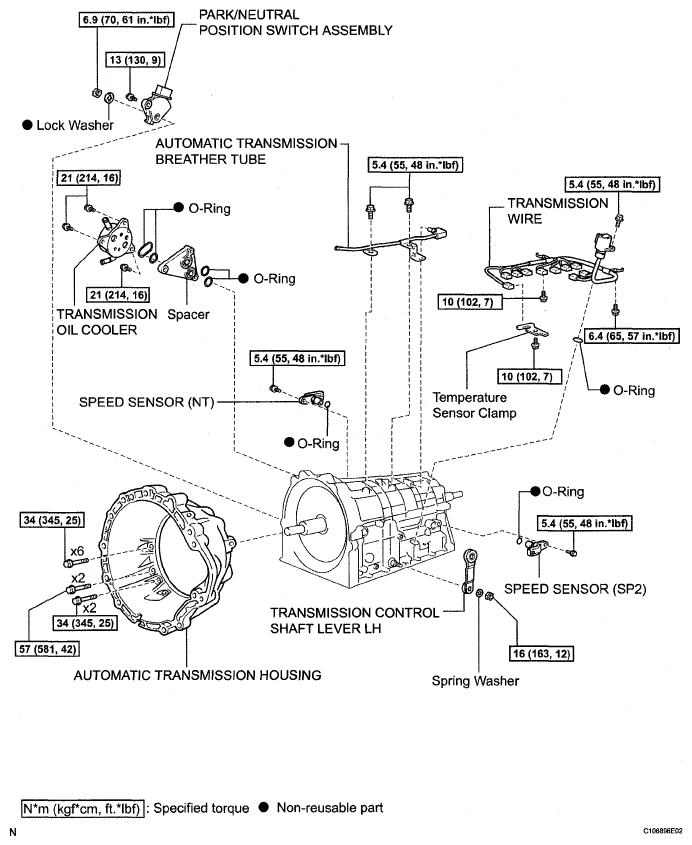

Fig 2: Automatic Transmission Unit Components With Torque Specification (2 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

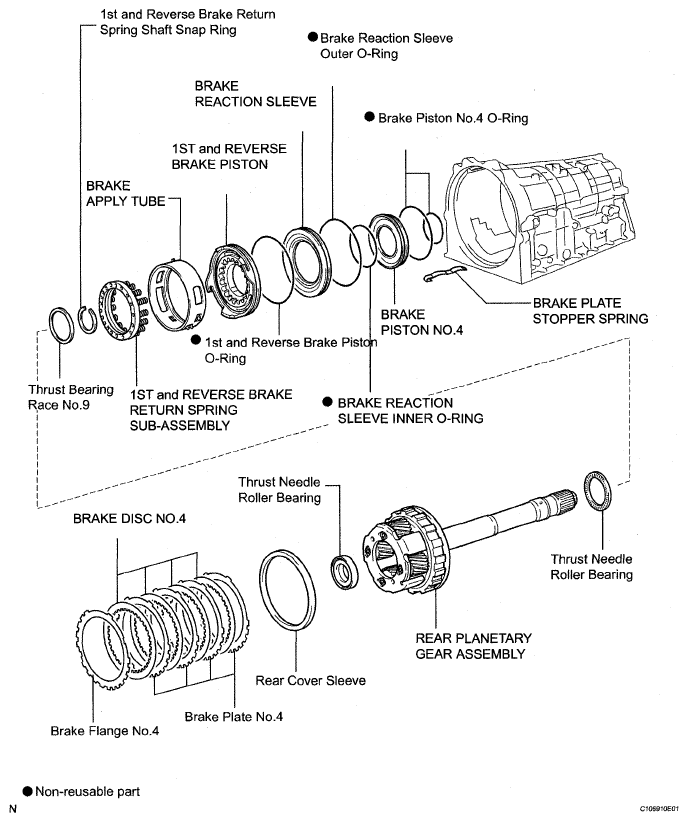

Fig 3: Automatic Transmission Unit Components With Torque Specification (3 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Automatic Transmission Unit Components With Torque Specification (4 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Automatic Transmission Unit Components With Torque Specification (5 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
