Transfer Assembly: Components

WARNING: This page is about a different variant/trim than selected.

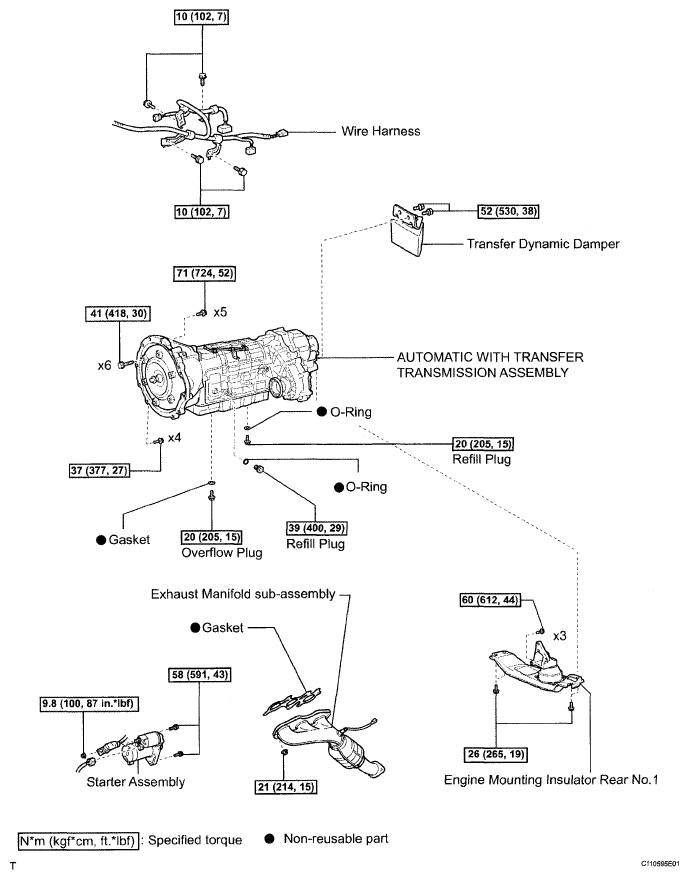

Fig 1: Transfer Assembly Replacement Components With Torque Specifications (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

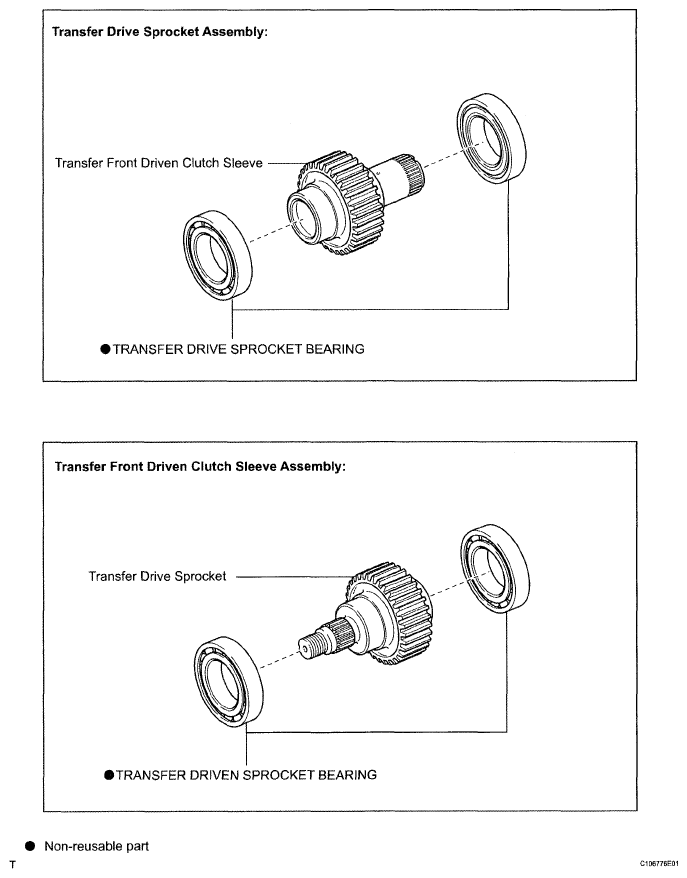

Fig 2: Transfer Assembly Replacement Components With Torque Specifications (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

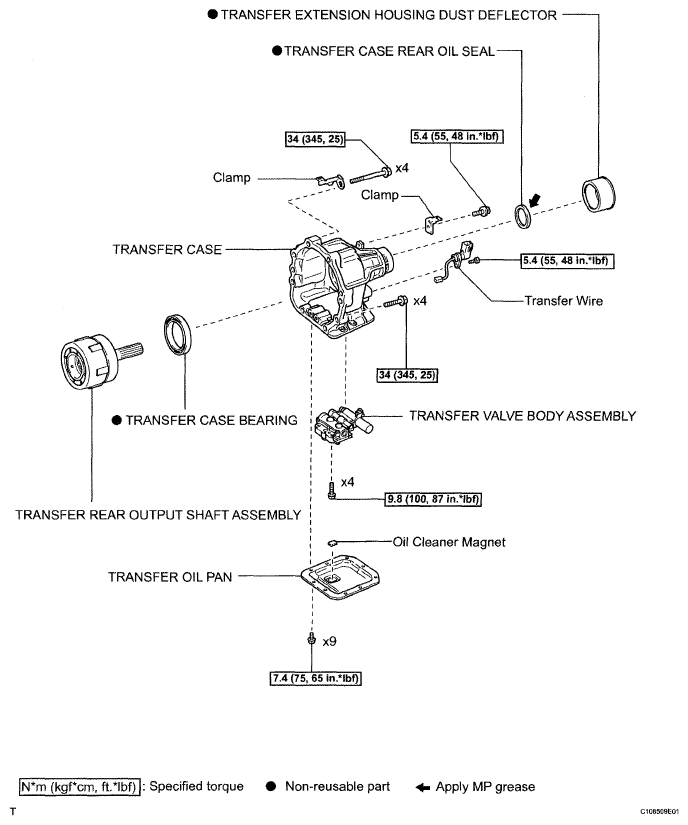

Fig 3: Transfer Assembly Replacement Components With Torque Specifications (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

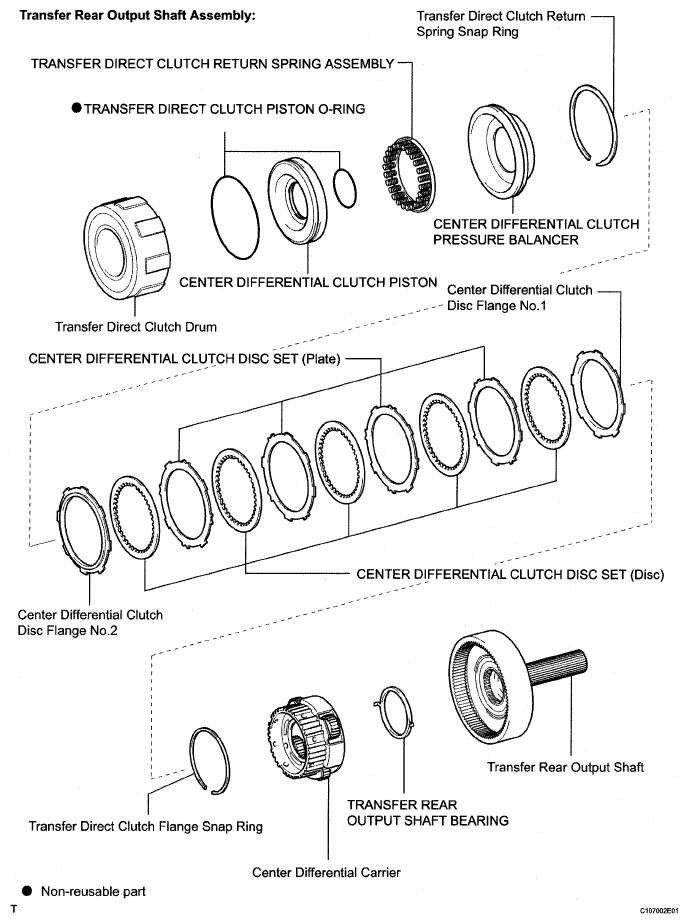

Fig 4: Transfer Assembly Replacement Components With Torque Specifications (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

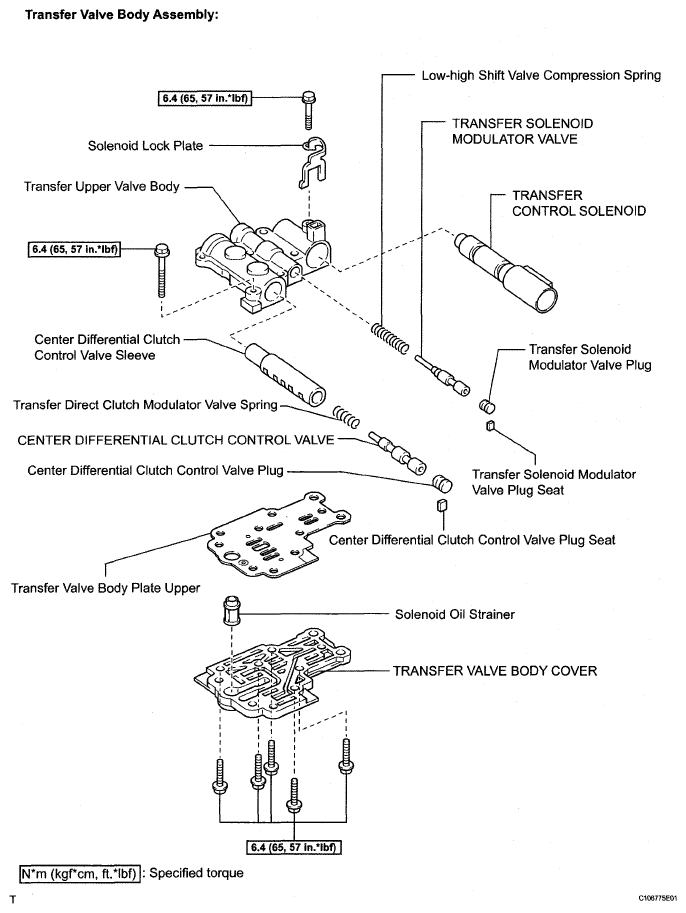

Fig 5: Transfer Assembly Replacement Components With Torque Specifications (5 Of 7)

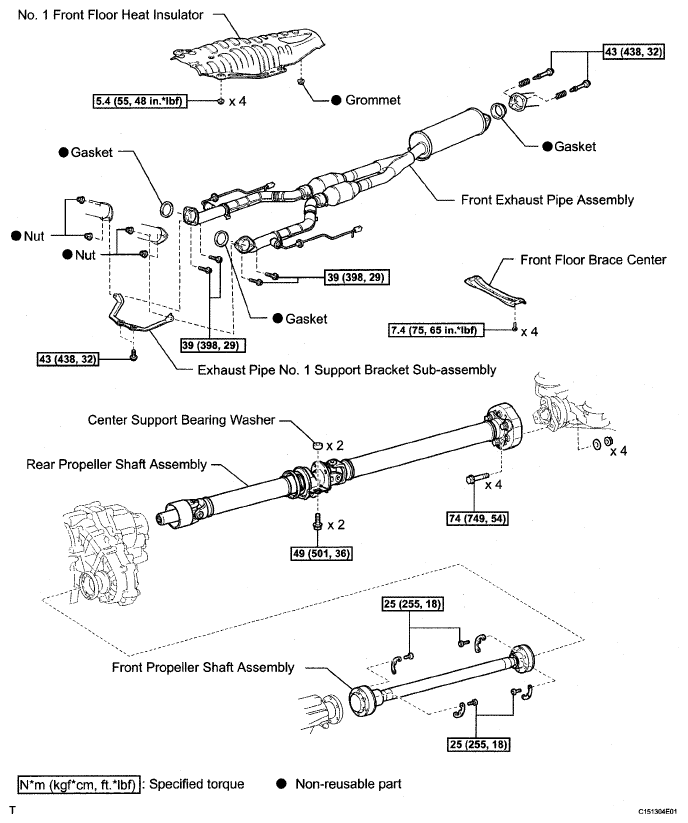

Fig 6: Identifying Transfer Assembly Components (6 Of 7)

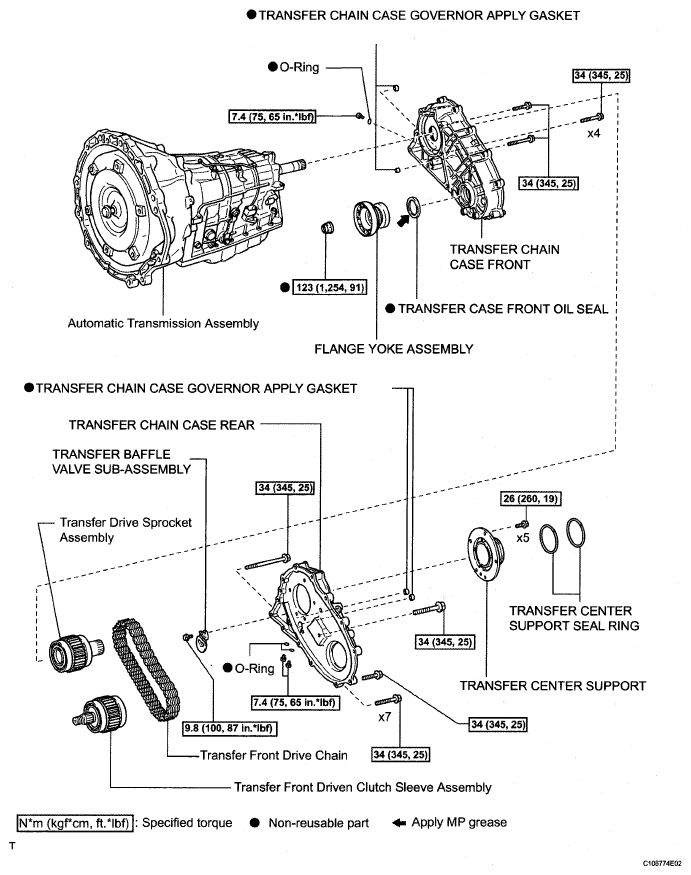

Fig 7: Identifying Transfer Assembly Components (7 Of 7)
