Parts Location

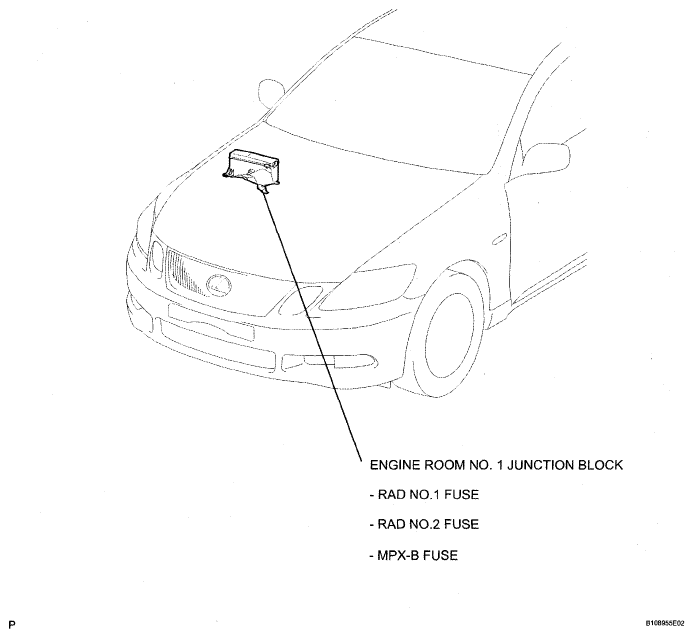

Fig 1: Identifying Audio And Visual System Part Location (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

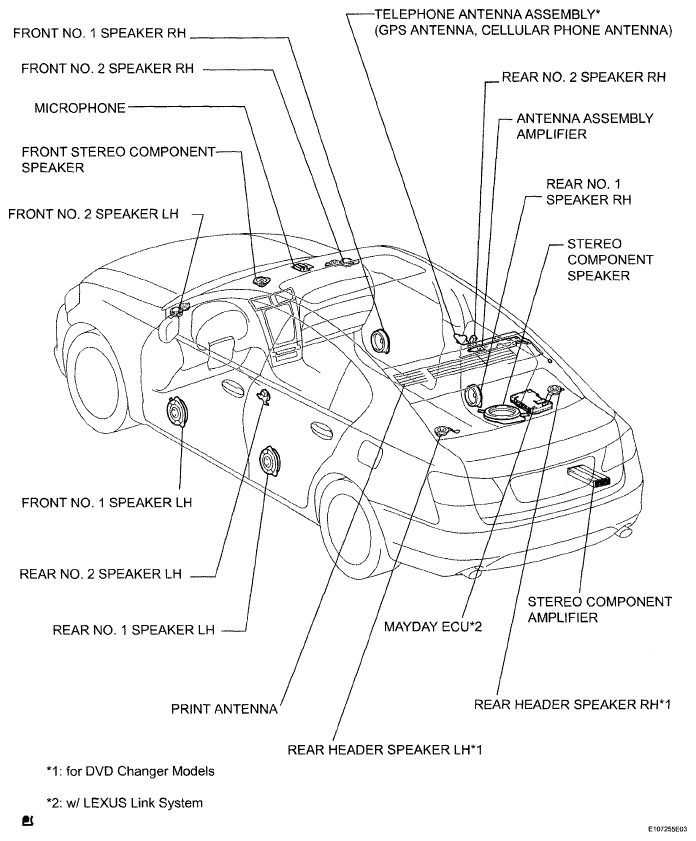

Fig 2: Identifying Audio And Visual System Part Location (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

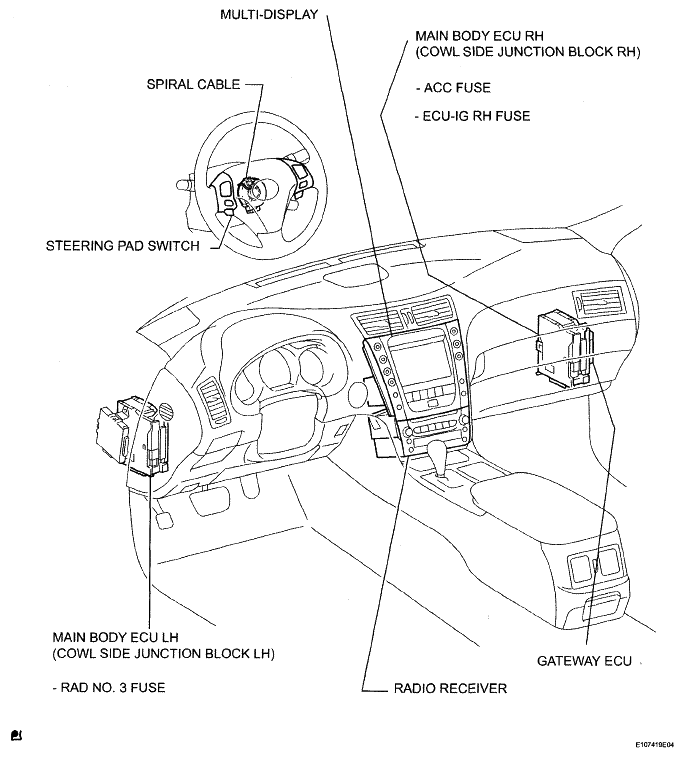

Fig 3: Identifying Audio And Visual Systems Part Location (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
