GS 430
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Headlights
>>
Lighting
>>
Lighting System
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Diagram

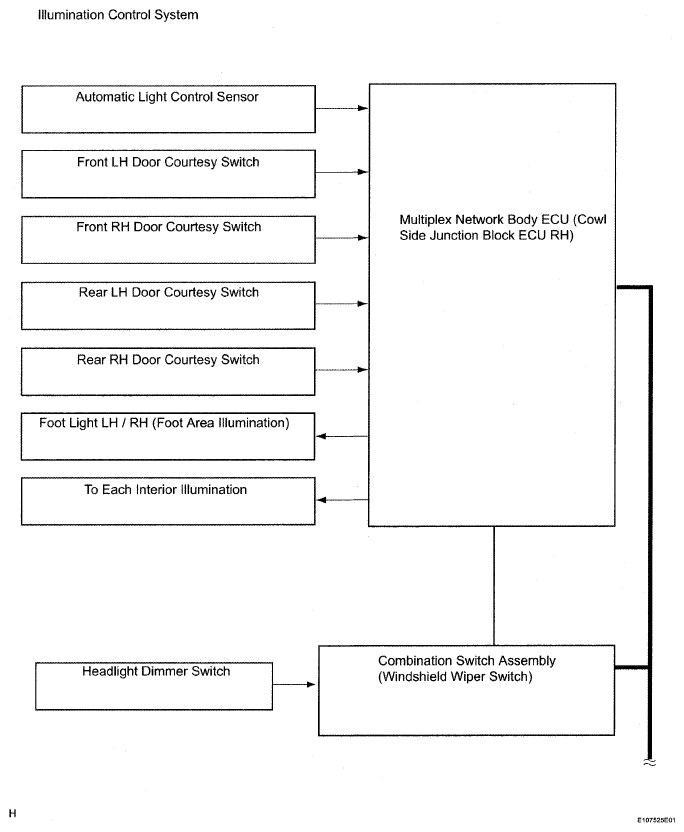

Fig 1: Lighting System Diagram - Illumination Control System (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

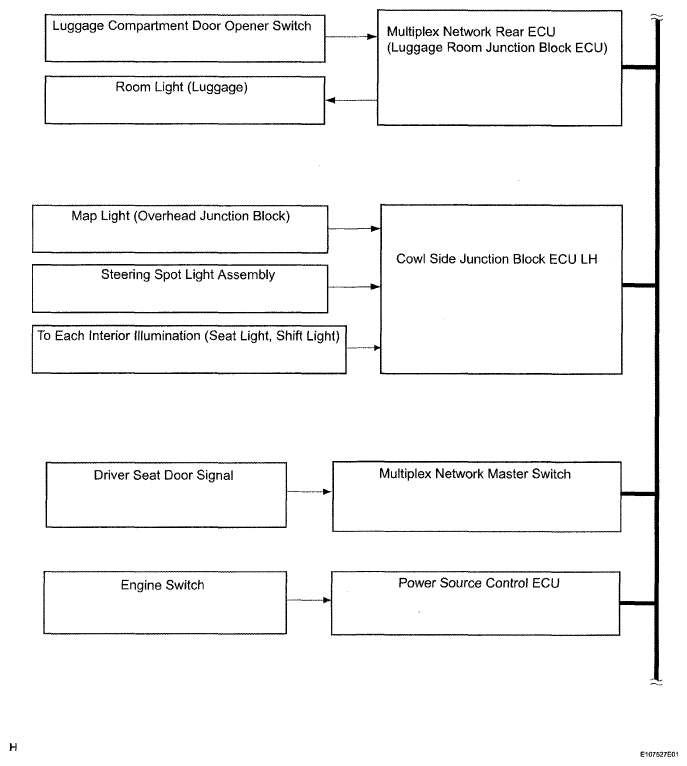

Fig 2: Lighting System Diagram - Illumination Control System (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

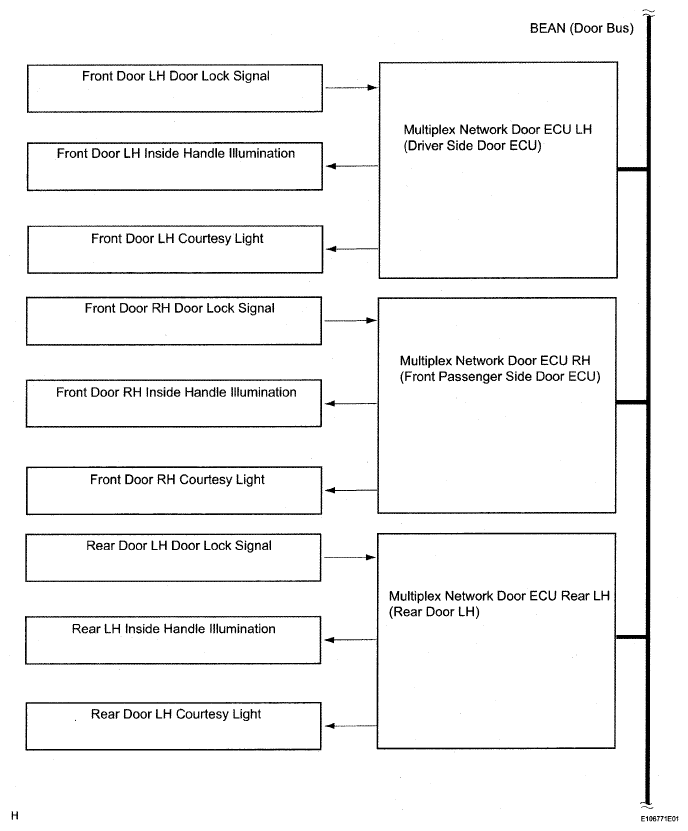

Fig 3: Lighting System Diagram - Illumination Control System (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

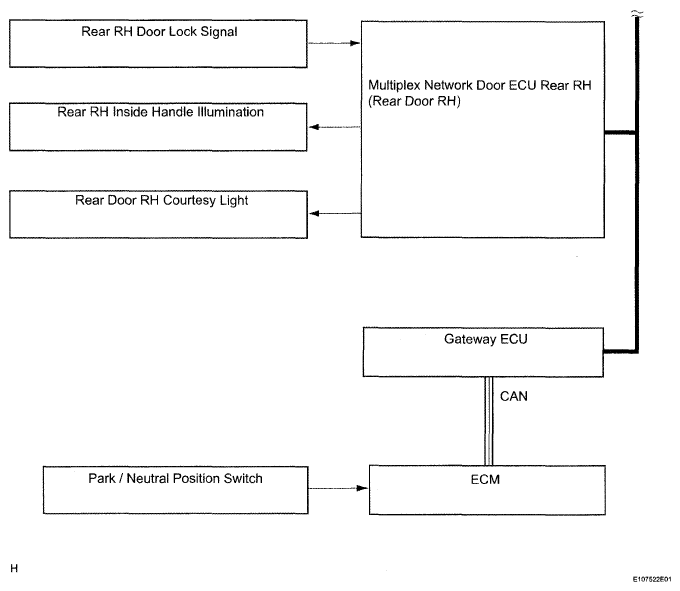

Fig 4: Lighting System Diagram - Illumination Control System (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

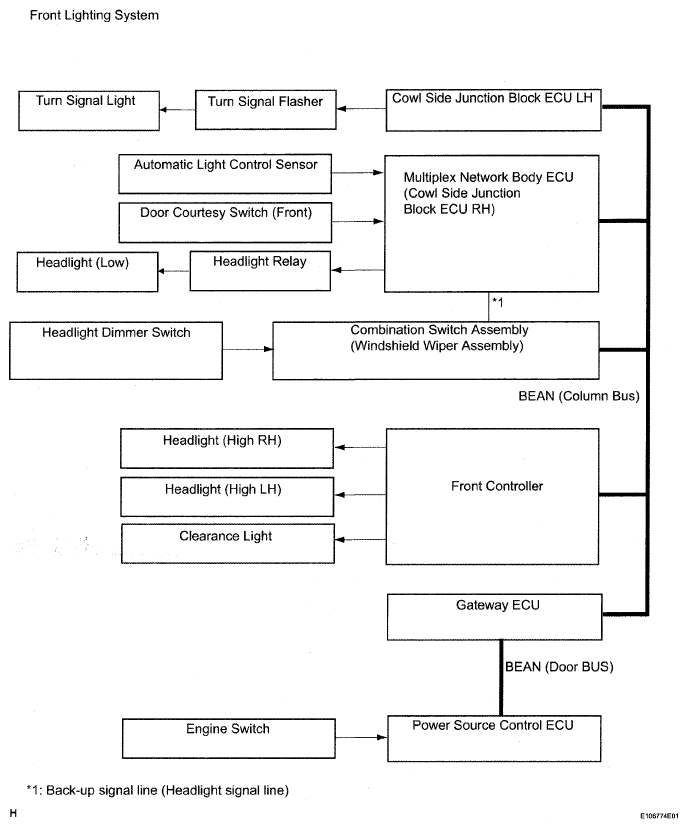

Fig 5: Lighting System Diagram - Front Lighting System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

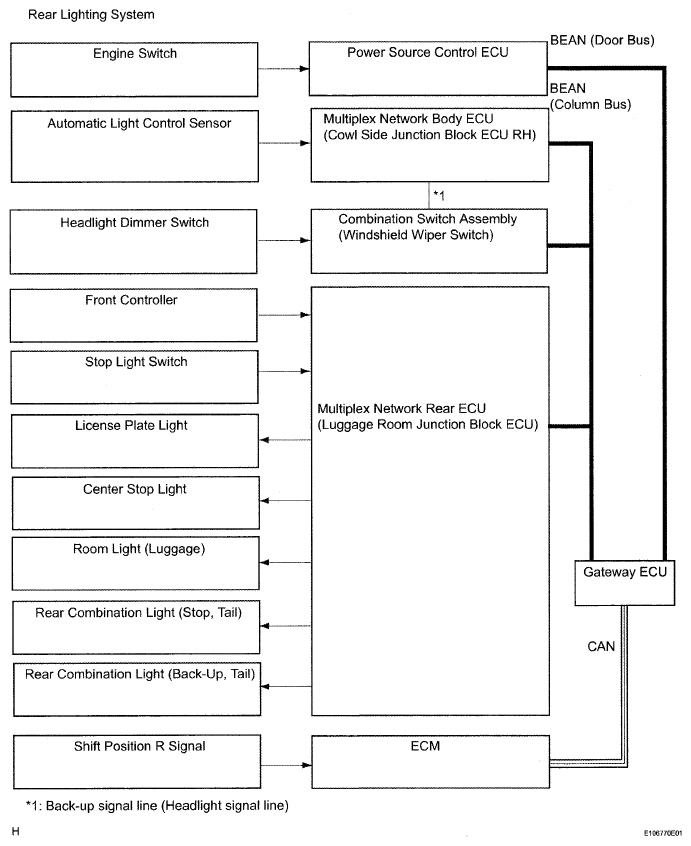

Fig 6: Lighting System Diagram - Rear Lighting System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

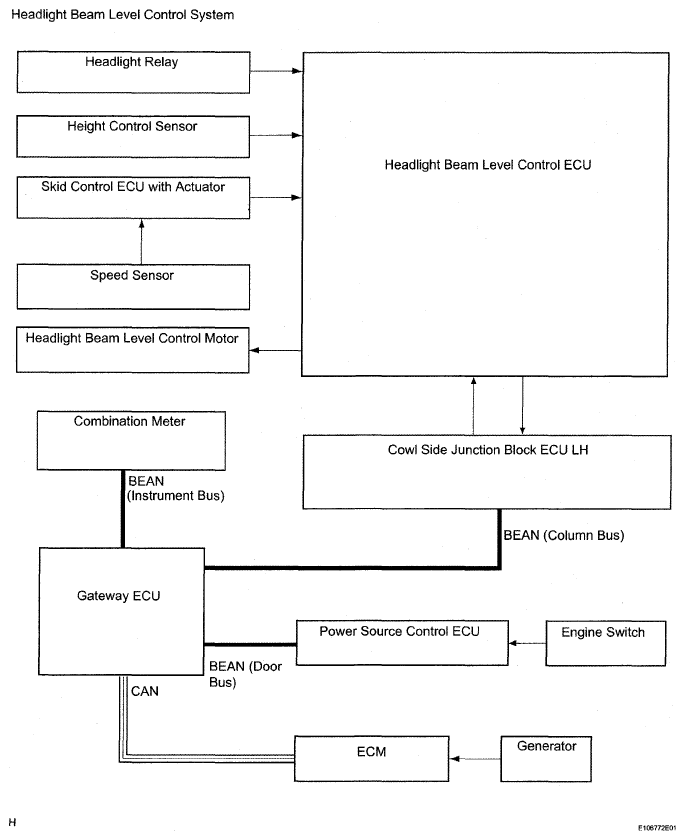

Fig 7: Lighting System Diagram - Headlight Beam Level Control System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

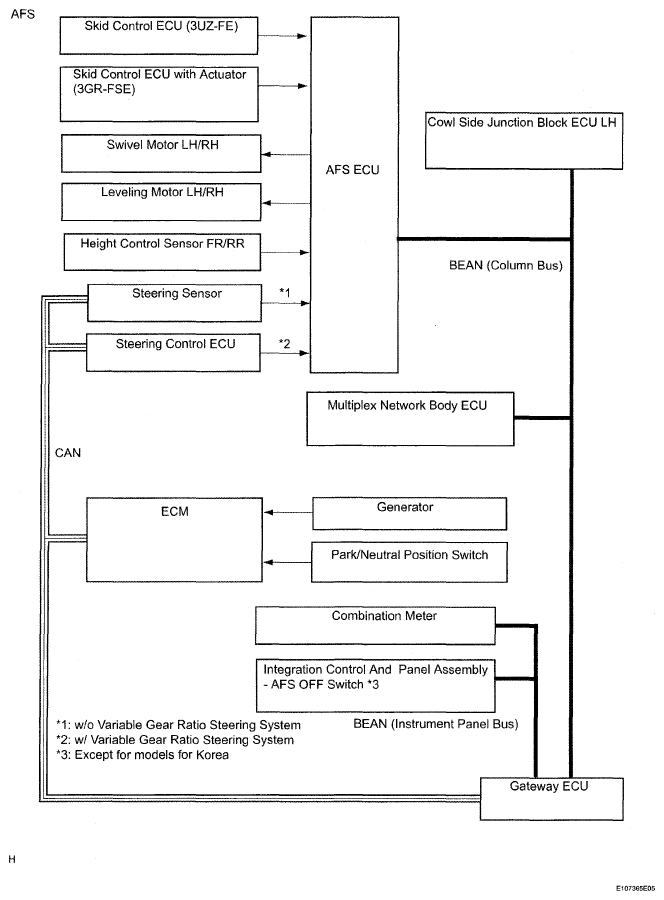

Fig 8: Lighting System Diagram - AFS
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
