Rear Combination Light Assembly: Components

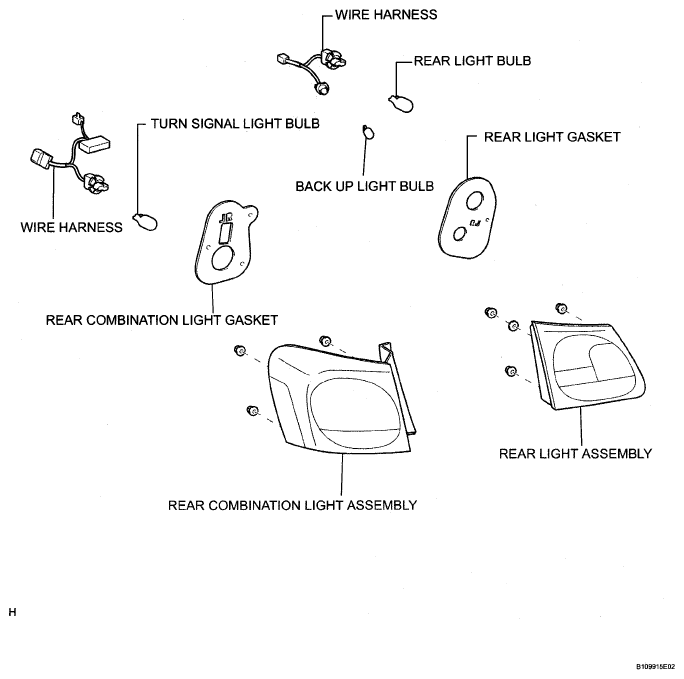

Fig 1: Identifying Rear Combination Light Assembly Components
G05298960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
