System Diagram

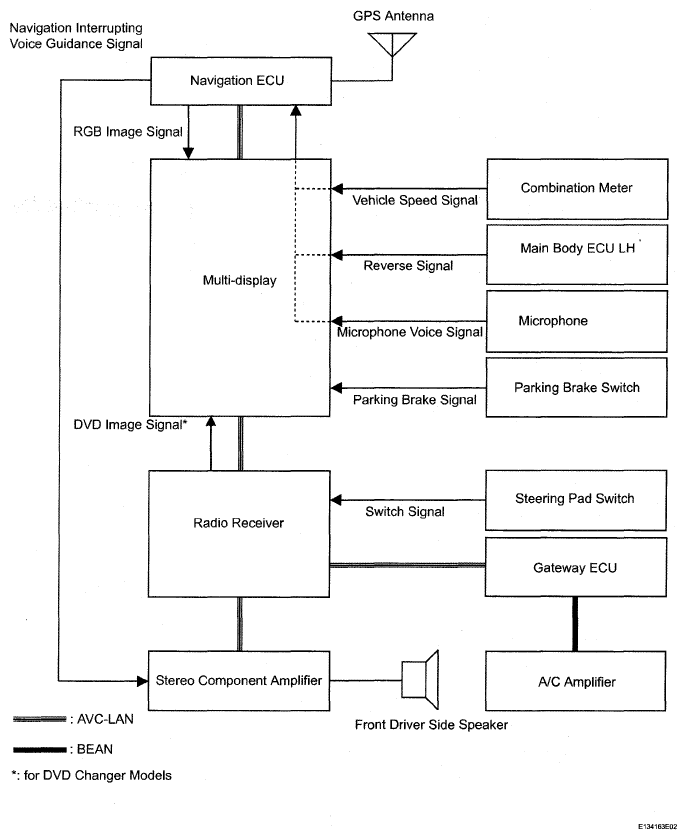

Fig 1: Navigation System Diagram
G05299687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
