Key Lock-in Prevention Function does not Work Properly: Wiring Diagram

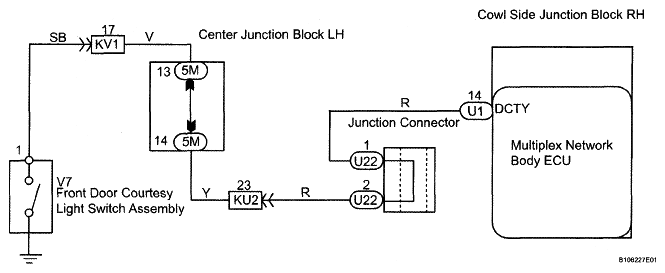

Fig 1: Front Door Courtesy Light Switch Assembly - Wiring Diagram
G05299190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
