Fuel Lid Opener: Notes

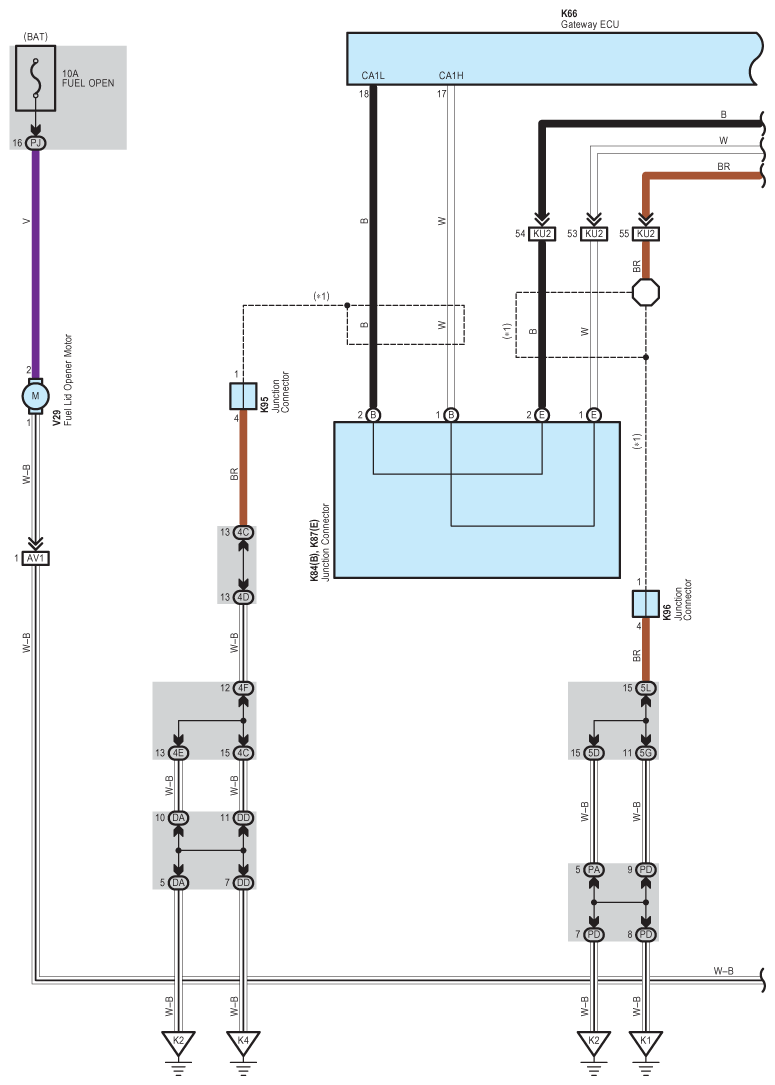

Fig 1: Fuel Lid Opener Wiring Diagram (1 Of 3)
G08919668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

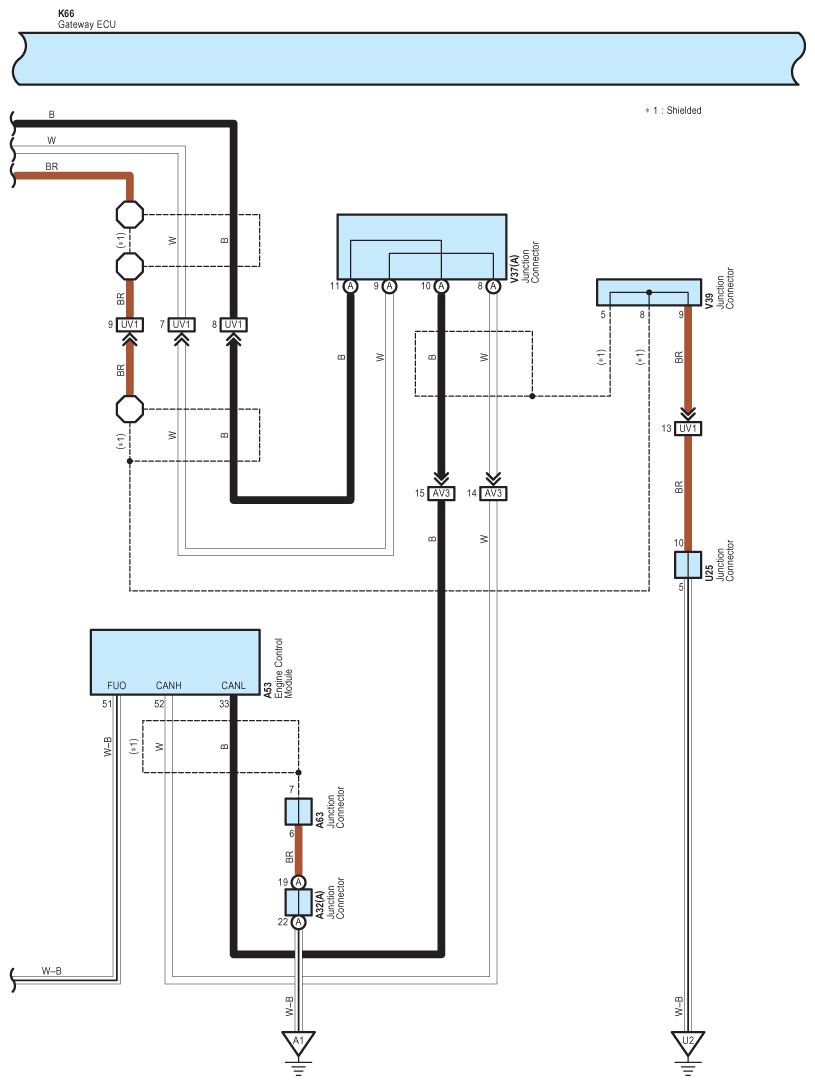

Fig 2: Fuel Lid Opener Wiring Diagram (2 Of 3)
G08919669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

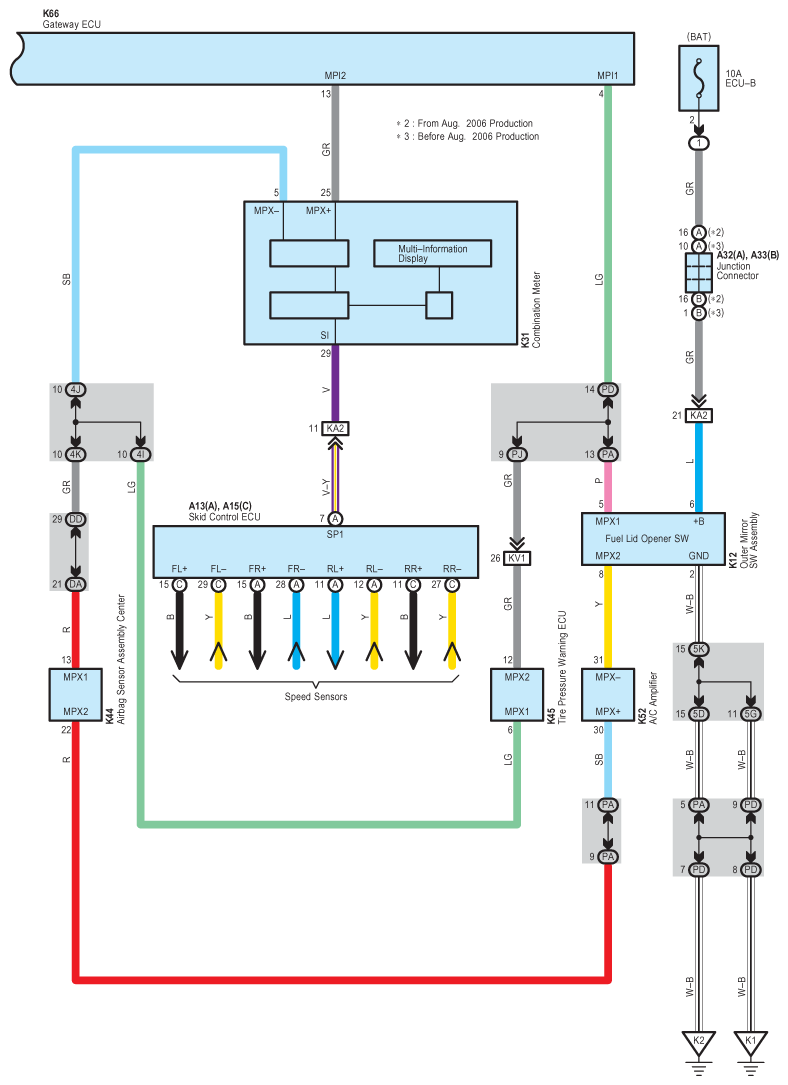

Fig 3: Fuel Lid Opener Wiring Diagram (3 Of 3)
G08919670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
