Battery Fuse: Components

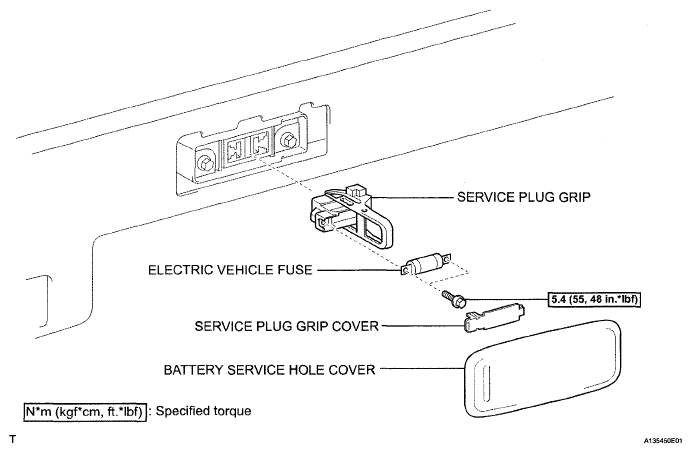

Fig 1: Battery Fuse Replacement Components With Torque Specifications
G05304977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
