Battery Smart Unit: Components

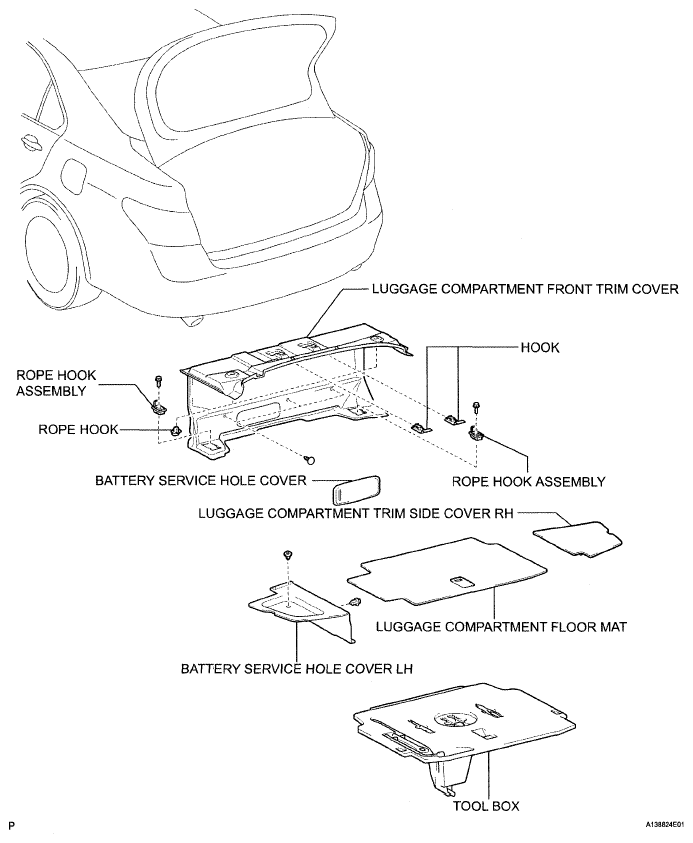

Fig 1: Identifying Battery Smart Unit Components (1 Of 2)
G05304955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

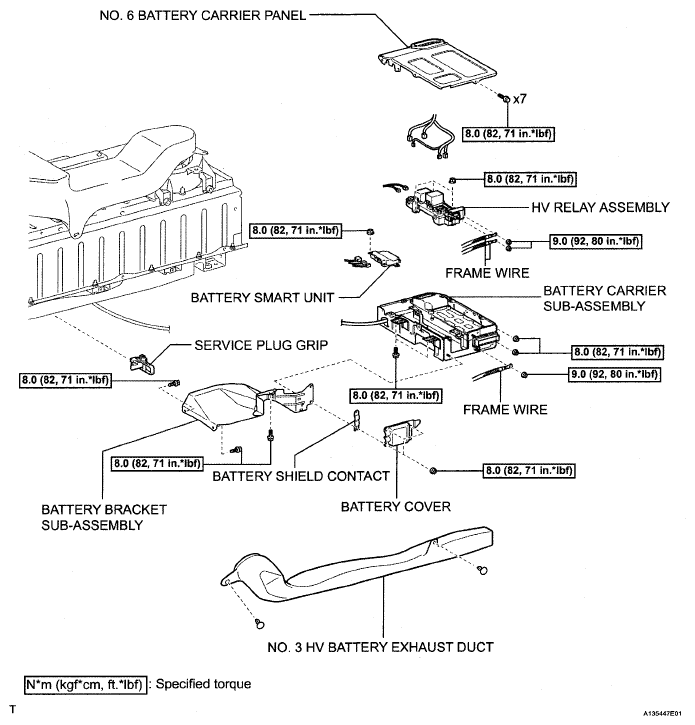

Fig 2: Battery Smart Unit Components With Torque Specifications (2 Of 2)
G05304956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
