System Diagram

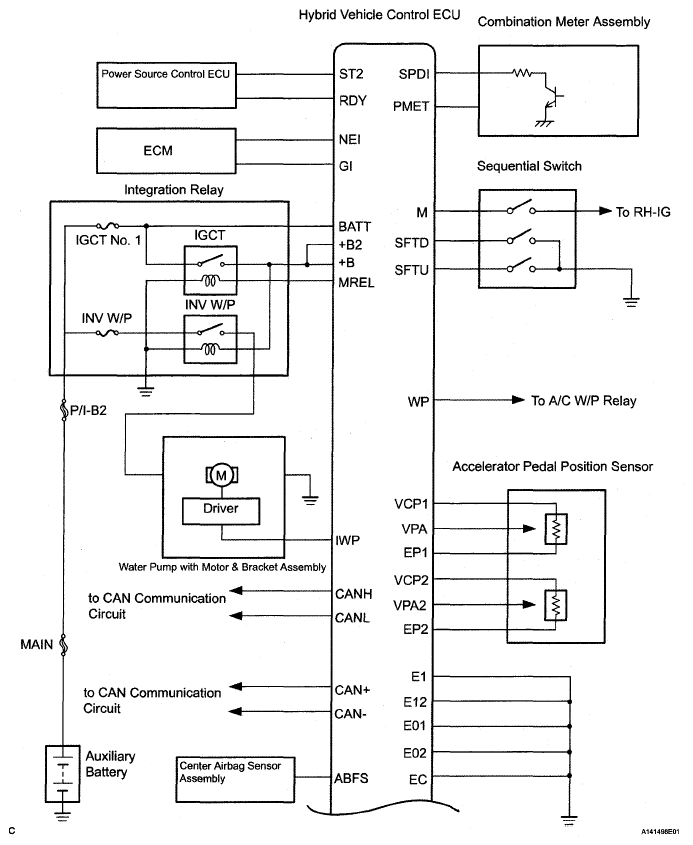

Fig 1: Hybrid Control System - System Diagram (1 Of 4)
G05303680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

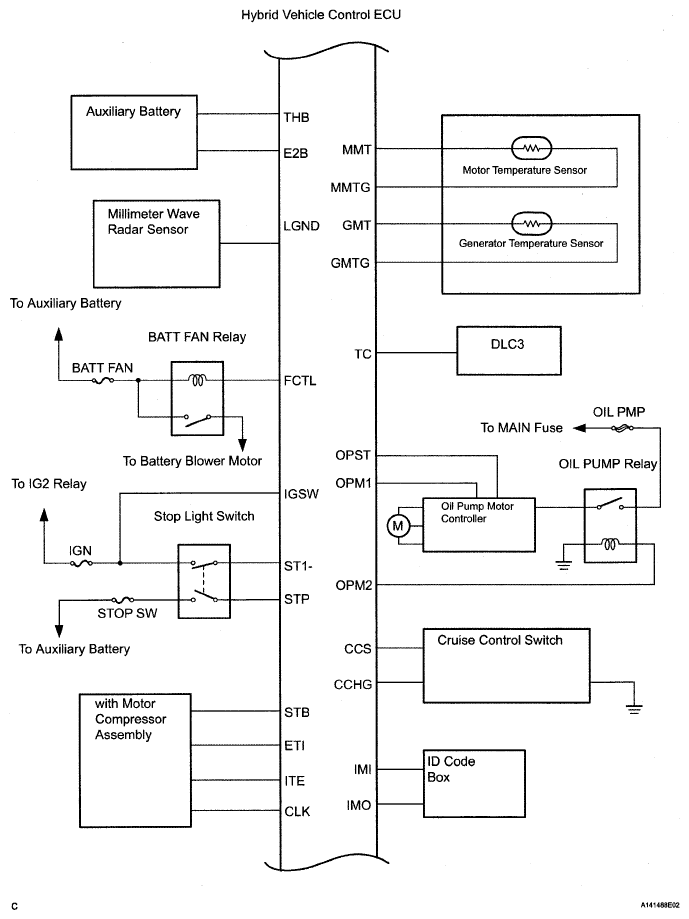

Fig 2: Hybrid Control System - System Diagram (2 Of 4)
G05303681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

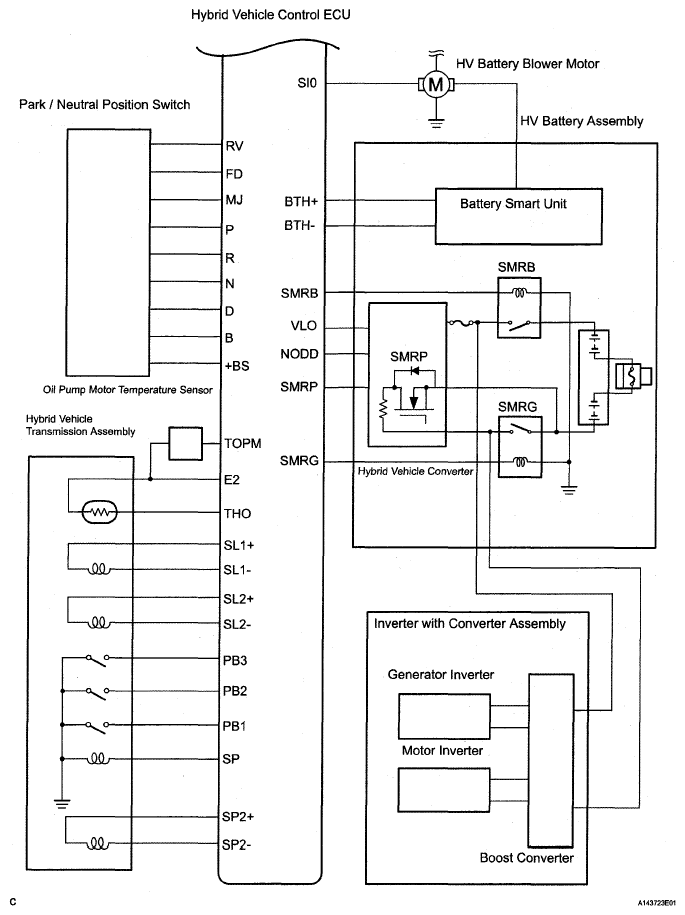

Fig 3: Hybrid Control System - System Diagram (3 Of 4)
G05303682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

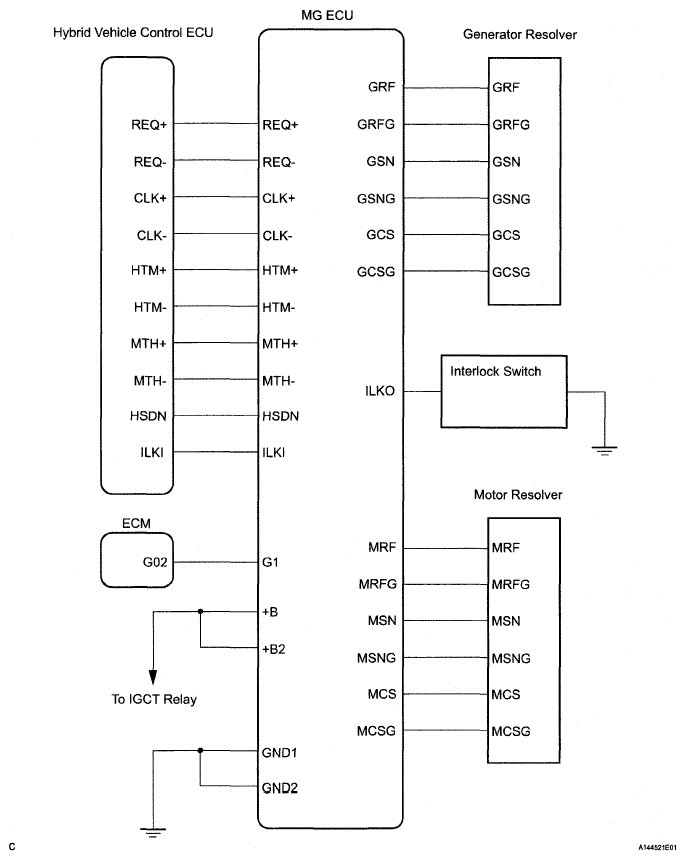

Fig 4: Hybrid Control System - System Diagram (4 Of 4)
G05303683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
