Cooling System (Mechanical): Cooling: Radiator: Components

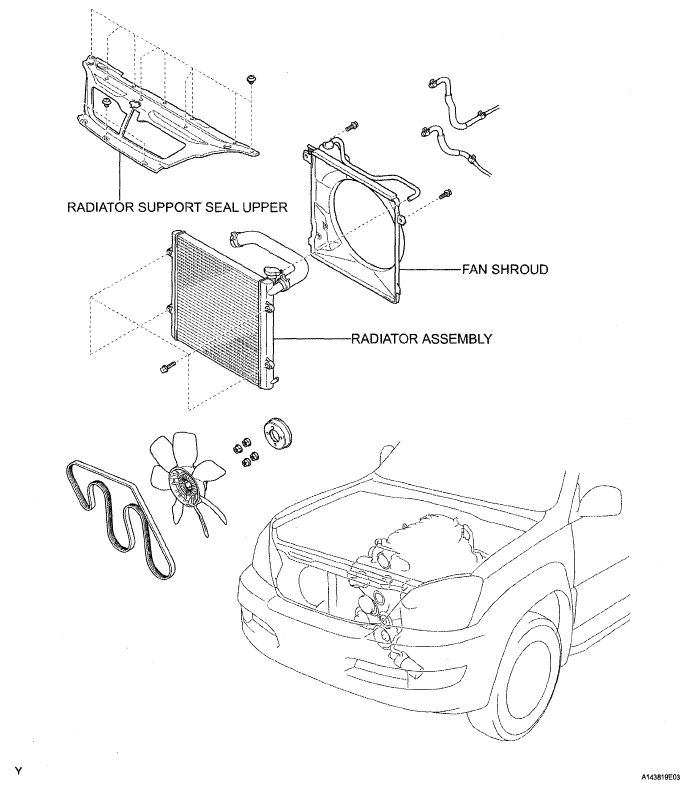

Fig 1: Identifying Radiator Components
G05265001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
