Parts Location

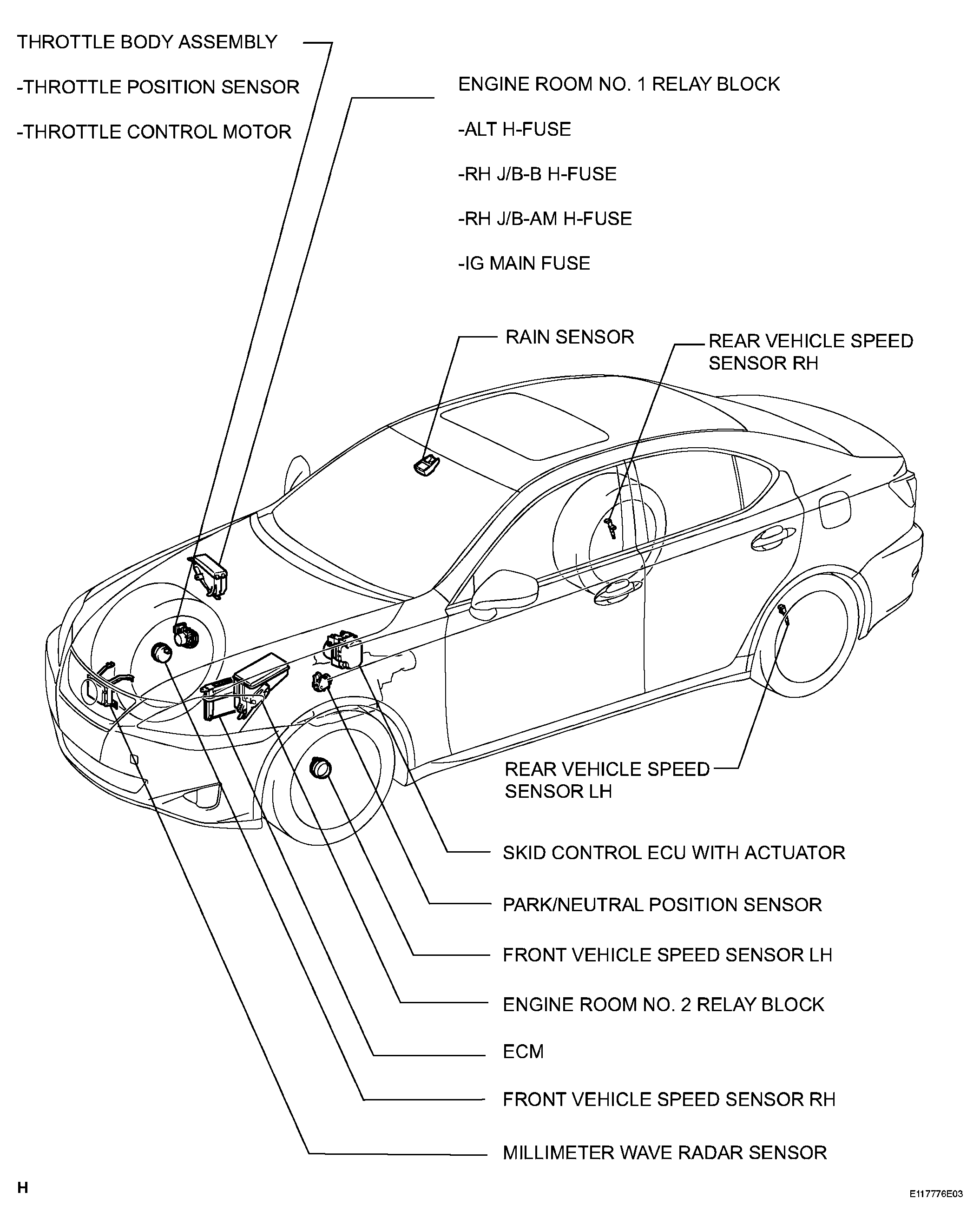

Fig 1: Identifying Dynamic Radar Cruise Control System Parts Location (1 Of 4)
G04049218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

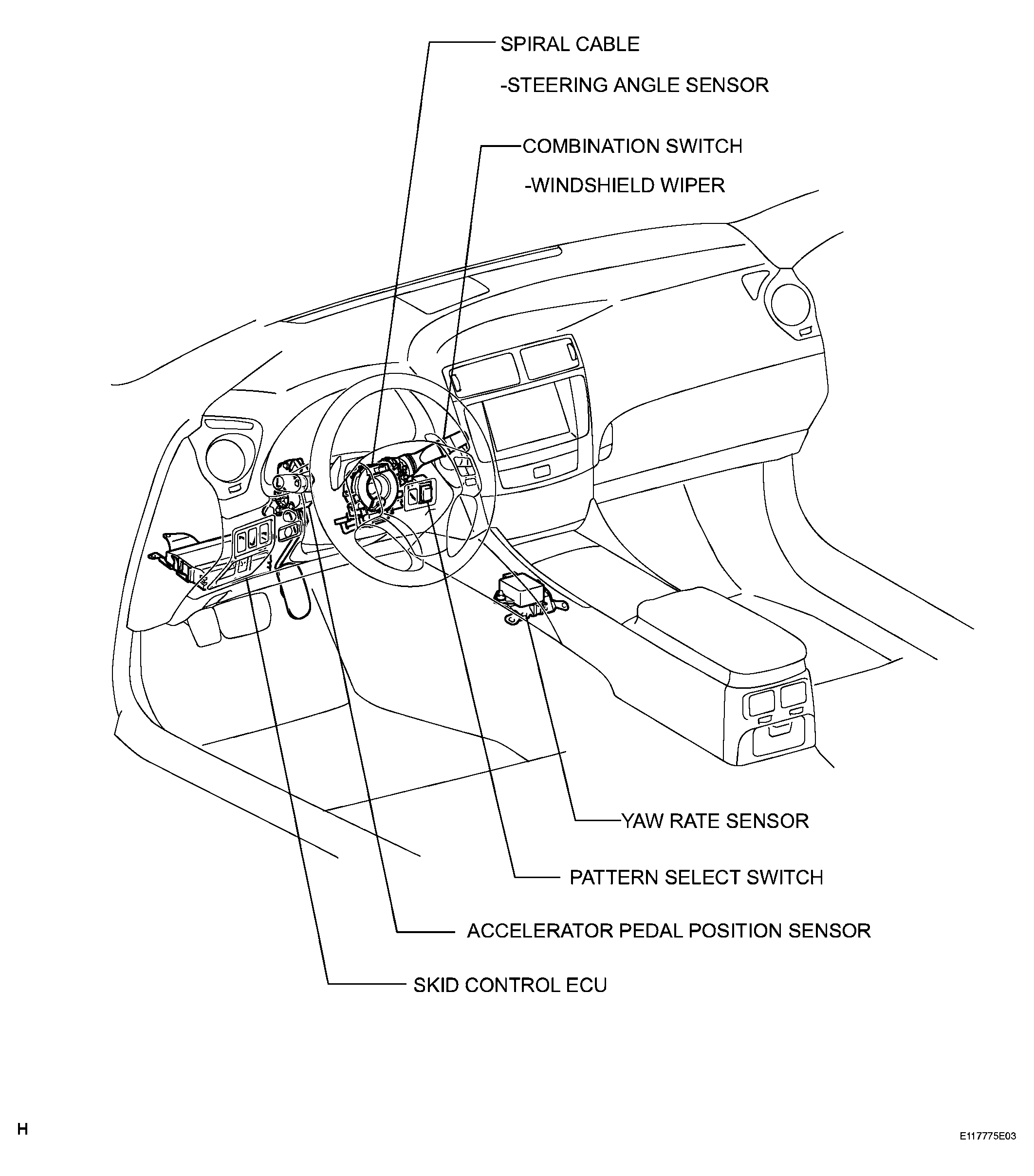

Fig 2: Identifying Dynamic Radar Cruise Control System Parts Location (2 Of 4)
G04049219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Dynamic Radar Cruise Control System Parts Location (3 Of 4)
G04049220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Dynamic Radar Cruise Control System Parts Location (4 Of 4)
G04049221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
