Transmission Wire: Components

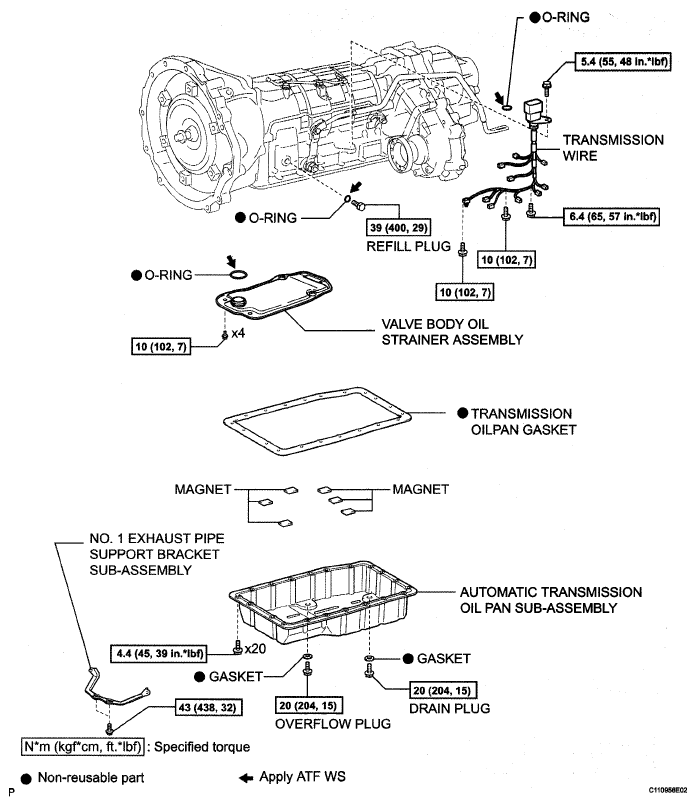

Fig 1: Transmission Wire Replacement Components With Torque Specifications
G05317561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
