Terminals Of Ecu

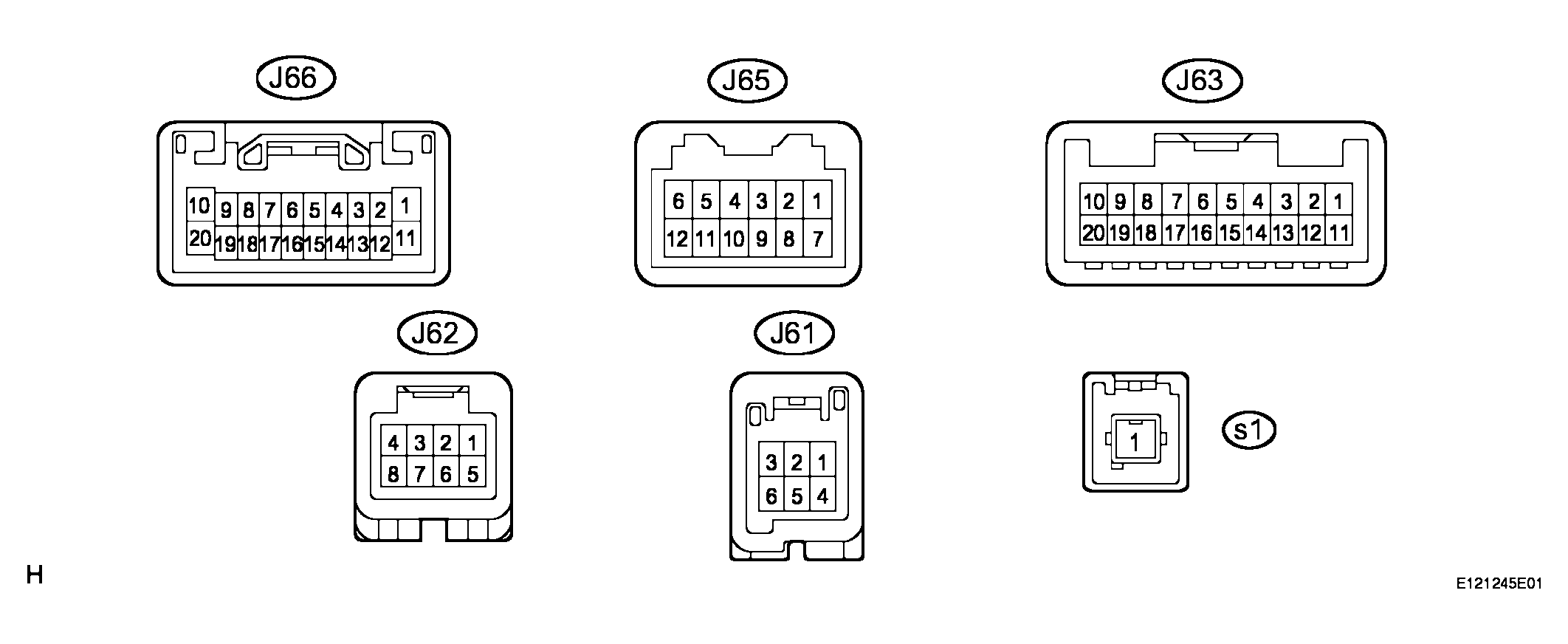

- RADIO RECEIVER
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
WIRING COLOR AND TERMINAL DESCRIPTIONSymbols (Terminal No.) Wiring Color Terminal Description Condition Specification B(J66-1) - GND(J66-20) G - W-B Battery Always 10 to 14 V ILL+ (J66-2) - GND (J66-20) G - W-B Illumination signal Light control switch OFF Below 1 V ILL+ (J66-2) - GND (J66-20) G - W-B Illumination signal Light control switch TAIL 10 to 14 V ATX+ (J66-5) - GND (J66-20) V - W-B AVC-LAN communication signal Turn engine switch on (ACC) 2 to 3 V MUTE (J66-7) - GND (J66-20) BR - W-B Mute signal Audio system is playing Above 3.5 V MUTE (J66-7) - GND (J66-20) BR - W-B Mute signal Audio system is changing Below 1 V R+ (J66-8) - GND (J66-20) R - W-B Sound signal (Right) Audio system is playing A waveform synchronized with sounds is output L+ (J66-9) - GND (J66-20) B - W-B Sound signal (Left) Audio system is playing A waveform synchronized with sounds is output SLD (J66-10) - Body ground Shielded - Body ground Shielded ground Always Below 1 V ACC (J66-11) - GND (J66-20) O - W-B Accessory (ON) Turn engine switch off Below 1 V ACC (J66-11) - GND (J66-20) O - W-B Accessory (ON) Turn engine switch on (ACC) 10 to 14 V ILL-(J66-12) - GND(J66-20) W - W-B Illumination signal Light control switch OFF Below 1 V ILL-(J66-12) - GND(J66-20) W - W-B Illumination signal Light control switch TAIL 10 to 14 V ANT (J66-13) - GND (J66-20) Y - W-B Power source of antenna Radio switch ON and AM or FM 10 to 14 V ATX- (J66-15) - GND (J66-20) P - W-B AVC-LAN communication signal Turn engine switch on (ACC) 2 to 3 V R-(J66-18) - GND(J66-20) G - W-B Sound signal (Right) Audio system is playing A waveform synchronized with sounds is output L-(J66-19) - GND(J66-20) W - W-B Sound signal (Left) Audio system is playing A waveform synchronized with sounds is output GND (J66-20) - Body ground W - B - Body ground Ground Always Below 1 V SWG (J63-6) - GND (J66-20) GR - W-B Steering pad switch ground Always Below 1 V SW1 (J63-7) - GND (J66-20) SB - W-B Steering pad switch signal Steering pad switch not operated 4 V or more SW1 (J63-7) - GND (J66-20) SB - W-B Steering pad switch signal SEEK+ switch pushed Approx. 0.5 V SW1 (J63-7) - GND (J66-20) SB - W-B Steering pad switch signal SEEK- switch pushed Approx. 0.9 V SW1 (J63-7) - GND (J66-20) SB - W-B Steering pad switch signal VOL+ switch pushed Approx. 2.0 V SW1 (J63-7) - GND (J66-20) SB - W-B Steering pad switch signal VOL- switch pushed Approx. 3.4 V SW2 (J63-8) - GND (J66-20) L - W-B Steering pad switch signal Steering pad switch not operated 4 V or more SW2 (J63-8) - GND (J66-20) L - W-B Steering pad switch signal MODE switch pushed Approx. 0.5 V SW2 (J63-8) - GND (J66-20) (1) L - W-B Steering pad switch signal ON HOOK switch pushed Approx. 0.9 V SW2 (J63-8) - GND (J66-20) (1) L - W-B Steering pad switch signal OFF HOOK switch pushed Approx. 2.0 V SW2 (J63-8) - GND (J66-20) (1) L - W-B Steering pad switch signal VOICE switch pushed Approx. 3.4 V TX+ (J63-9) - GND (J66-20) (4) SB - W-B AVC-LAN communication signal Turn engine switch on (ACC) 2 to 3 V TX- (J63-10) - GND (J66-20) (4) O - W-B AVC-LAN communication signal Turn engine switch on (ACC) 2 to 3 V TX+ (J63-9) - GND (J66-20) (1) P - W-B AVC-LAN communication signal Turn engine switch on (ACC) 2 to 3 V TX- (J63-10) - GND (J66-20) (1) LG - W-B AVC-LAN communication signal Turn engine switch on (ACC) 2 to 3 V AR1 (J63-15) - GND (J66-20) (2) R - W-B Sound signal (Right) External device is playing (When stereo jack adapter is used) A waveform synchronized with sounds is output ASGN (J63-16) - GND (J66-20) (2) B - W-B Ground Always Below 1 V AL1 (J63-17) - GND (J66-20) (2) G - W-B Sound signal (Left) External device is playing (When stereo jack adapter is used) A waveform synchronized with sounds is output AUX1 (J63-19) - GND (J66-20) (2) L - W-B External device connection detection signal External device is connected Below 1 V AR1 (J61-2) - GND (J66-20) (3) R - W-B Sound signal (Right) External device is playing (When stereo jack adapter is used) A waveform synchronized with sounds is output ASGN (J61-5) - GND (J66-20) (3) B - W-B Ground Always Below 1 V AL1 (J61-3) - GND (J66-20) (3) G - W-B Sound signal (Left) External device is playing (When stereo jack adapter is used) A waveform synchronized with sounds is output AUX1 (J61-6) - GND (J66-20) (3) L - W-B External device connection detection signal External device is connected Below 1 V NTSC (J62-1) - GND (J66-20) (*1,*3) R - W-B DVD image signal DVD played on multi-display Pulse generation Refer to waveform 1 GND (J62-2) - Body ground (*1, *3) G - Body ground Ground Always Below 1 V SLD (J62-3) - Body ground (*1, *3) Shielded - Body ground Shielded - Body ground Always Below 1 V TXM+ (J65-9) - GND (J66-20) (4) BR - W-B AVC-LAN communication signal Turn engine switch on (ACC) 2 to 3 V TXM- (J65-10) - GND (J66-20) (4) R - W-B AVC-LAN communication signal Turn engine switch on (ACC) 2 to 3 V DVD (s1-1) - GND (J66-20) (3) B - W-B Digital sound signal DVD played on multi-display Pulse generation (1) with Navigation System (2) for CD Changer Models (3) for DVD Changer Models (4) without Navigation Systems - Reference: waveform 1
HINT:
- Terminal: NTSC - Body ground
- Setting: 200 mV/DIV, 10 s/DIV
- Condition: DVD display is ON.
- Reference: waveform 1
- INTEGRATION CONTROL & PANEL ASSEMBLY (WITHOUT NAVIGATION SYSTEM)
Fig 3: Identifying Integration Control & Panel Assembly (Without Navigation System) Connector Terminal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

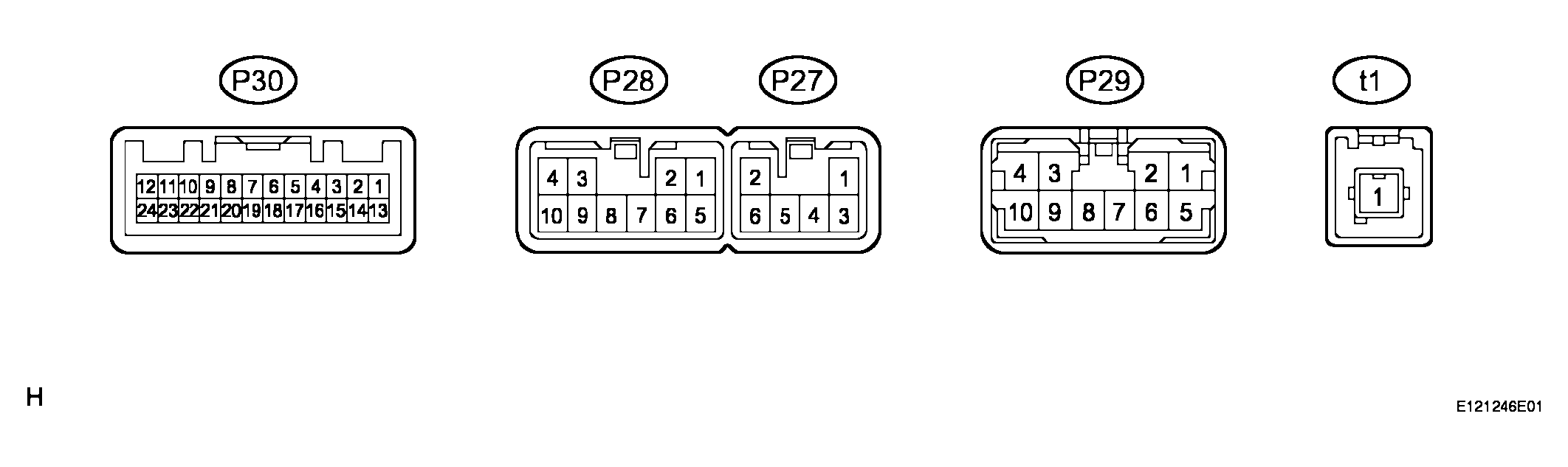

WIRING COLOR AND TERMINAL DESCRIPTIONSymbols (Terminal No.) Wiring Color Terminal Description Condition Specification TX-(J54-1) - E(J54-8) R - W-B AVC-LAN communication signal Turn engine switch on (ACC) 2 to 3 V TX+ (J54-2) - E (J54-8) BR - W-B AVC-LAN communication signal Turn engine switch on (ACC) 2 to 3 V IG+ (J54-4) - E (J54-8) B - W-B Ignition switch (ON) Turn engine switch on (IG) 10 to 14 V IG+ (J54-4) - E (J54-8) B - W-B Ignition switch (OFF) Turn engine switch off Below 1 V ACC (J54-5) - E (J54-8) O - W-B Accessory (OFF) Turn engine switch off Below 1 V ACC (J54-5) - E (J54-8) O - W-B Accessory (ON) Turn engine switch on (ACC) 10 to 14 V E (J54-8) - Body ground W - B - Body ground Ground Always Below 1 V B (J54-14) - E (J54-8) LG - W-B Battery Always 10 to 14 V - STEREO COMPONENT AMPLIFIER
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
WIRING COLOR AND TERMINAL DESCRIPTIONSymbols (Terminal No.) Wiring Color Terminal Description Condition Specification +B (P27-1) - GND(P27-2) R - W-B Battery Always 10 to 14 V GND (P27-2) - Body ground W - B - Body ground Ground Always Below 1 V +B2 (P27-3) - GND (P27-2) O - W-B Battery Always 10 to 14 V GND2 (P27-6) - Body ground W - B - Body ground Ground Always Below 1 V WF1+ (P28-1) - GND (P27-2) BR - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output WF2+ (P28-2) - GND (P27-2) (1) P - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output SR+ (P28-2) - GND (P27-2) (2) SB - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output MR+ (P28-3) - GND (P27-2) (1) SB - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output CTR+ (P28-3) - GND (P27-2) (2) Y - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output WFL+ (P28-4) - GND (P27-2) W - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output WF1- (P28-5) - GND (P27-2) LG - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output WF2- (P28-6) - GND (P27-2) (1) SB - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output SR- (P28-6) - GND (P27-2) (2) R - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output ML- (P28-7) - GND (P27-2) (1) L - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output SL- (P28-7) - GND (P27-2) (2) L - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output ML+ (P28-8) - GND (P27-2) (1) LG - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output SL+ (P28-8) - GND (P27-2) (2) LG - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output MR- (P28-9) - GND (P27-2) (1) R - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output CTR- (P28-9) - GND (P27-2) (2) B - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output WFL- (P28-10) - GND (P27-2) R - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output WFR+ (P29-1) - GND (P27-2) BR - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output FL+ (P29-2) - GND (P27-2) SB - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output RL+ (P29-3) - GND (P27-2) P - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output RR+ (P29-4) - GND (P27-2) R - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output WFR- (P29-5) - GND (P27-2) P - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output FL- (P29-6) - GND (P27-2) O - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output FR- (P29-7) - GND (P27-2) GR - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output FR+ (P29-8) - GND (P27-2) B - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output RL- (P29-9) - GND (P27-2) V - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output RR- (P29-10) - GND (P27-2) W - W-B Sound signal Audio system is playing A waveform synchronized with sounds is output MUTE (P30-1) - GND (P27-2) SB - W-B Mute signal Audio system is playing Above 3.5 V MUTE (P30-1) - GND (P27-2) SB - W-B Mute signal Audio system is changing Below 1 V L- (P30-2) - GND (P27-2) W - W-B Sound signal (Left) Audio system is playing A waveform synchronized with sounds is output L+ (P30-3) - GND (P27-2) B - W-B Sound signal (Left) Audio system is playing A waveform synchronized with sounds is output R- (P30-4) - GND (P27-2) G - W-B Sound signal (Right) Audio system is playing A waveform synchronized with sounds is output R+ (P30-5) - GND (P27-2) R - W-B Sound signal (Right) Audio system is playing A waveform synchronized with sounds is output SLD (P30-6) - Body ground Shielded - Body ground Shielded ground Always Below 1 V TX- (P30-7) - GND (P27-2) V - W-B AVC-LAN communication signal Turn engine switch on (ACC) 2 to 3 V TX+ (P30-8) - GND (P27-2) O - W-B AVC-LAN communication signal Turn engine switch on (ACC) 2 to 3 V SPD (P30-11) - GND(P27-2) L - W-B Speed signal Turn engine switch on (IG), drive wheels are turned slowly Pulse generation ACC (P30-12) - GND (P27-2) O - W-B Accessory (ON) Turn engine switch off Below 1 V ACC (P30-12) - GND (P27-2) O - W-B Accessory (ON) Turn engine switch on (ACC) 10 to 14 V II1- (P30-14) - GND (P27-2) (3) BR - W-B Voice guidance signal Voice guidance is provided A waveform synchronized with sounds is output II1+ (P30-15) - GND (P27-2) (3) Y - W-B Voice guidance signal Voice guidance is provided A waveform synchronized with sounds is output DVD (t1-1) - GND (P27-2) (4) B - W-B Digital sound signal DVD played on multi-display Pulse generation (1) without Front Center Speaker (2) with Front Center Speaker (3) with Navigation System (4) for DVD Changer Models - GATEWAY ECU (See TERMINALS OF ECU )
