Audio / Visual: Microphone: Installation

  1. INSTALL AMPLIFIER MICROPHONE
    1. Engage the 2 claws and install the amplifier microphone.

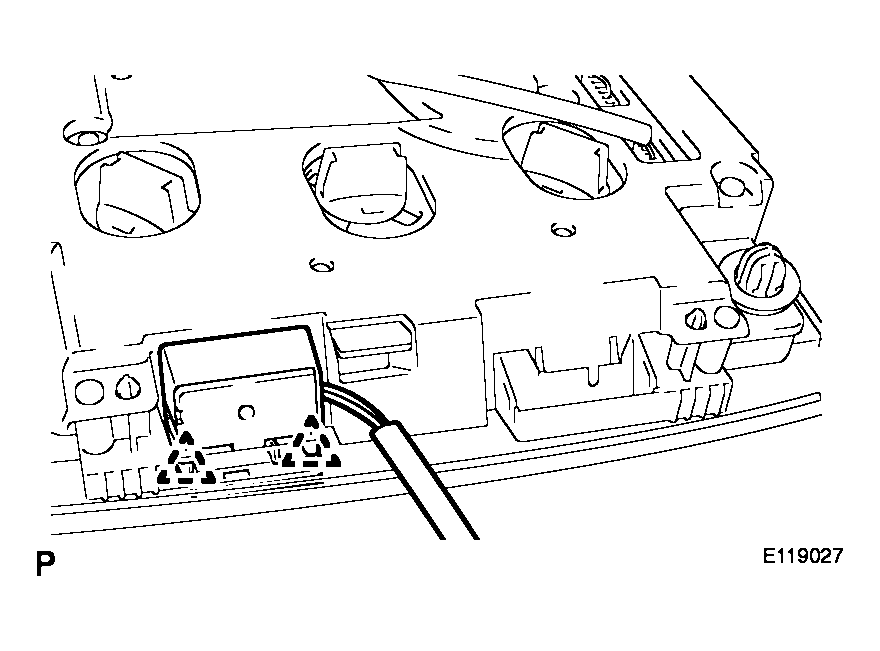

      Fig 1: Identifying Amplifier Microphone And Engaging Claws
      G04050286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.
  2. INSTALL MAP LIGHT ASSEMBLY (w/o Sliding Roof) (See  INSTALLATION  )
  3. INSTALL MAP LIGHT ASSEMBLY (w/ Sliding Roof) (See  INSTALLATION  )

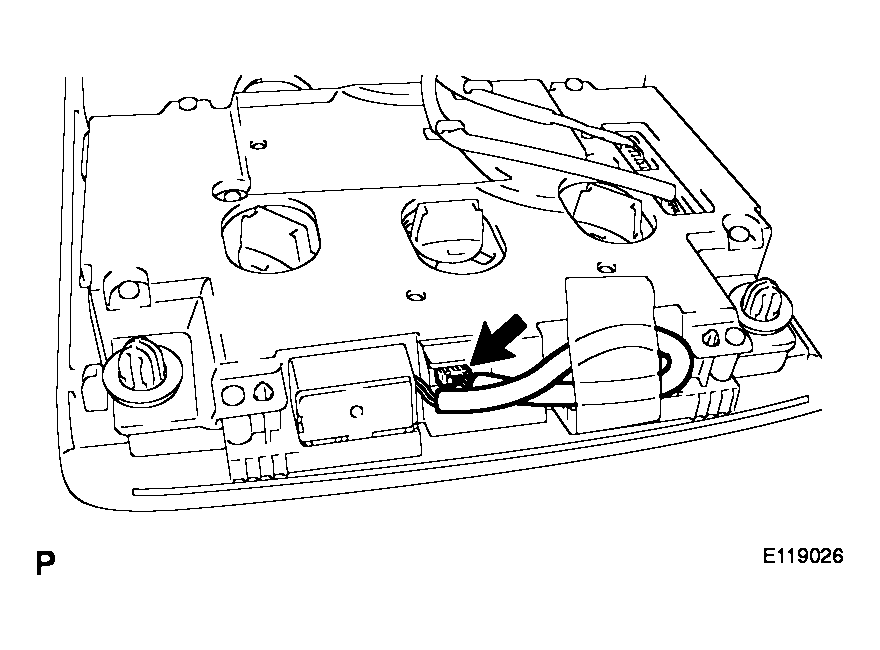

    Fig 2: Identifying Connector
    G04050287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
