Home >> Lexus >> 2007 >> IS 350 >> Repair and Diagnosis >> Accessories & Equipment >> Headlights >> Lighting >> High Intensity Discharge Headlight Bulb >> Components
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

High Intensity Discharge Headlight Bulb: Components

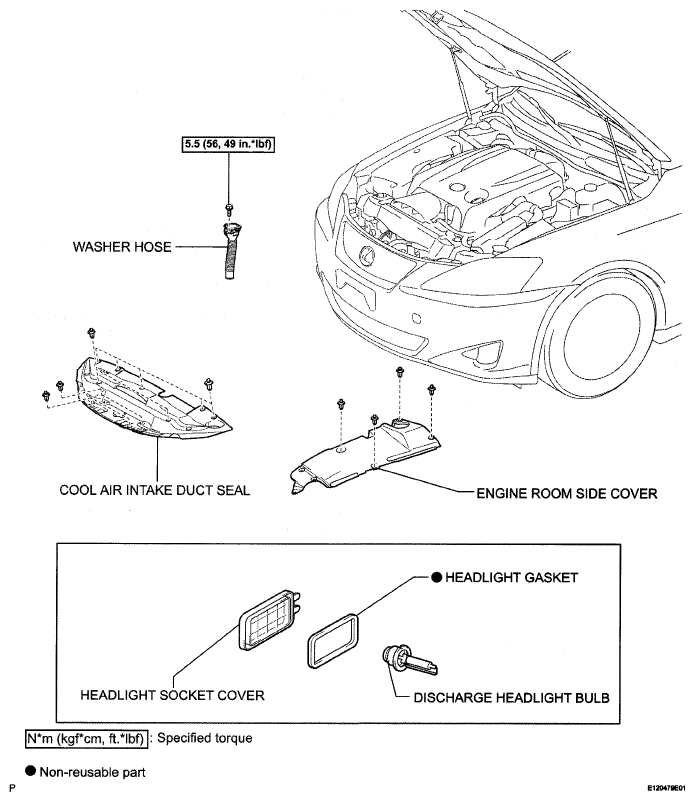

Fig 1: High Intensity Discharge Headlight Bulb Replacement Components With Torque Specifications
G05320448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
