Light Control Switch Circuit: Wiring Diagram

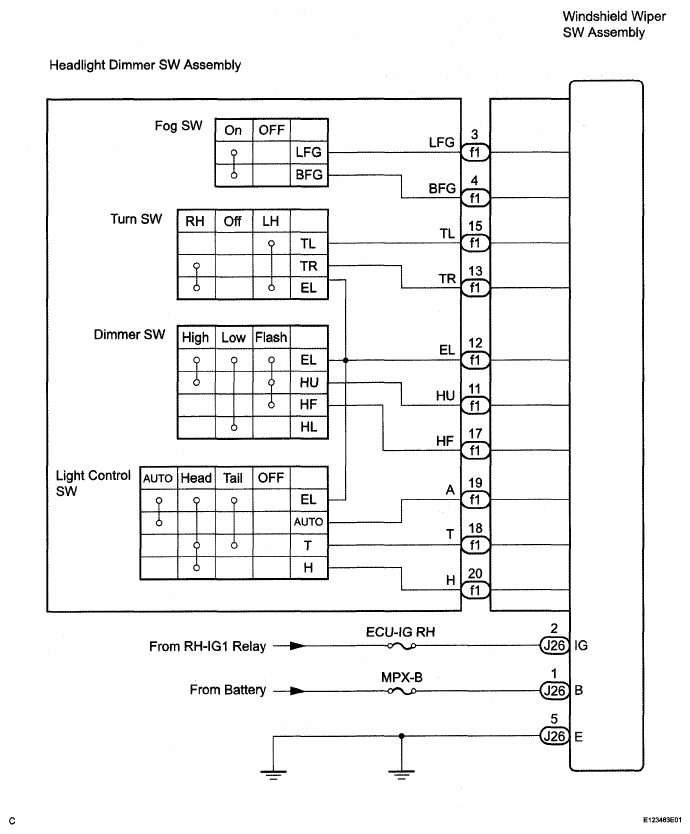

Fig 1: Light Control Switch - Wiring Diagram
G05320360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
