Parts Location

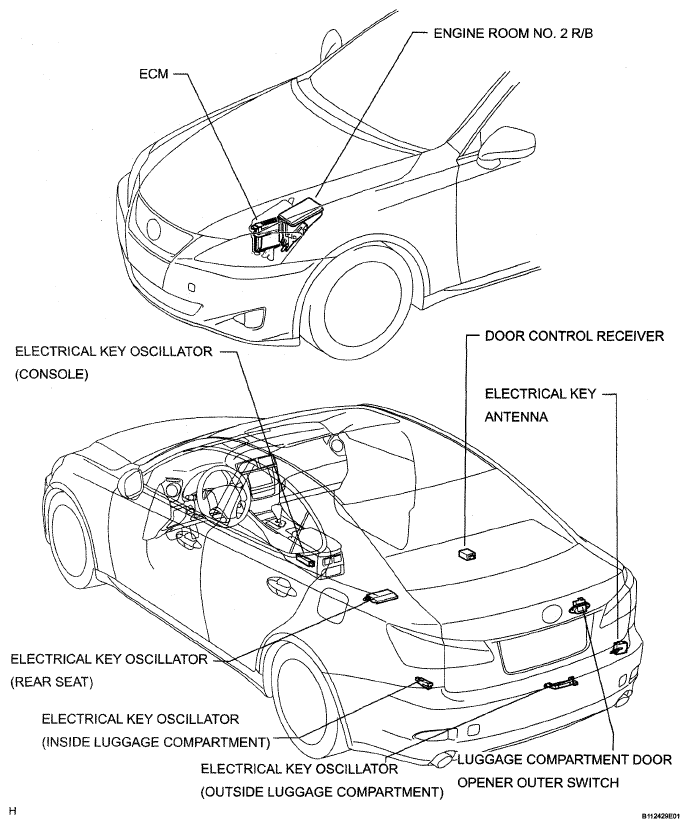

Fig 1: Identifying Smart Access System With Push-Button Start Part Location (1 Of 3)
G05320653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

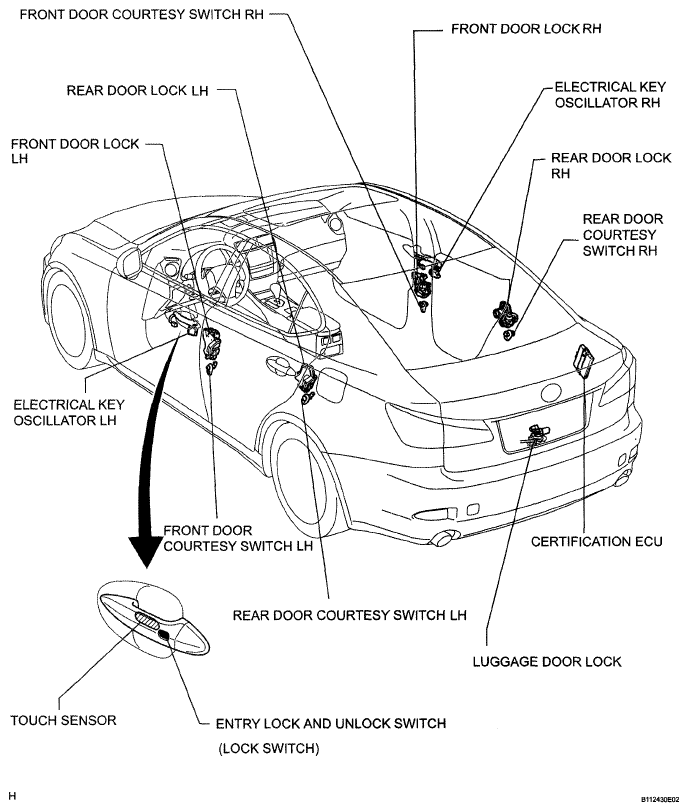

Fig 2: Identifying Smart Access System With Push-Button Start Part Location (2 Of 3)
G05320654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

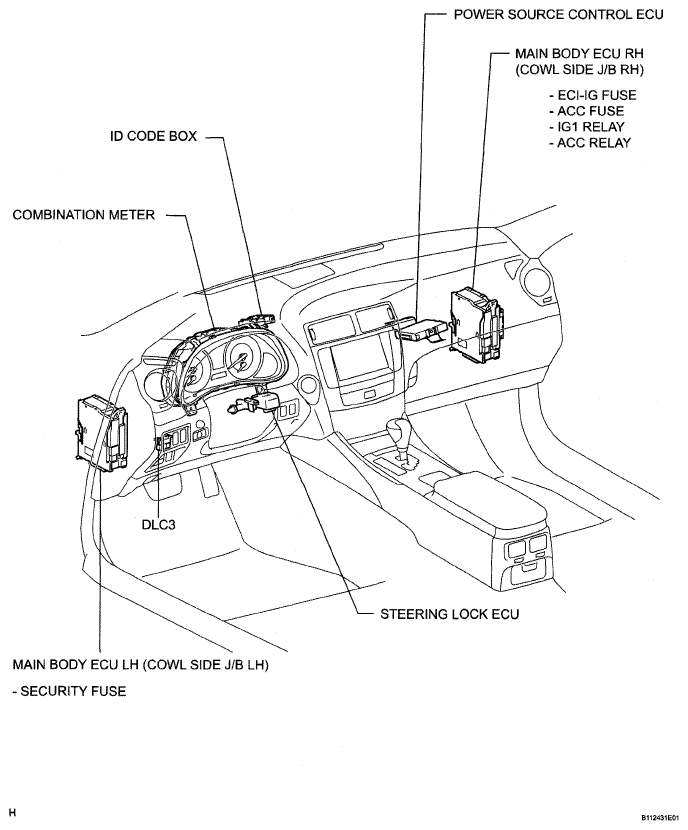

Fig 3: Identifying Smart Access System With Push-Button Start Part Location (3 Of 3)
G05320655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
