Inspection Procedure
- CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU - ELECTRICAL KEY OSCILLATOR)
- Disconnect the P33 ECU connector.
- Disconnect the oscillator connectors.
Standard resistance

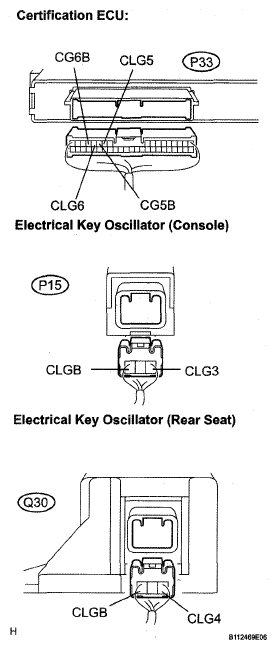

CERTIFICATION ECU - ELECTRICAL KEY OSCILLATORTester Connection (Symbols) Condition Specified Condition P33-12 (CG5B) - P15-3 (CLGB) Always Below 1 Ω P33-11 (CLG5) - P15-1 (CLG3) Always Below 1 Ω P33-14 (CG6B) - Q30-3 (CLGB) Always Below 1 Ω P33-13 (CLG6) - Q30-1 (CLG4) Always Below 1 Ω P33-12 (CG5B) - Body ground Always 10 kΩ or higher P33-11 (CLG5) - Body ground Always 10 kΩ or higher P33-14 (CG6B) - Body ground Always 10 kΩ or higher P33-13 (CLG6) - Body ground Always 10 kΩ or higher
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- CHECK AND REPLACE ELECTRICAL KEY OSCILLATOR
- Replace the electrical key oscillator.
- Check that the entry LOCK/UNLOCK function operates normally.
OK:
Entry LOCK/UNLOCK function operates normally.
OK: END (ELECTRICAL KEY OSCILLATOR IS DEFECTIVE)
NG: Go to next step
- PERFORM ACTIVE TEST BY INTELLIGENT TESTER (CERTIFICATION ECU OUTPUT SIGNAL)
- Reconnect the oscillator and the ECU connectors.
- Connect the intelligent tester to the DLC3.
- Turn the engine switch on (IG).
- Following the display on the tester, select the "ACTIVE TEST".
SMART KEY (Certification ECU):
SMART KEY (CERTIFICATION ECU) CHARTItem Vehicle Condition/Test Details Fr TRANSMITTER Electrical key Oscillator (console) ON/OFF Rr TRANSMITTER Electrical key Oscillator (rear seat) ON/OFF - Measure the frequency according to the value(s) in the table below.
Standard
SMART KEY (CERTIFICATION ECU)Tester Connection (Symbols) Condition Specified Condition P33-12 (CG5B) - P33-11 (CLG5) During ACTIVE TEST Frequency is generated (higher than 0 Hz) P33-14(CG6B)-P33-13 (CLG6) During ACTIVE TEST Frequency is generated (higher than 0 Hz)
NG: REPLACE CERTIFICATION ECU
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
