Center Power Outlet Socket: Removal

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission) (See  REMOVAL  )
  2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission) (See  REMOVAL  )
  3. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission) (See  REMOVAL  )
  4. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission) (See  REMOVAL  )
  5. REMOVE CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission) (See  REMOVAL  )
  6. REMOVE REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) (See  REMOVAL  )
  7. REMOVE FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) (See  REMOVAL  )
  8. REMOVE FRONT ASH RECEPTACLE SUB-ASSEMBLY (See  REMOVAL  )
  9. REMOVE CONSOLE BOX REGISTER ASSEMBLY (See  REMOVAL  )
  10. REMOVE CONSOLE BOX (See  REMOVAL  )
  11. REMOVE POWER OUTLET SOCKET ASSEMBLY
    1. Rotate the socket to disengage the notch.
      Fig 1: Removing Power Outlet Socket Assembly
      G04050698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull out the socket halfway and rotate the socket until its protrusion is aligned with the groove of the cover.
    3. Remove the socket from the cover.

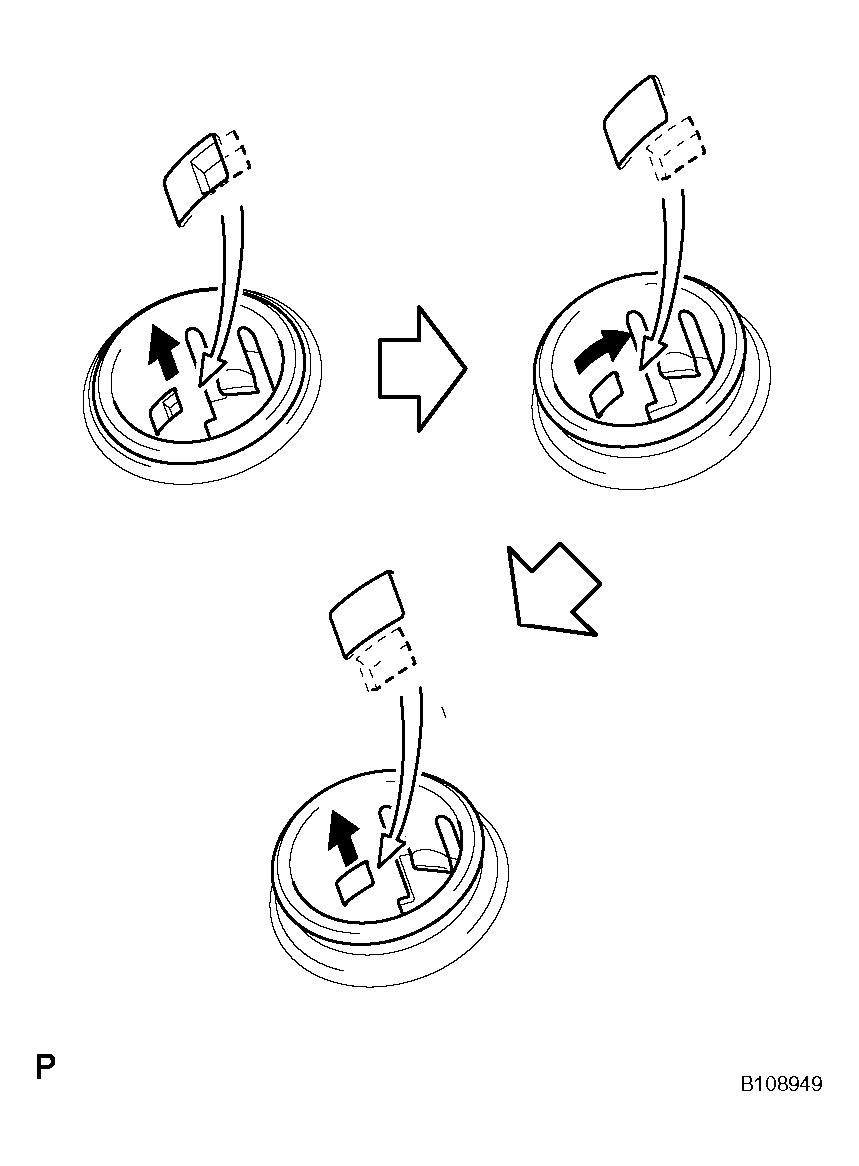

    Fig 2: Removing Socket From Cover
    G04050699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
