Charging (2GR-FSE): Generator: Disassembly

REMOVE CLUTCH PULLEY
1. Using a screwdriver, remove the generator pulley cap.

  Fig 1: Identifying Generator Pulley Cap
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Set SST (A) and (B).
  SST 09820-63020
3. Clamp SST (A) in a vise.

  Fig 2: Setting SST (A) And (B)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

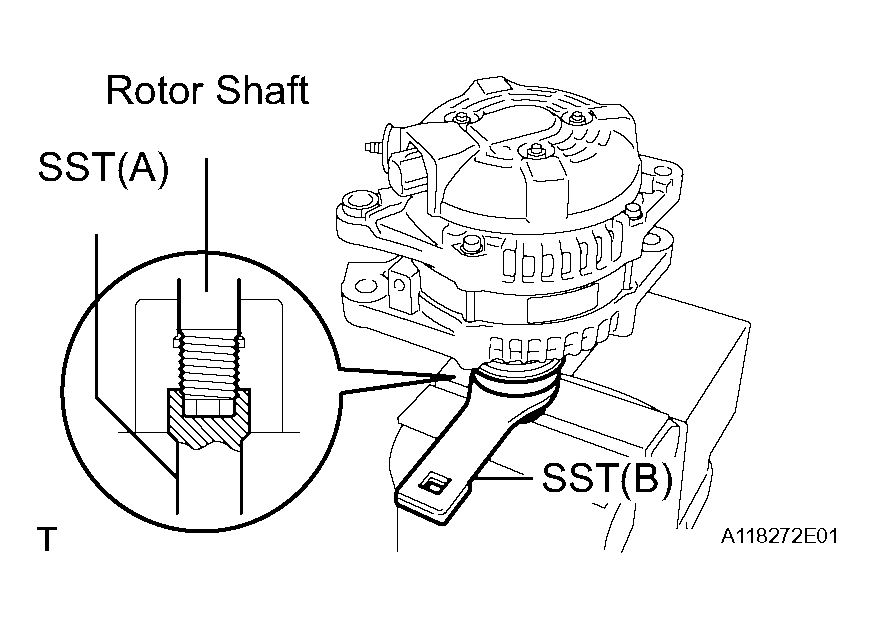

4. Place the rotor shaft end into SST (A).

  Fig 3: Placing Rotor Shaft End Into SST (A)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

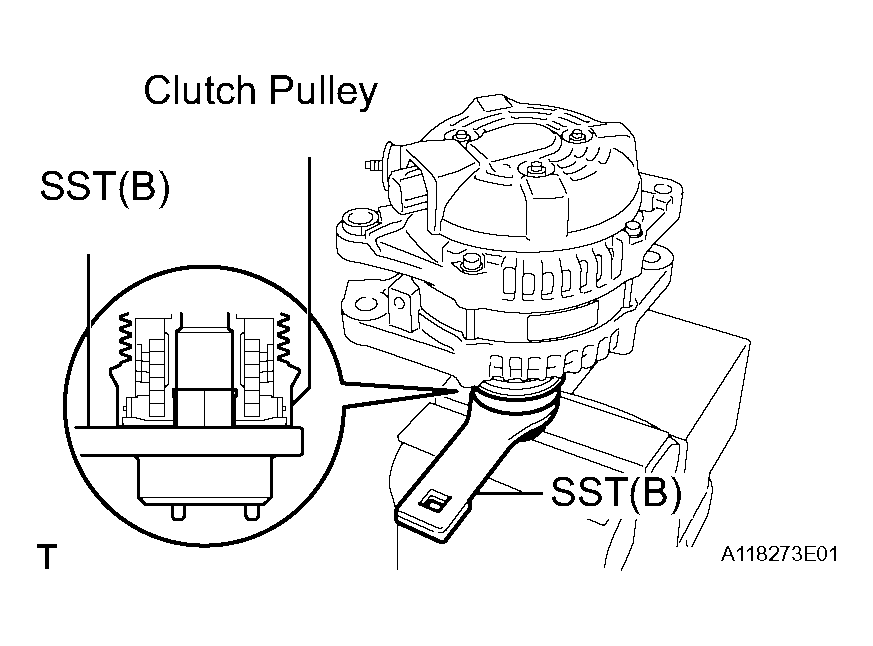

5. Fit SST (B) to the clutch pulley.

  Fig 4: Fitting SST (B) To Clutch Pulley
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

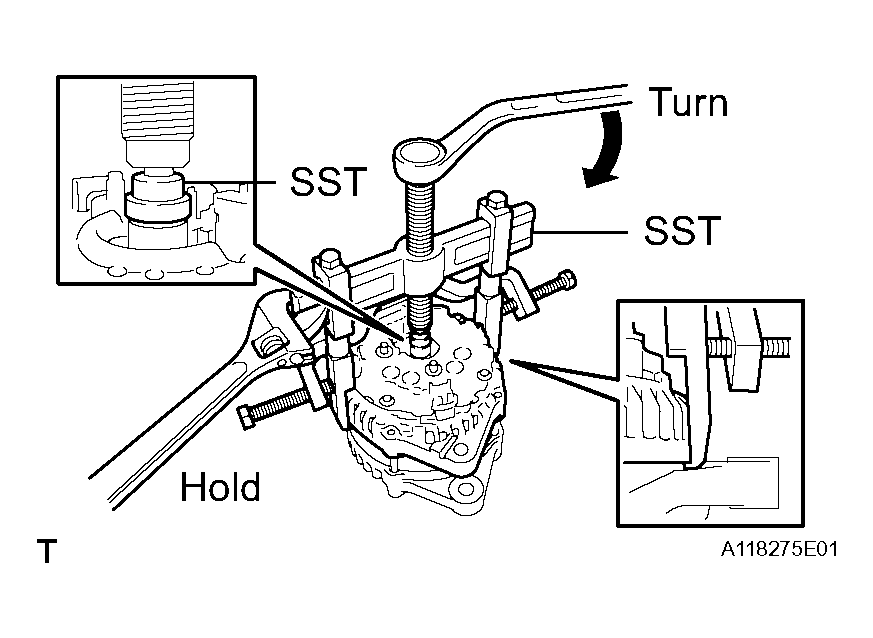

6. Loosen the pulley by turning SST (B) in the direction shown in the illustration.
7. Remove the generator assembly from the SST.
8. Remove the clutch pulley from the rotor shaft.

  Fig 5: Identifying Pulley
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE GENERATOR REAR END COVER
1. Place the generator assembly on the clutch pulley.

  Fig 6: Placing Generator Assembly On Clutch Pulley
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 3 nuts and end cover.

  Fig 7: Identifying Nuts And End Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TERMINAL INSULATOR
1. Remove the terminal insulator from the generator coil.

  Fig 8: Removing Terminal Insulator From Generator Coil
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE GENERATOR BRUSH HOLDER ASSEMBLY
1. Remove the 2 screws and brush holder from the generator coil.

  Fig 9: Removing Screws And Brush Holder From Generator Coil
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE GENERATOR COIL ASSEMBLY
1. Remove the 4 bolts.

  Fig 10: Identifying Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, remove the generator coil assembly.
  SST 09950-40011 (09951-04020, 09952-04010, 09953-04020, 09954-04010, 09955-04071, 09957-04010, 09958-04011)

  Fig 11: Identifying Generator Coil Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE GENERATOR ROTOR ASSEMBLY
1. Remove the generator washer.

  Fig 12: Identifying Generator Washer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the rotor assembly from the drive end frame.
INSPECT GENERATOR DRIVE END FRAME BEARING (See INSPECTION )

Fig 13: Identifying Rotor Assembly And Drive End Frame
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE GENERATOR DRIVE END FRAME BEARING
1. Remove the 4 screws and retainer plate from the drive end frame.

  Fig 14: Identifying Screws, Retainer Plate And Drive End Frame
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST and a hammer, tap out the drive end frame bearing from the drive end frame.
  SST 09950-60010 (09951-00250), 09950-70010 (09951-07100)

  Fig 15: Tapping Out Drive End Frame Bearing From Drive End Frame
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
