Charging (2GR-FSE): Generator: Installation

INSTALL GENERATOR ASSEMBLY

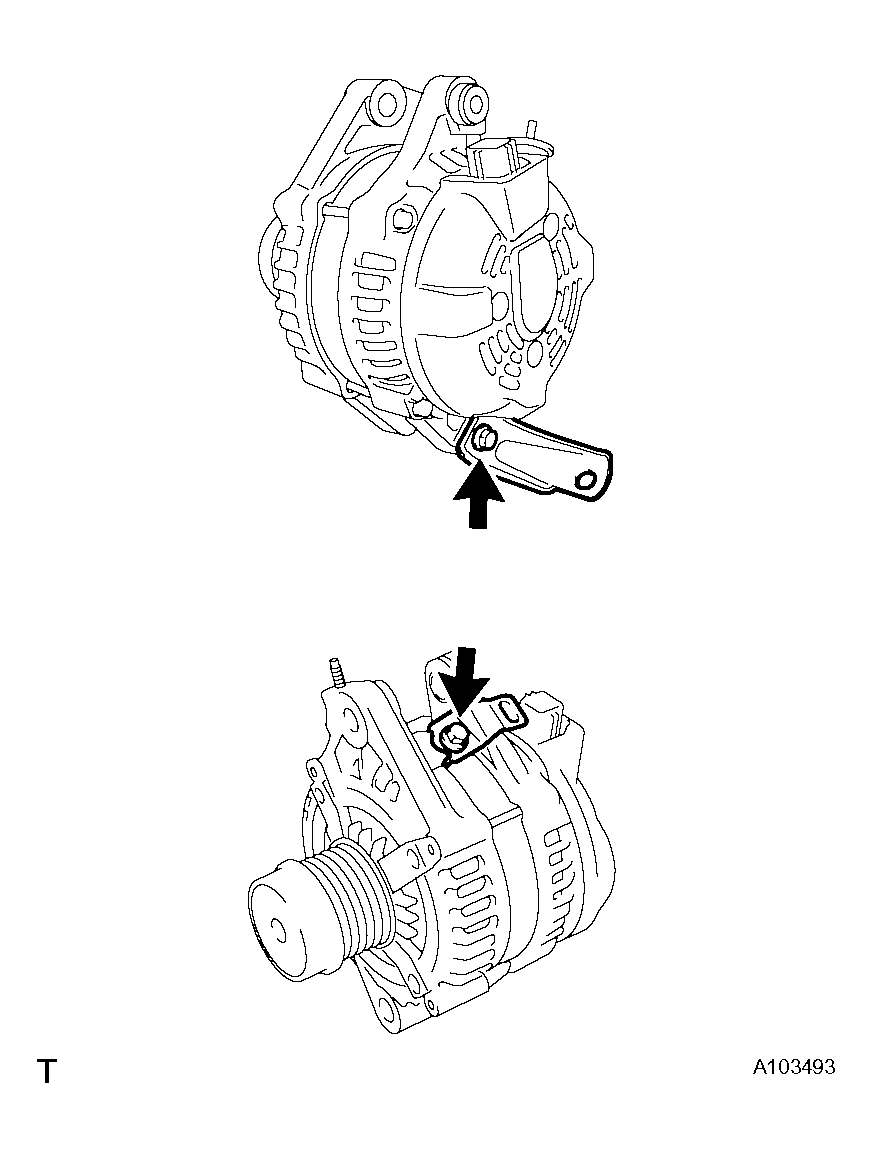

1. Install the 2 generator brackets with the 2 bolts.
  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

  Fig 1: Identifying Generator Brackets With 2 Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

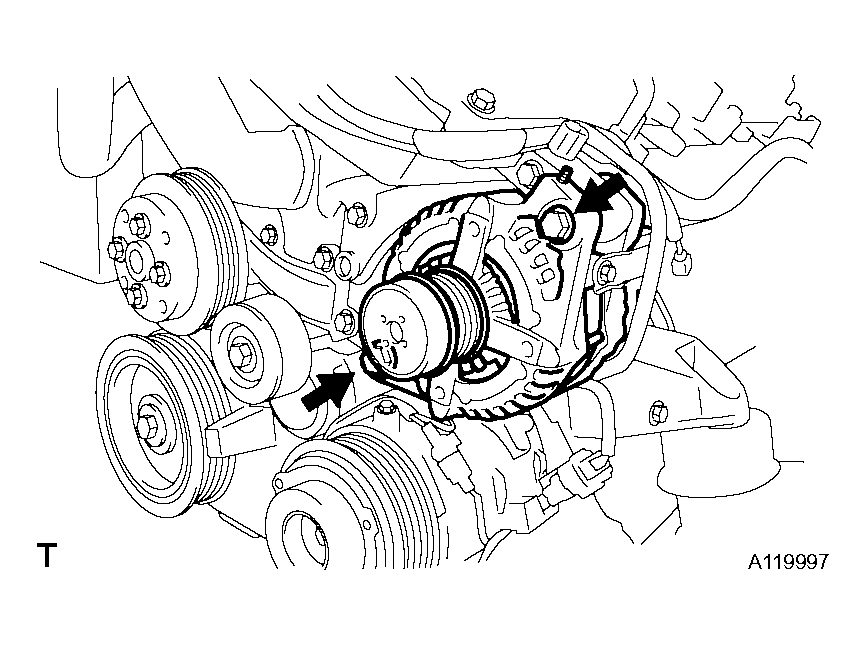

2. Install the generator assembly with the 2 bolts.
  Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

  Fig 2: Identifying Generator Assembly With 2 Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

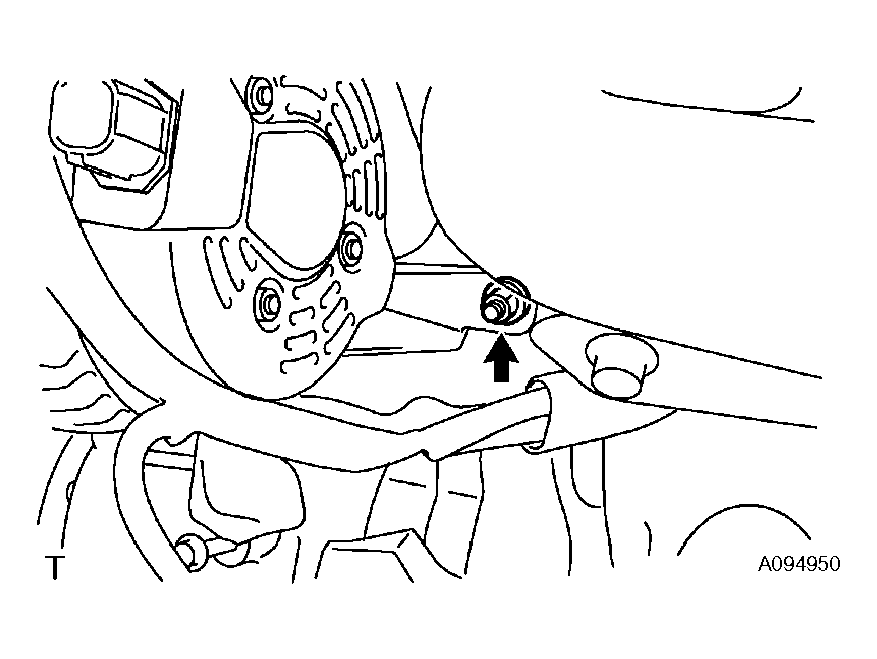

3. Install the bracket with the nut.
  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

  Fig 3: Identifying Bracket With Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

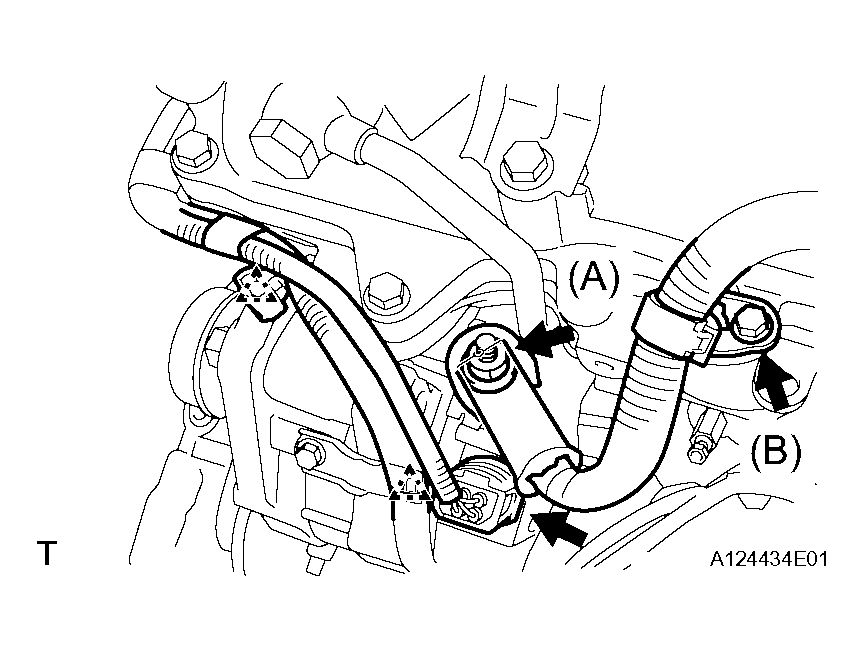

4. Install the generator wire to terminal B with the nut (A).
  Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)
5. Install the terminal cap.
6. Install the clamp bracket with the bolt (B).

  Fig 4: Identifying Clamp Bracket With Bolt (B)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
7. Attach the 2 clamps, and connect the generator connector to the generator.
INSTALL WIRE HARNESS

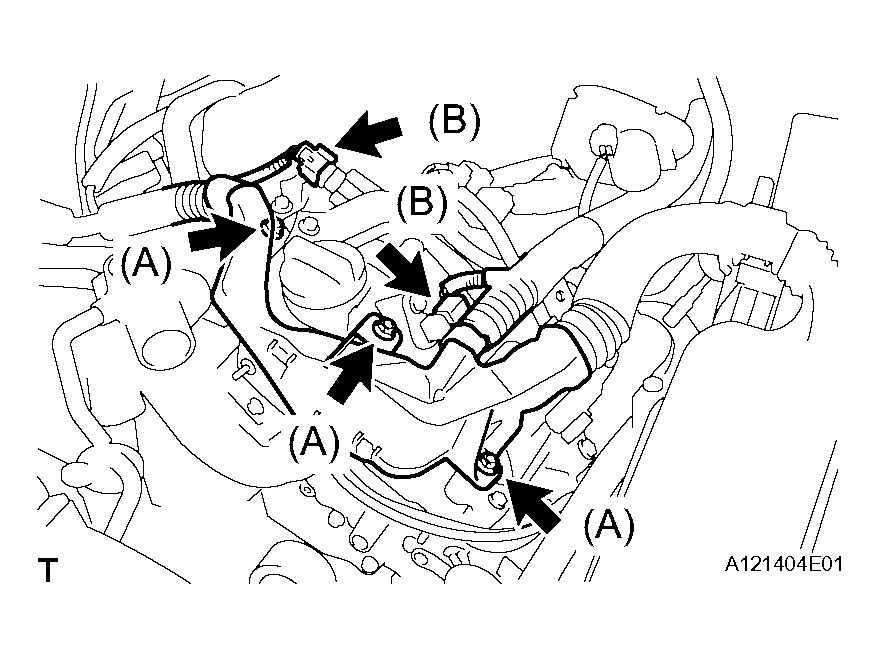

1. Install the wire harness with the 3 nuts (A).
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
2. Connect the 2 connectors (B).

  Fig 5: Identifying Wire Harness With Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 IDLER PULLEY SUB-ASSEMBLY (See INSTALLATION )
INSTALL NO. 2 ENGINE COVER (See INSTALLATION )
INSTALL RADIATOR INLET HOSE (See INSTALLATION )
INSTALL V-RIBBED BELT (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (See INSTALLATION )
ADD ENGINE COOLANT (See COOLANT )
CHECK FOR ENGINE COOLANT LEAKS (See ON-VEHICLE INSPECTION )
INSTALL NO. 1 INLET AIR CLEANER (See INSTALLATION )
INSTALL V-BANK COVER SUB-ASSEMBLY (See INSTALLATION )
INSTALL ENGINE ROOM SIDE COVER LH (See INSTALLATION )
INSTALL COOL AIR INTAKE DUCT SEAL (See INSTALLATION )
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after reconnecting the cable to the negative (-) battery terminal.
