DOOR CONTROL RECEIVER

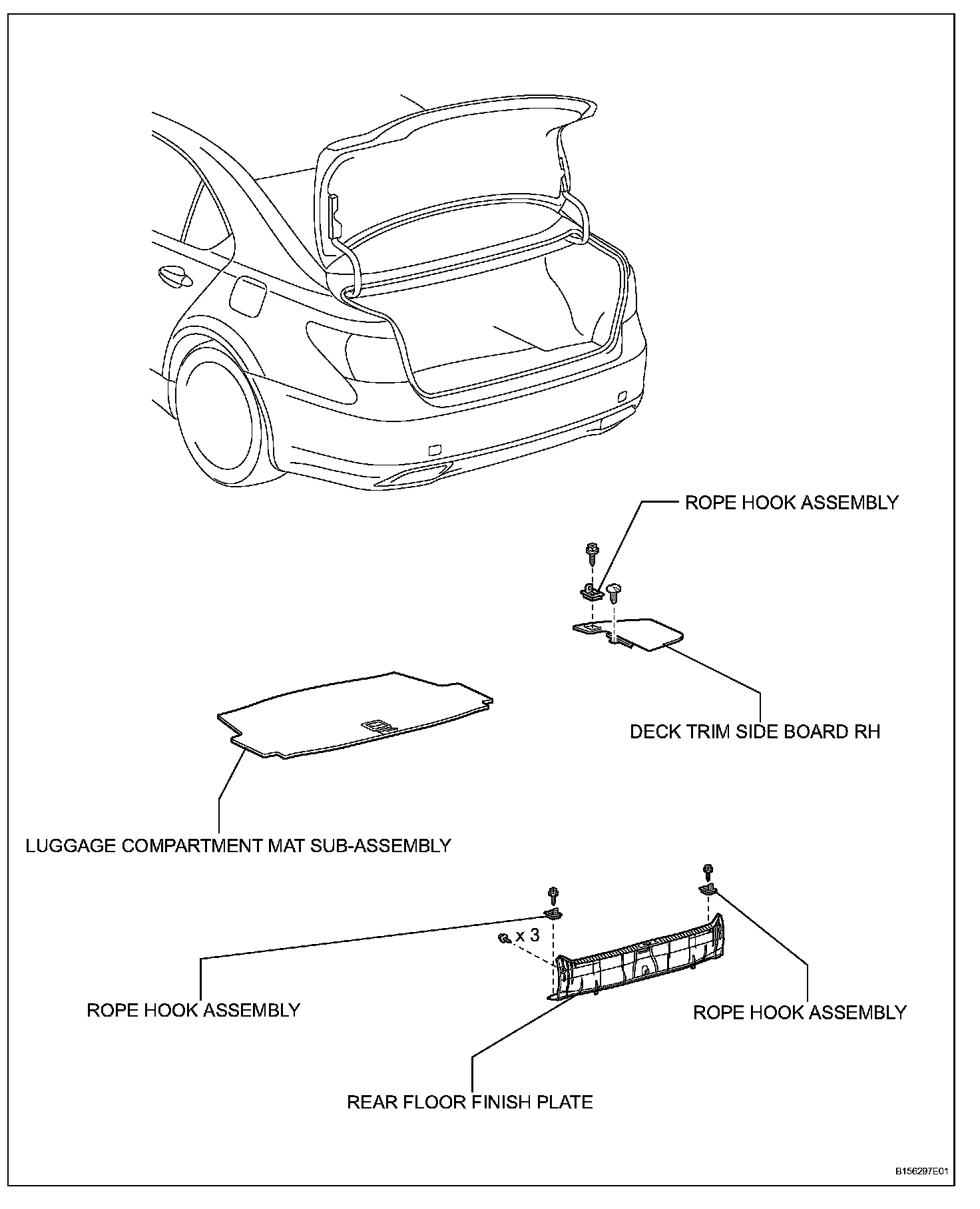

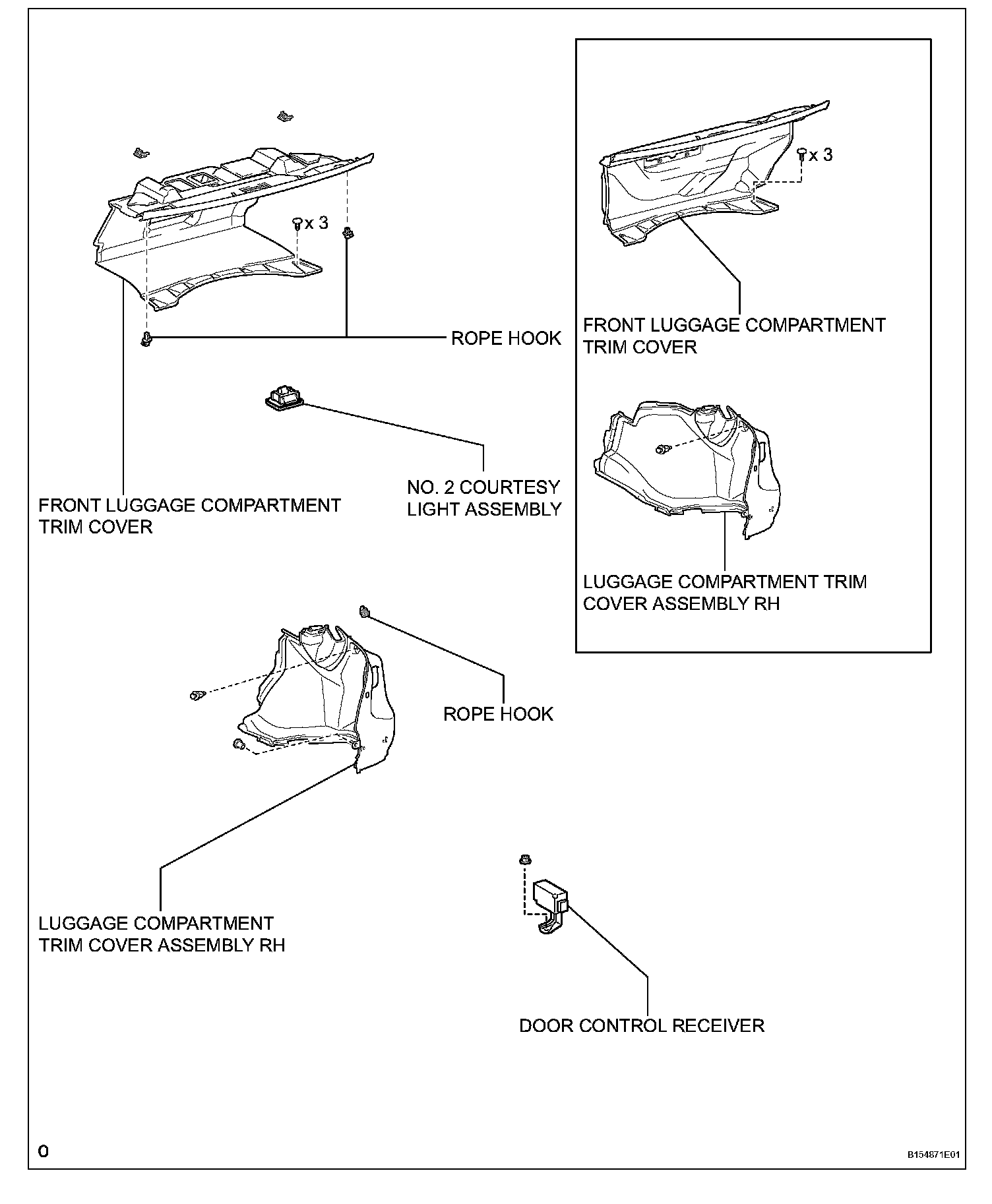

REMOVAL

1. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
2. REMOVE ROPE HOOK ASSEMBLY
3. REMOVE ROPE HOOK
4. REMOVE DECK TRIM SIDE BOARD RH
5. REMOVE NO.2 COURTESY LIGHT ASSEMBLY
6. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER
7. REMOVE REAR FLOOR FINISH PLATE
8. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY RH





9. REMOVE DOOR CONTROL RECEIVER
a. Disconnect the connector.
b. Remove the nut and receiver.

INSTALLATION




1. INSTALL DOOR CONTROL RECEIVER
a. Install the receiver with the nut.
b. Connect the connector.

NOTE: When replacing or inspecting the door control receiver and wire harness, do not change the position or length of the wire harness. If the wire harness is too close to the door control receiver, entry and wireless function performance may be affected.

2. INSTALL LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY RH
3. INSTALL REAR FLOOR FINISH PLATE
4. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER
5. INSTALL NO.2 COURTESY LIGHT ASSEMBLY
6. INSTALL DECK TRIM SIDE BOARD RH
7. INSTALL ROPE HOOK
8. INSTALL ROPE HOOK ASSEMBLY
9. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
