Door Control Switch

Door Control Switch:

DOOR CONTROL SWITCH

REMOVAL

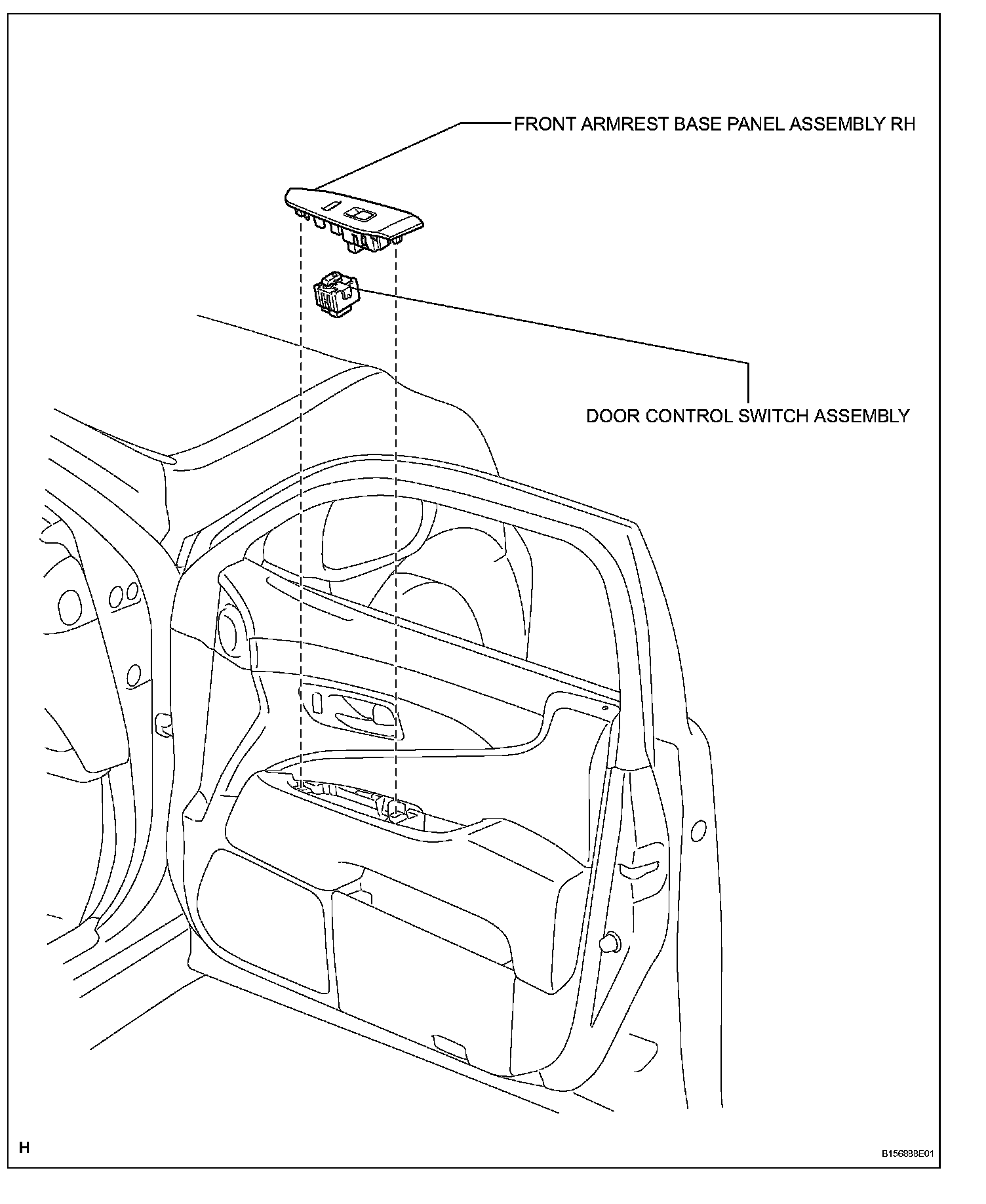

1. REMOVE DOOR CONTROL SWITCH ASSEMBLY




a. Using a moulding remover, detach the 2 clamps and armrest base assembly.




b. Disconnect the 2 connectors.




c. Detach the 2 claws and remove the door control switch.

INSTALLATION

1. INSTALL DOOR CONTROL SWITCH ASSEMBLY




a. Install the control switch with the 2 claws.




b. Connect the 2 connectors.




c. Install the armrest base assembly with the 2 clamps.

2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
3. INSTALL COWL TOP VENTILATOR LOUVER RH
4. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
