Home >> Lexus >> 2007 >> LS 460 V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By Connector Number >> O2 - O22

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

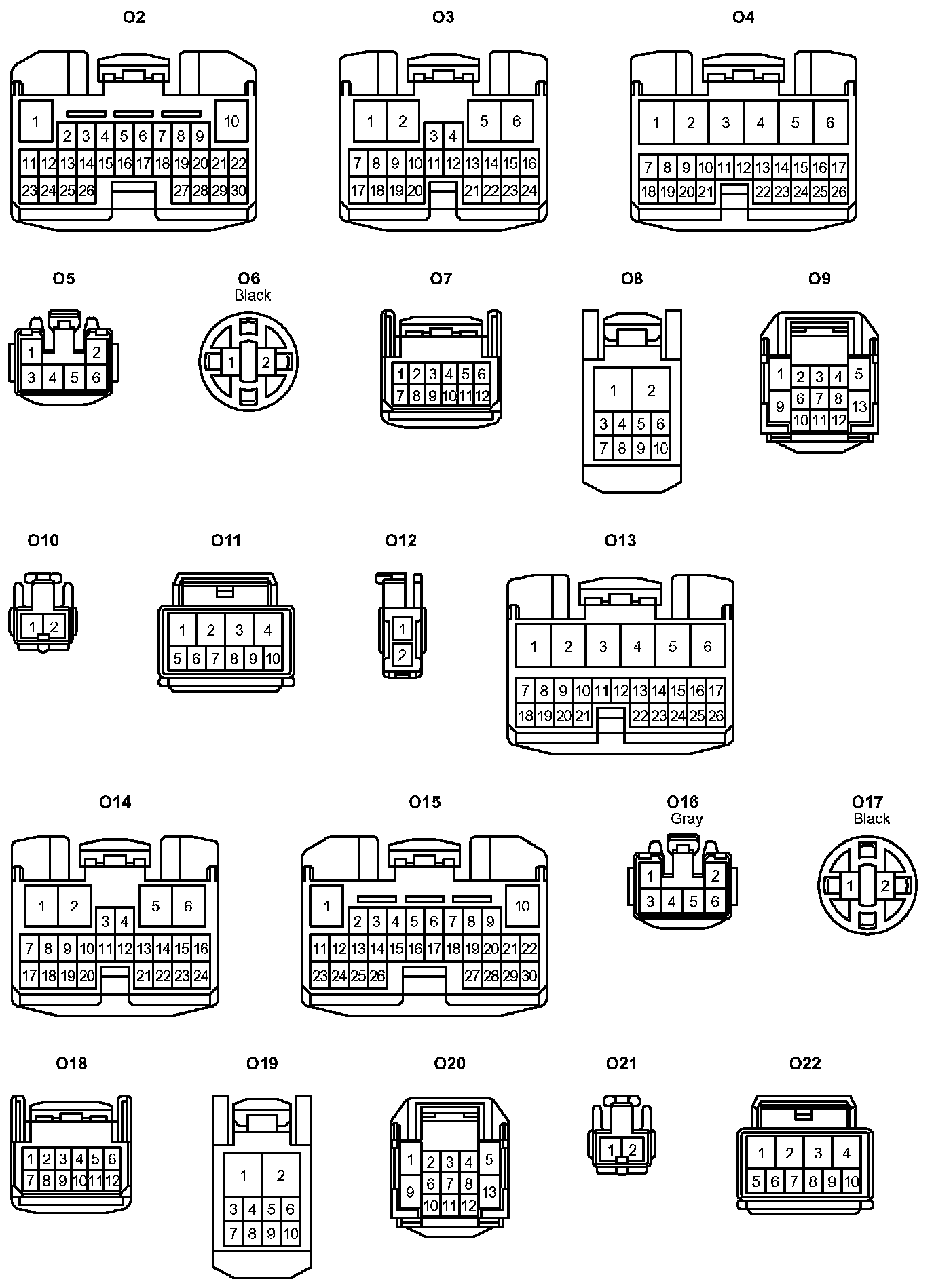

O2 - O22

O2 - O22:
