Fuel Injector

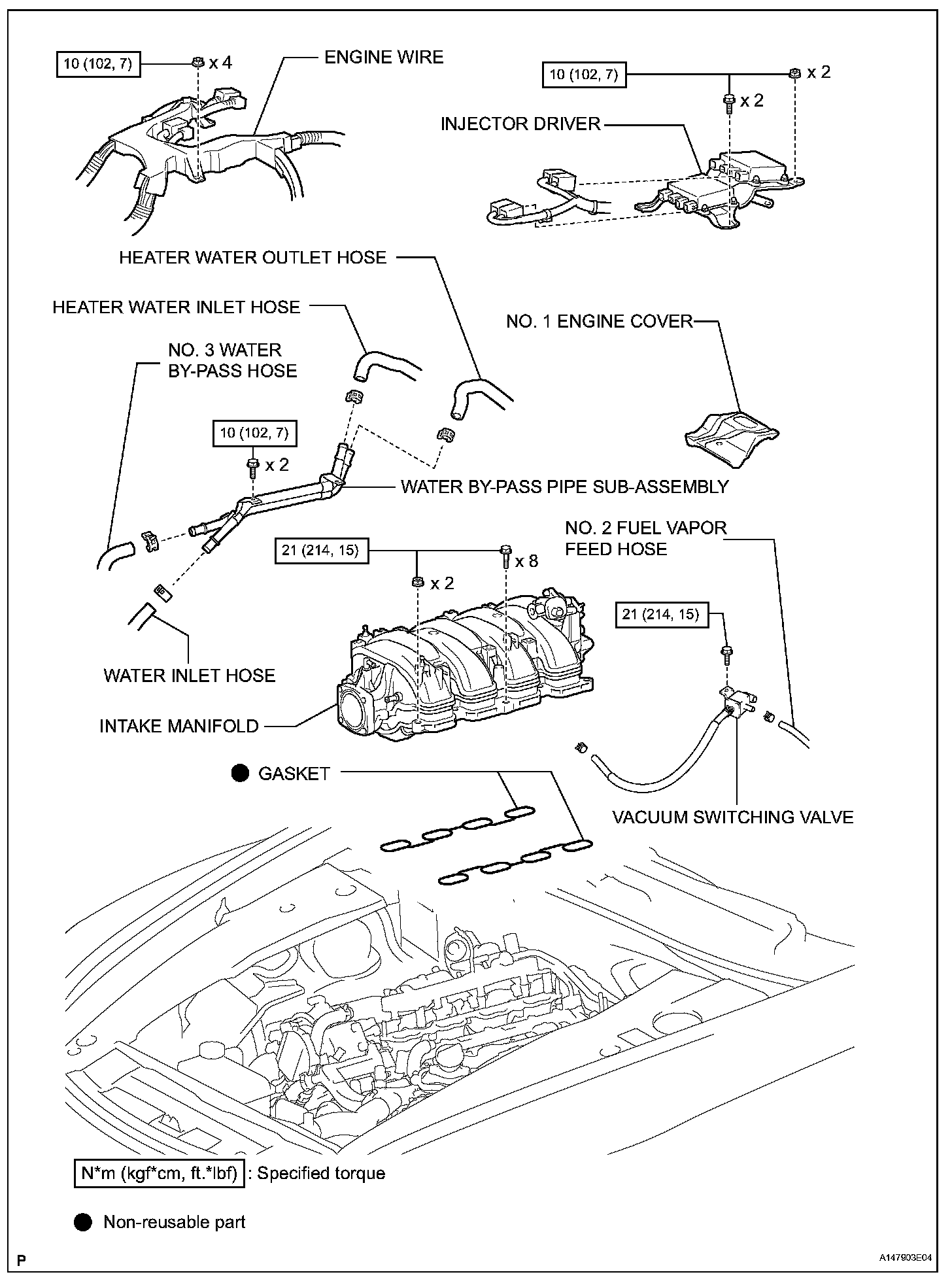

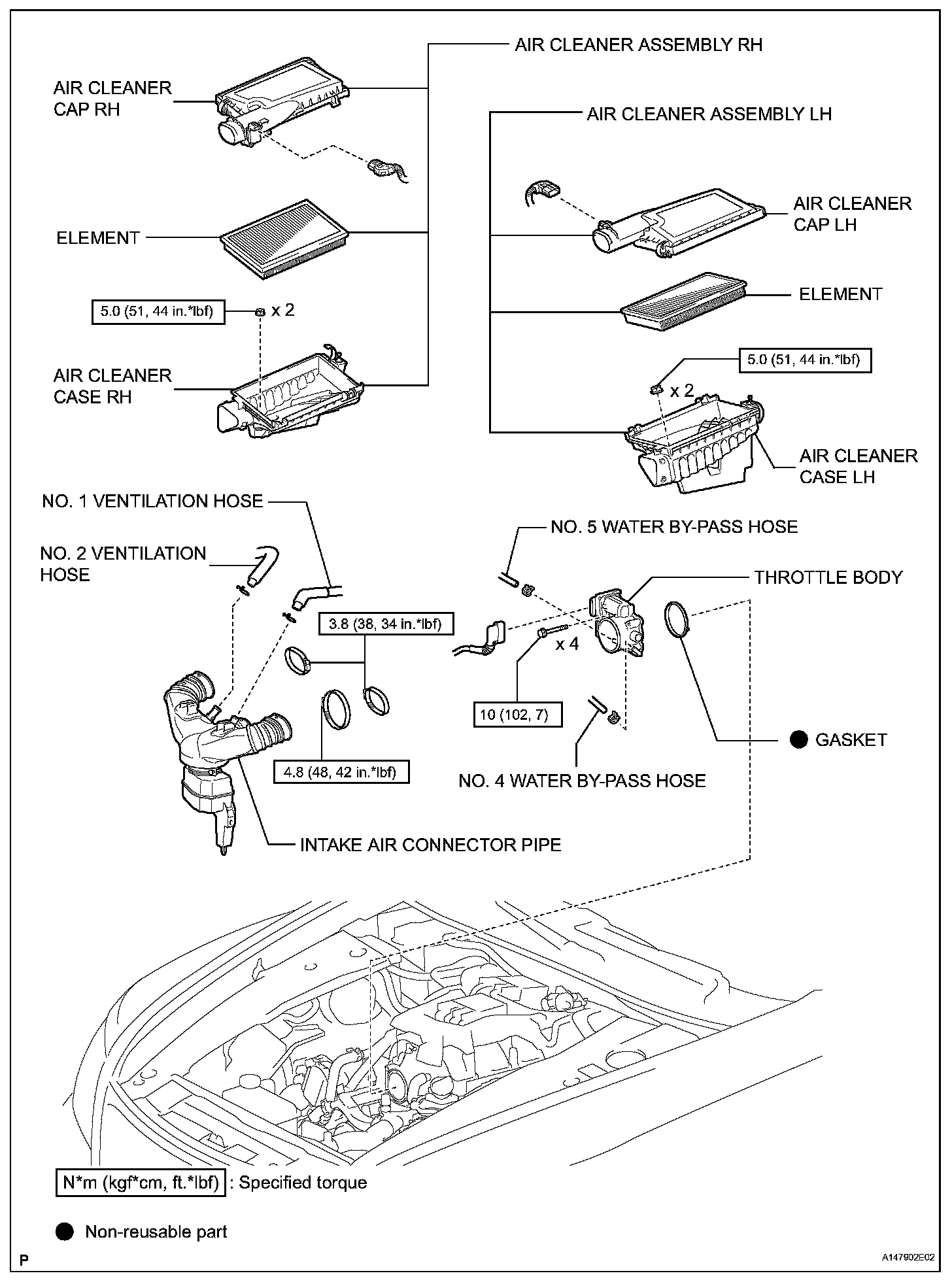

Fuel Injector (for Port Injection):

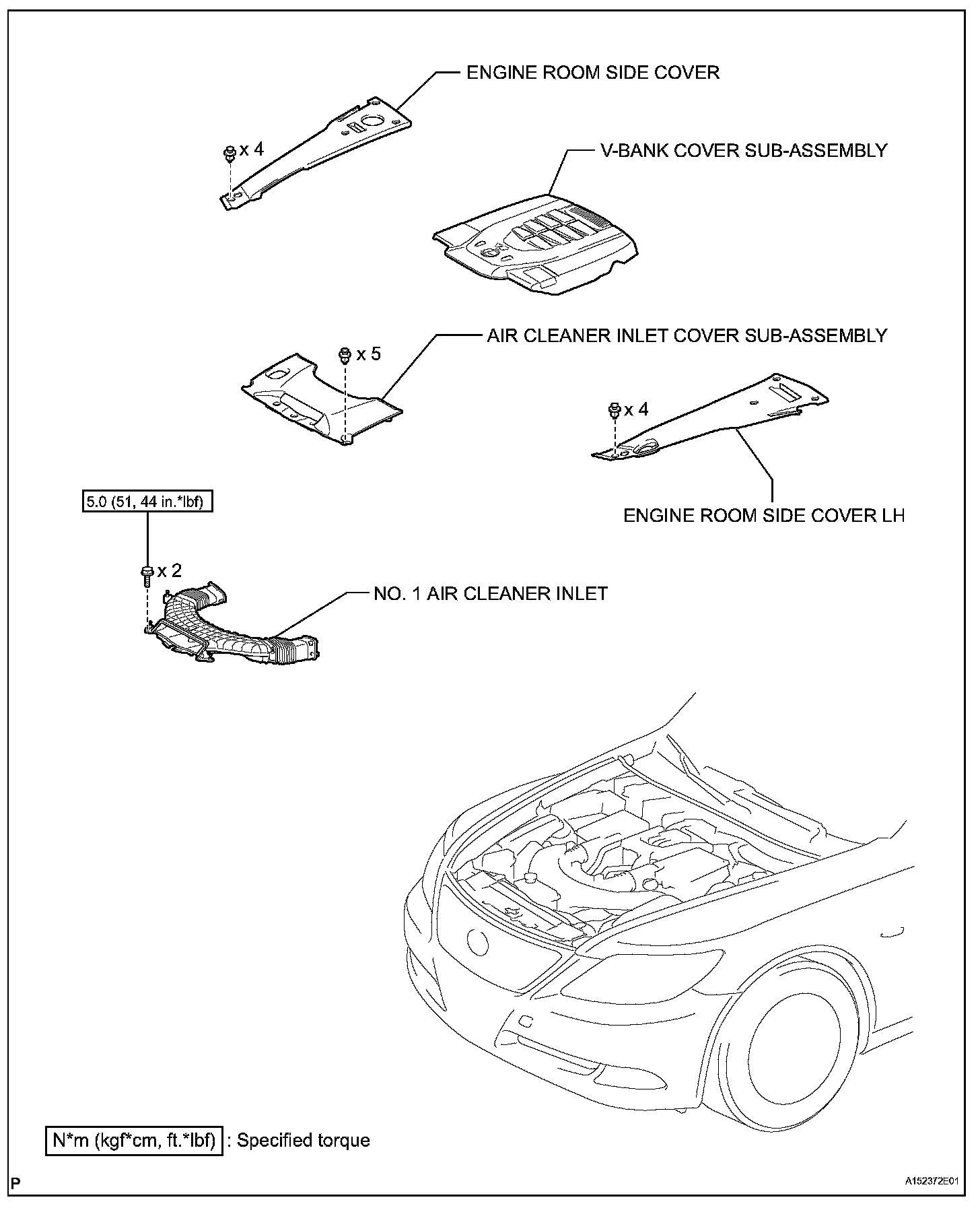

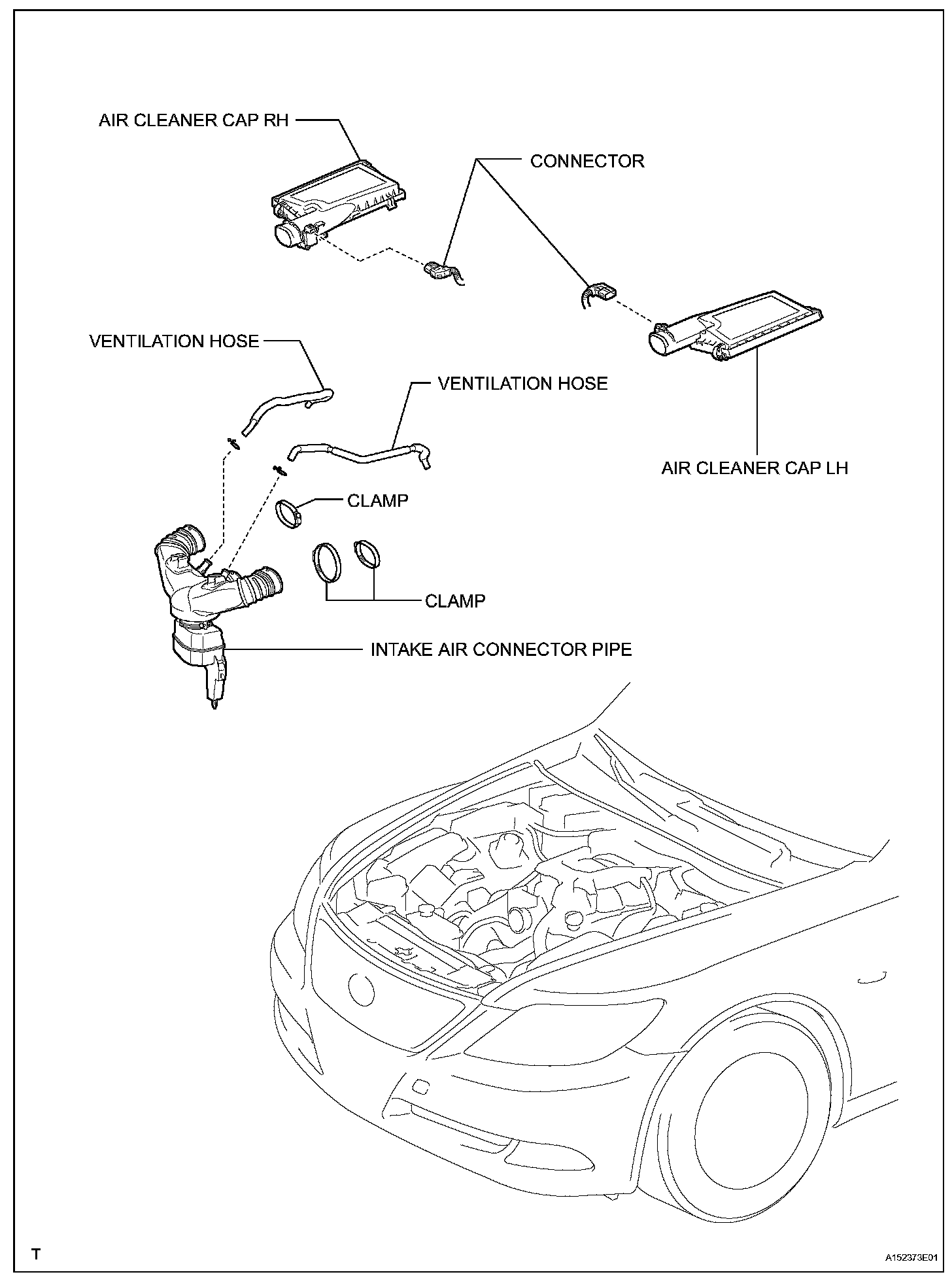

Fuel Injector (for Port Injection):

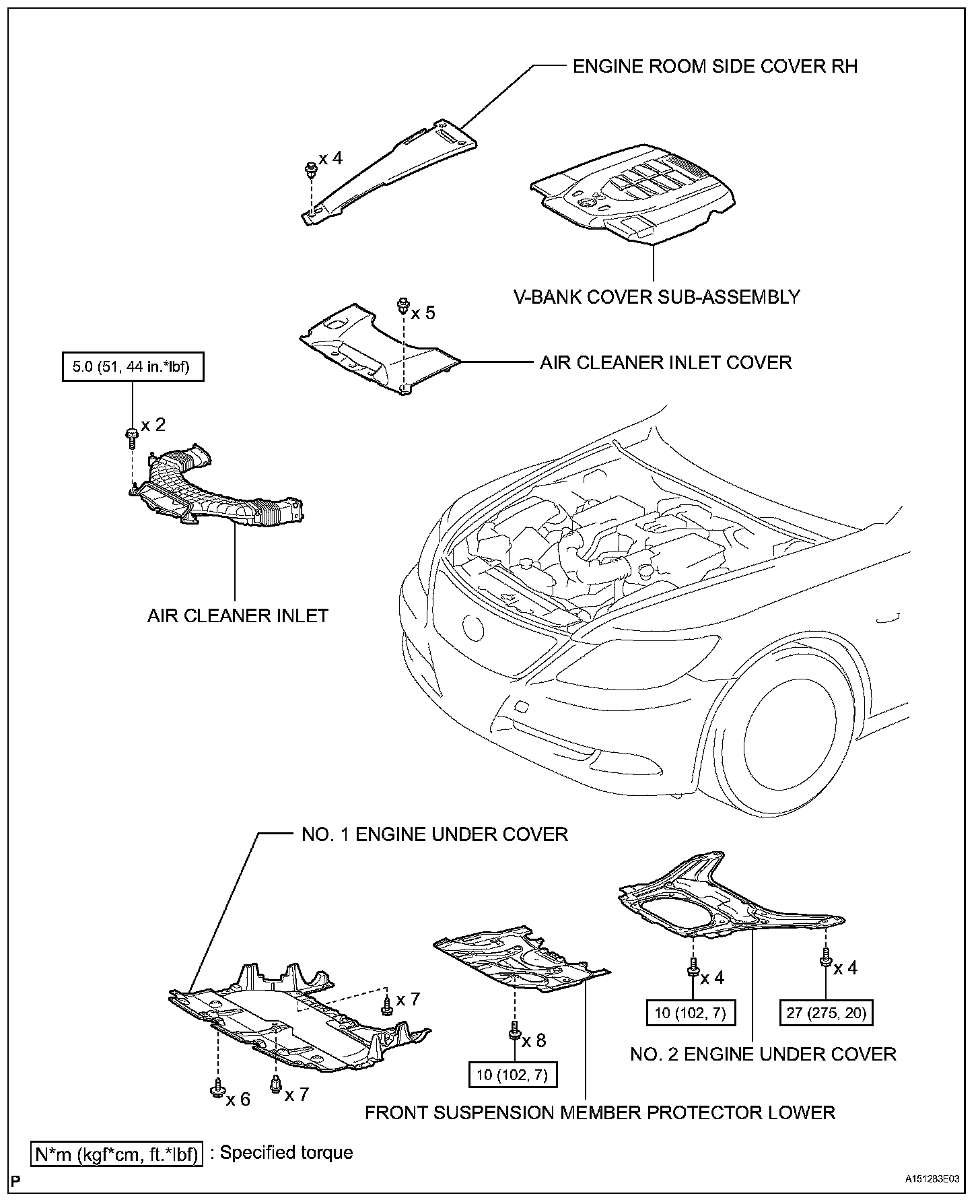

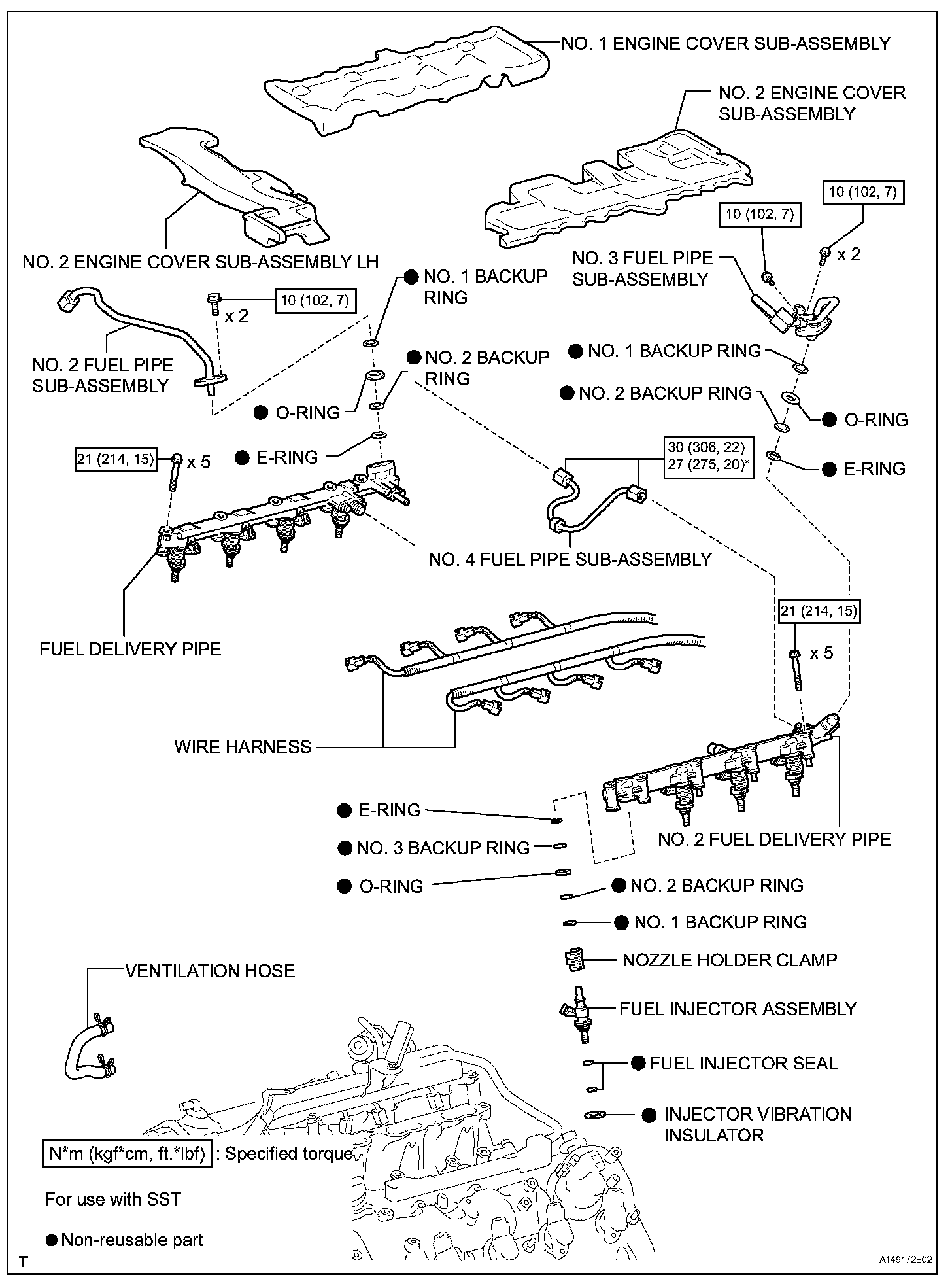

Fuel Injector (for Port Injection):

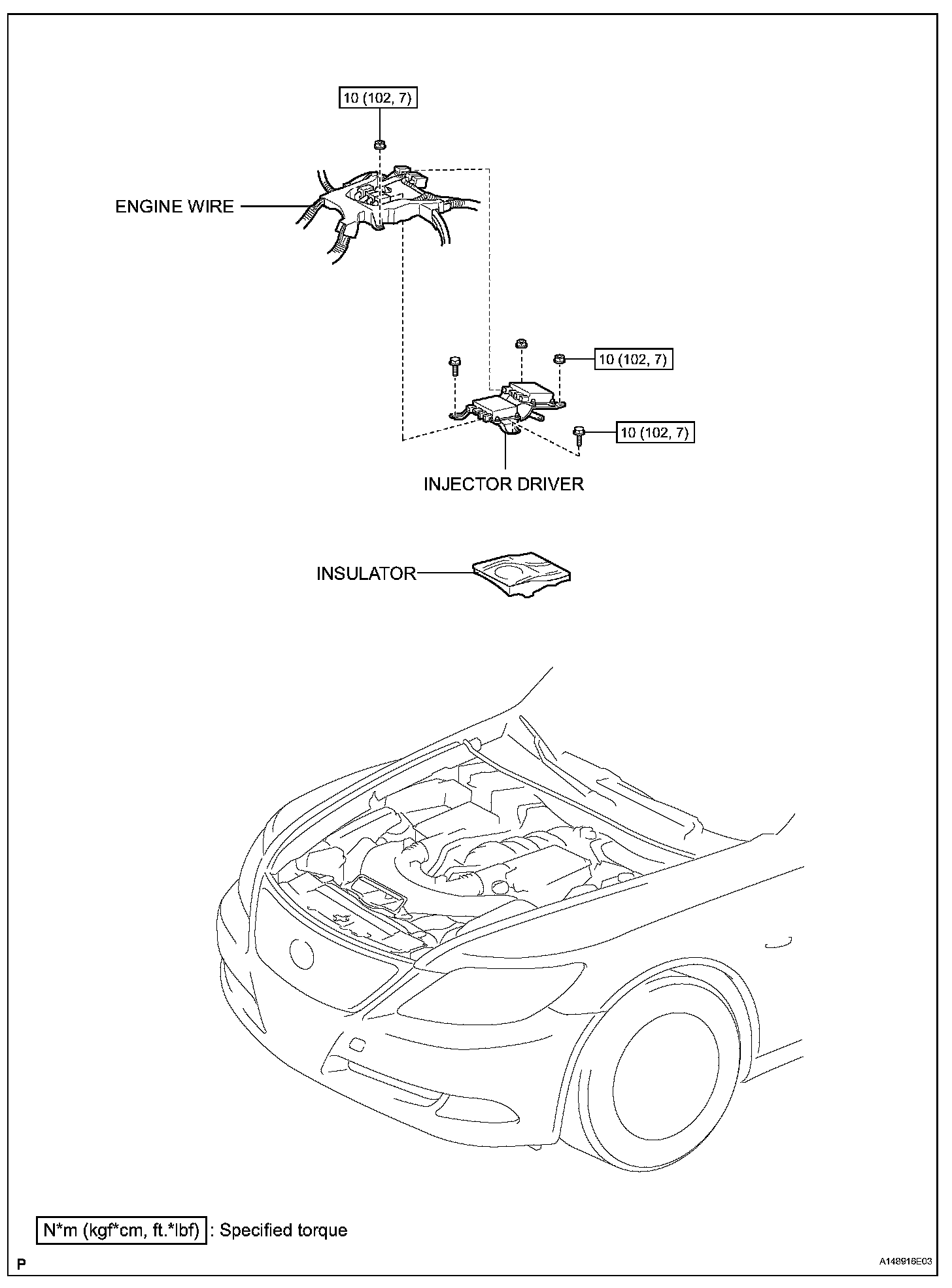

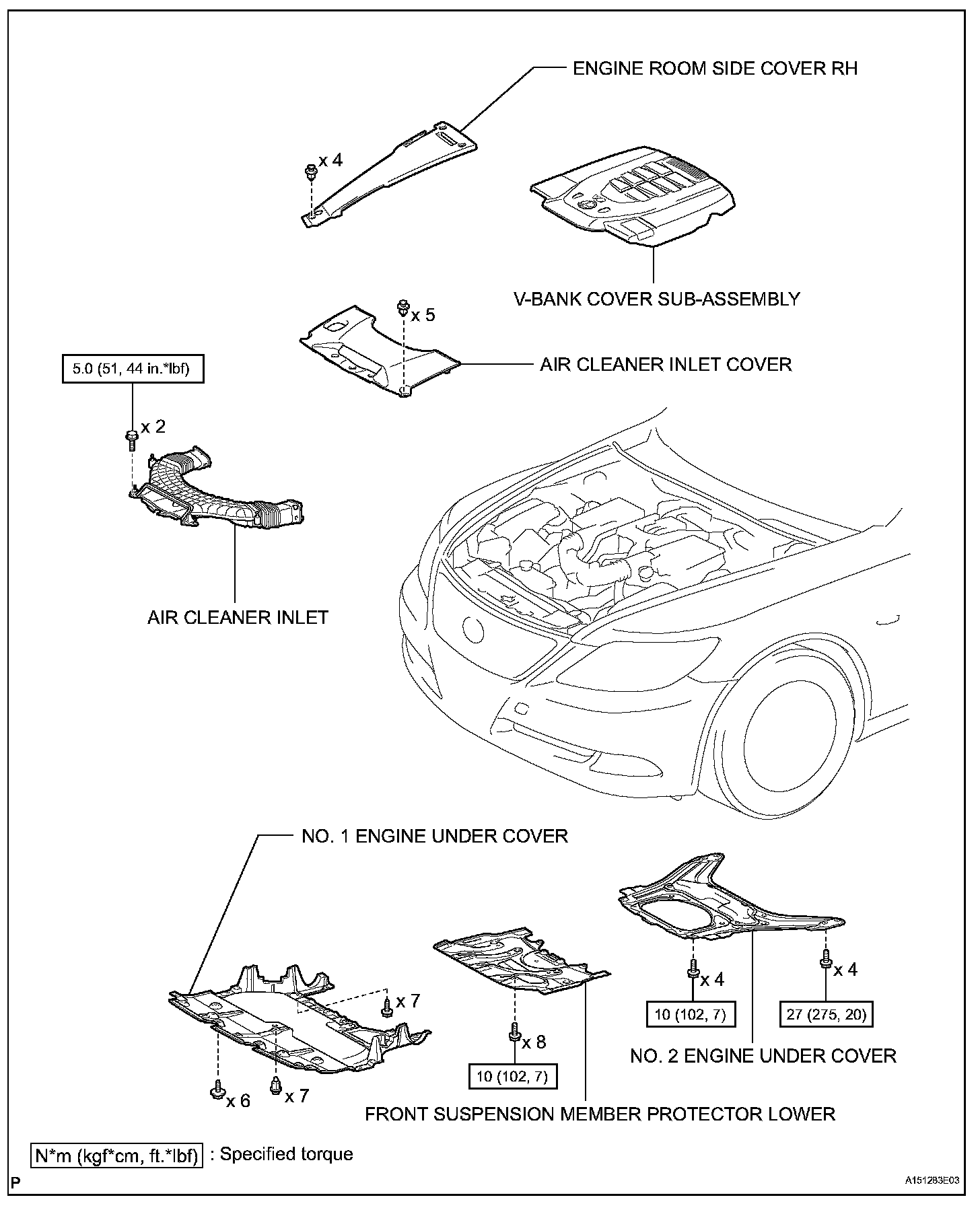

Fuel Injector (for Port Injection):

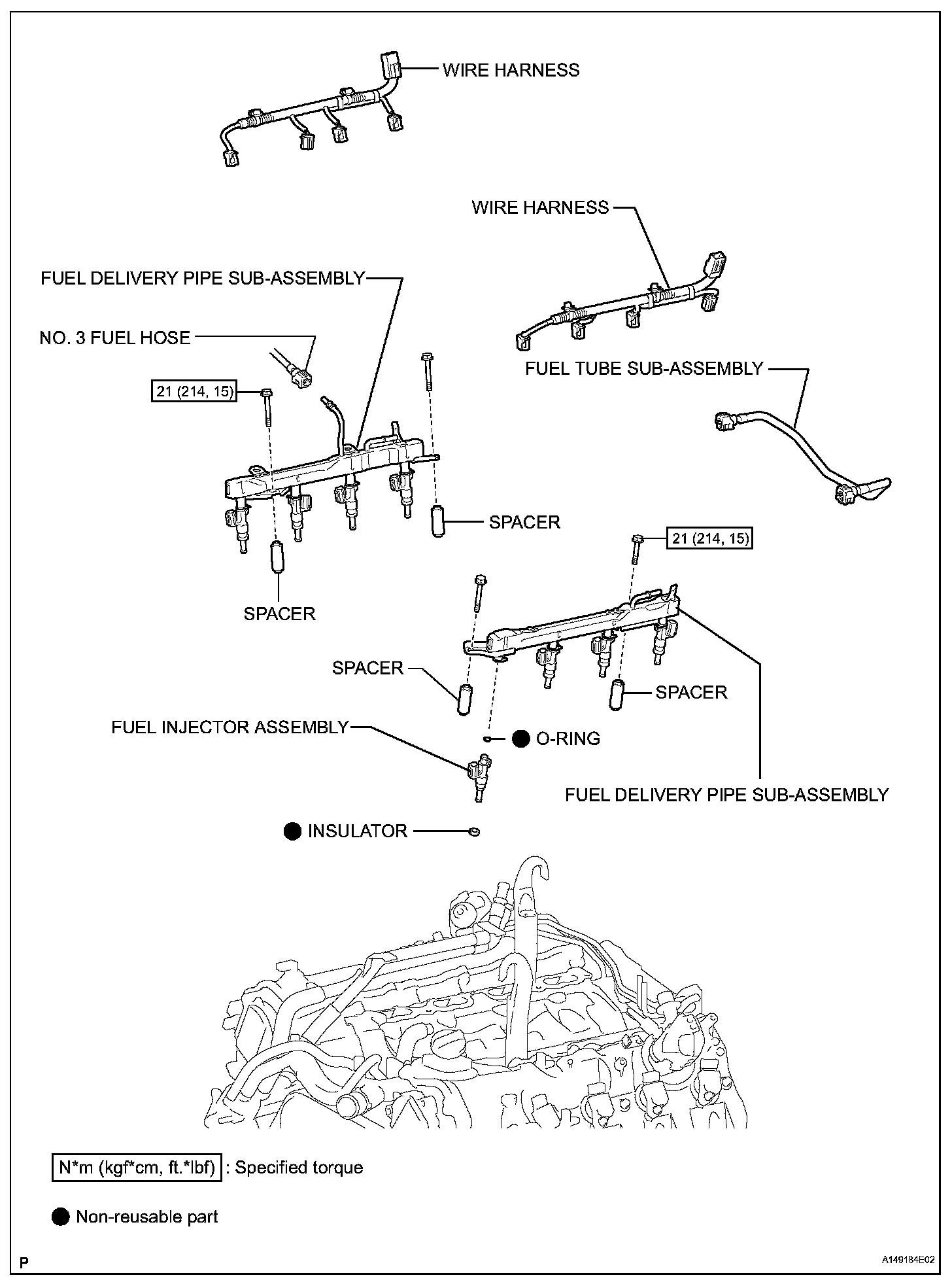

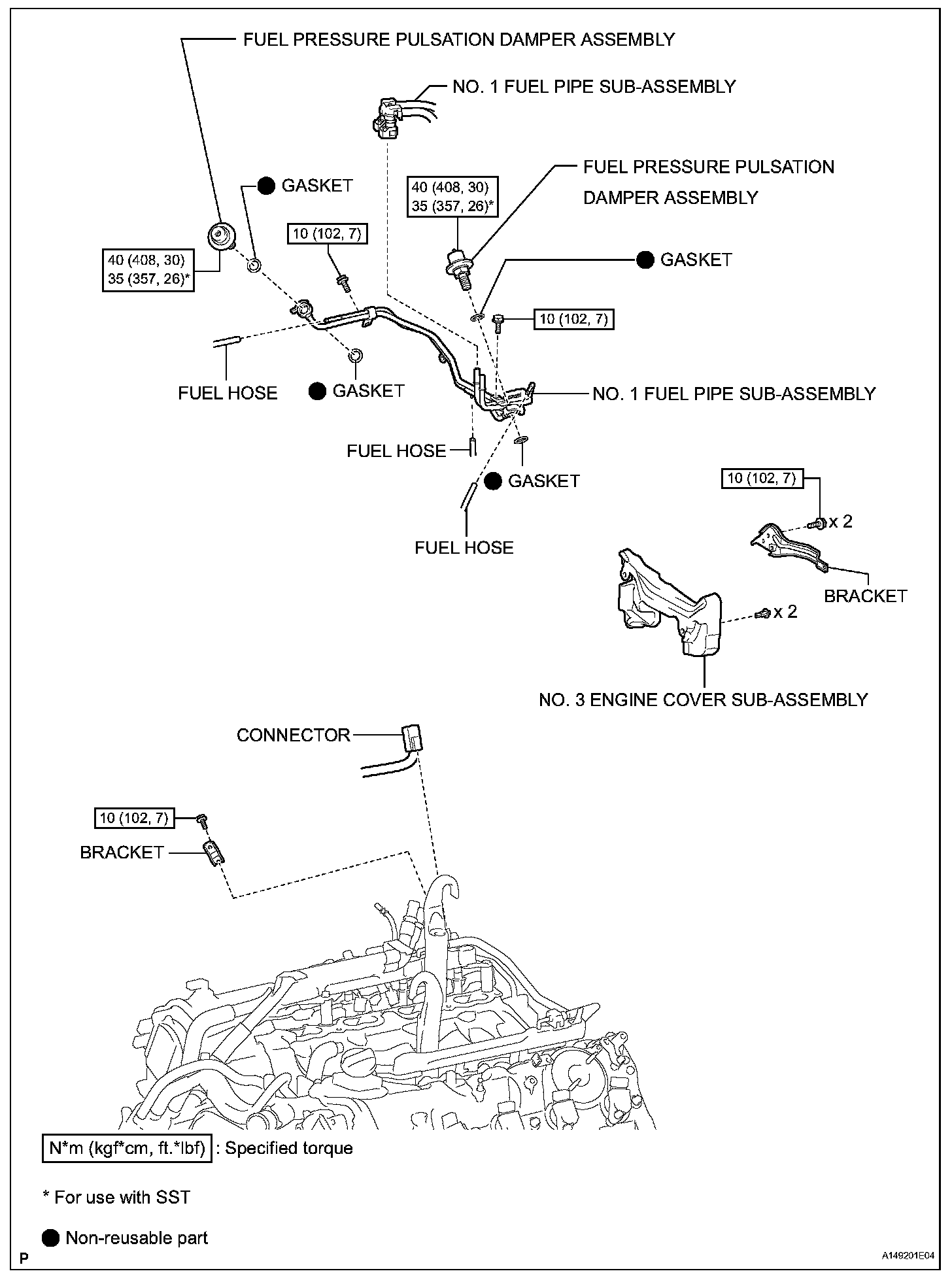

Fuel Injector (for Direct Injection):

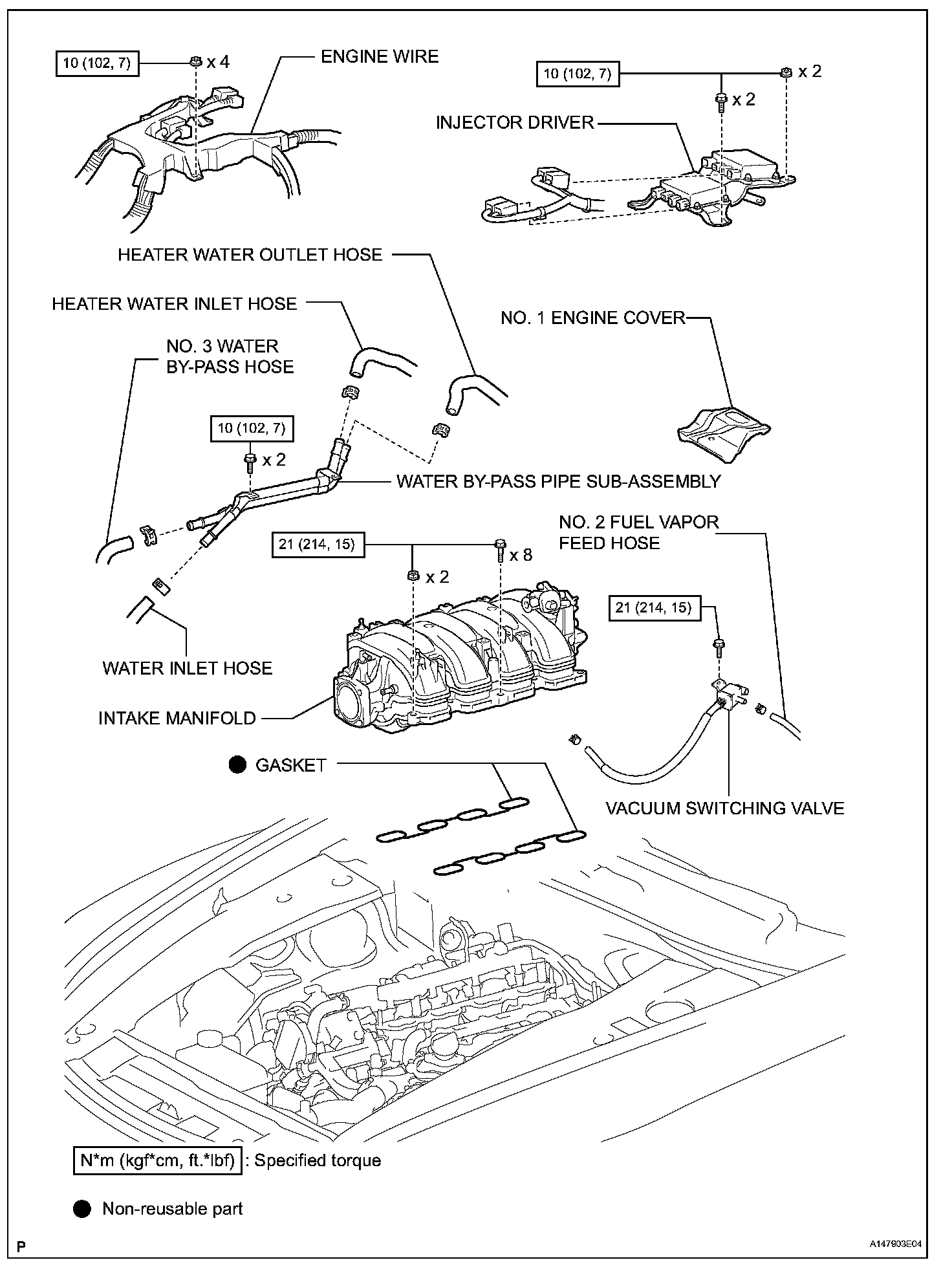

Fuel Injector (for Direct Injection):



Fuel Injector (for Direct Injection):



Fuel Injector (for Direct Injection):



Fuel Injector (for Direct Injection):

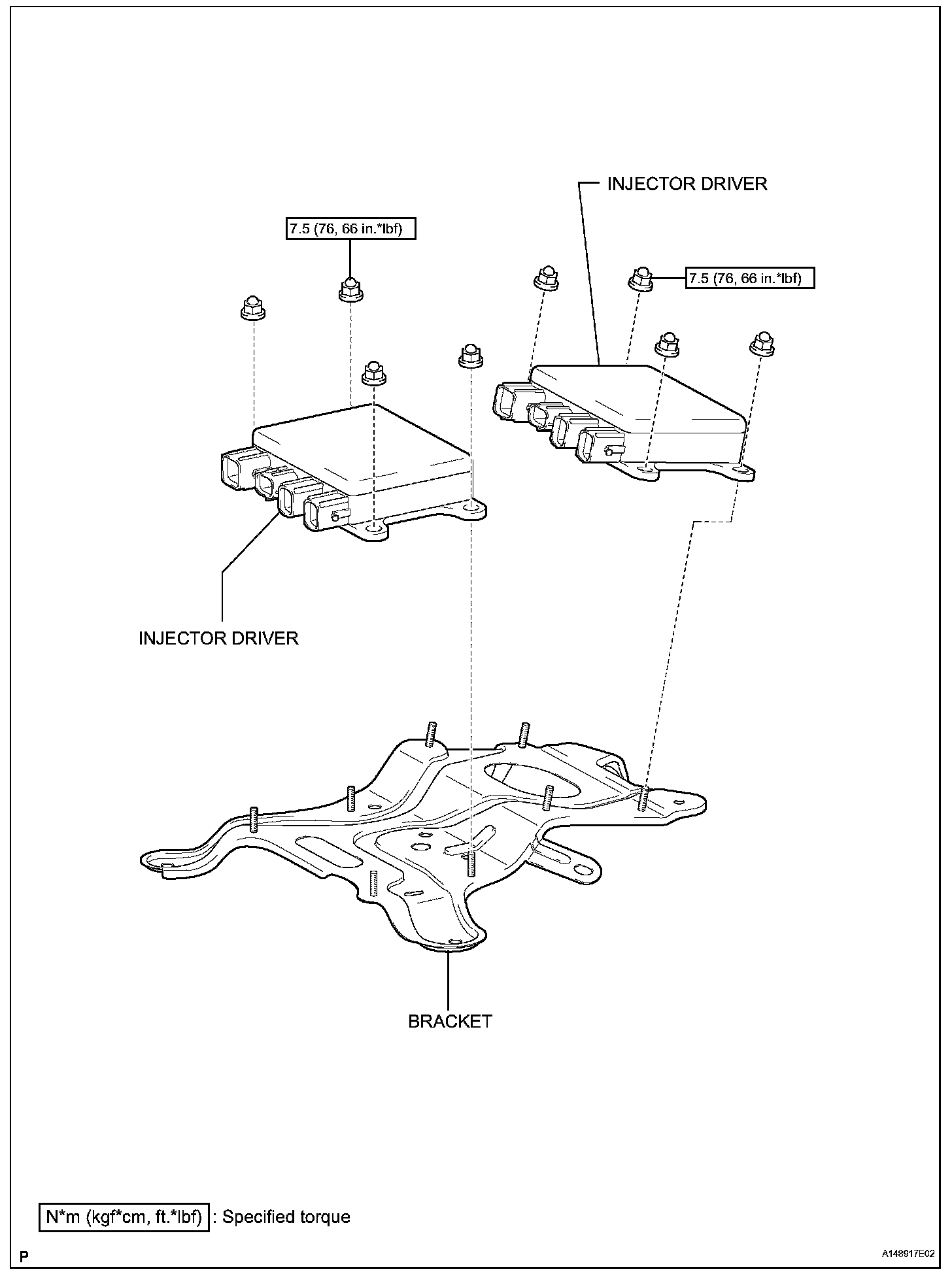

Injector Driver:

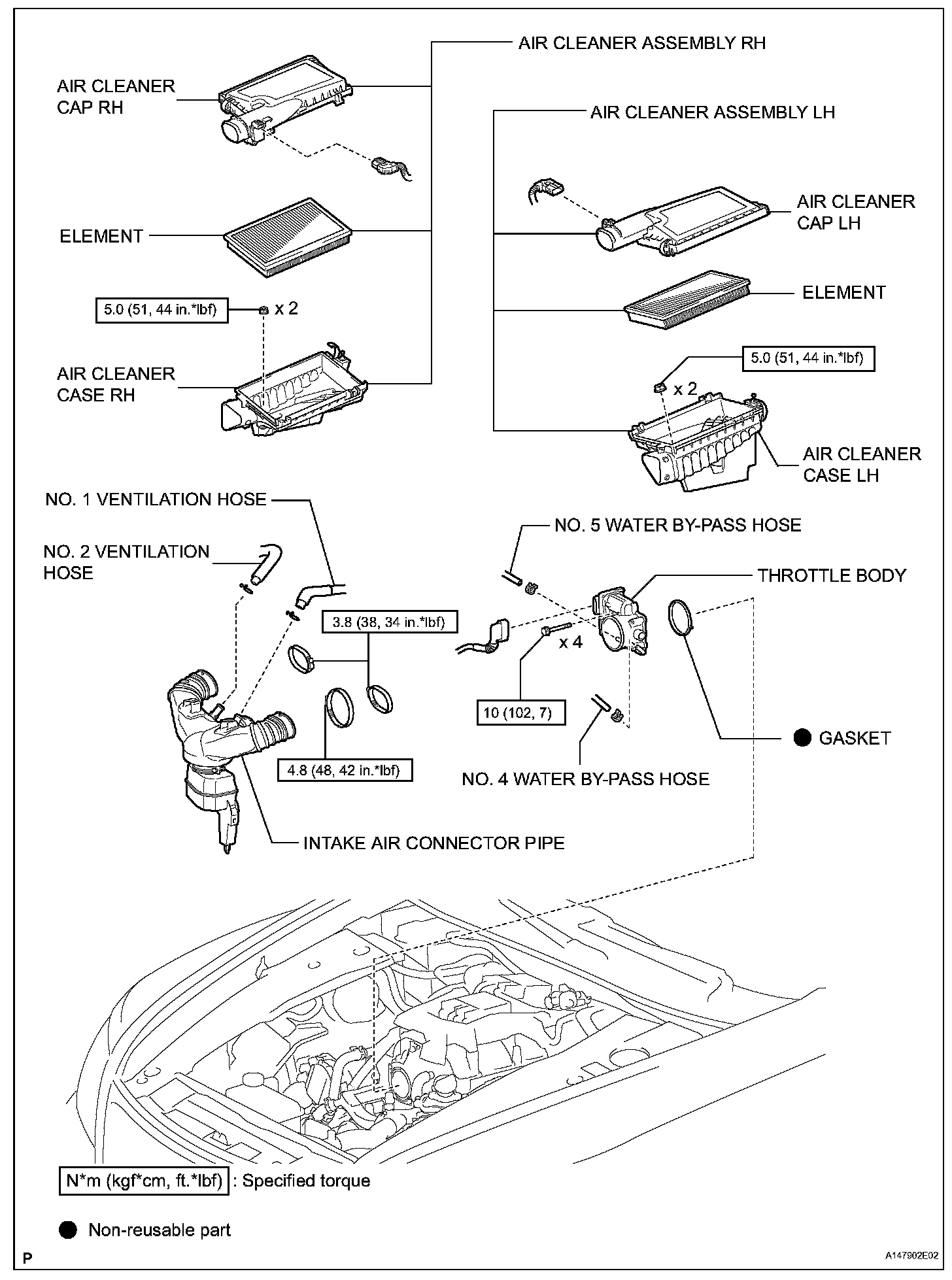

Injector Driver:



Injector Driver:



Injector Driver:
