Ride Height Sensor, Suspension Control

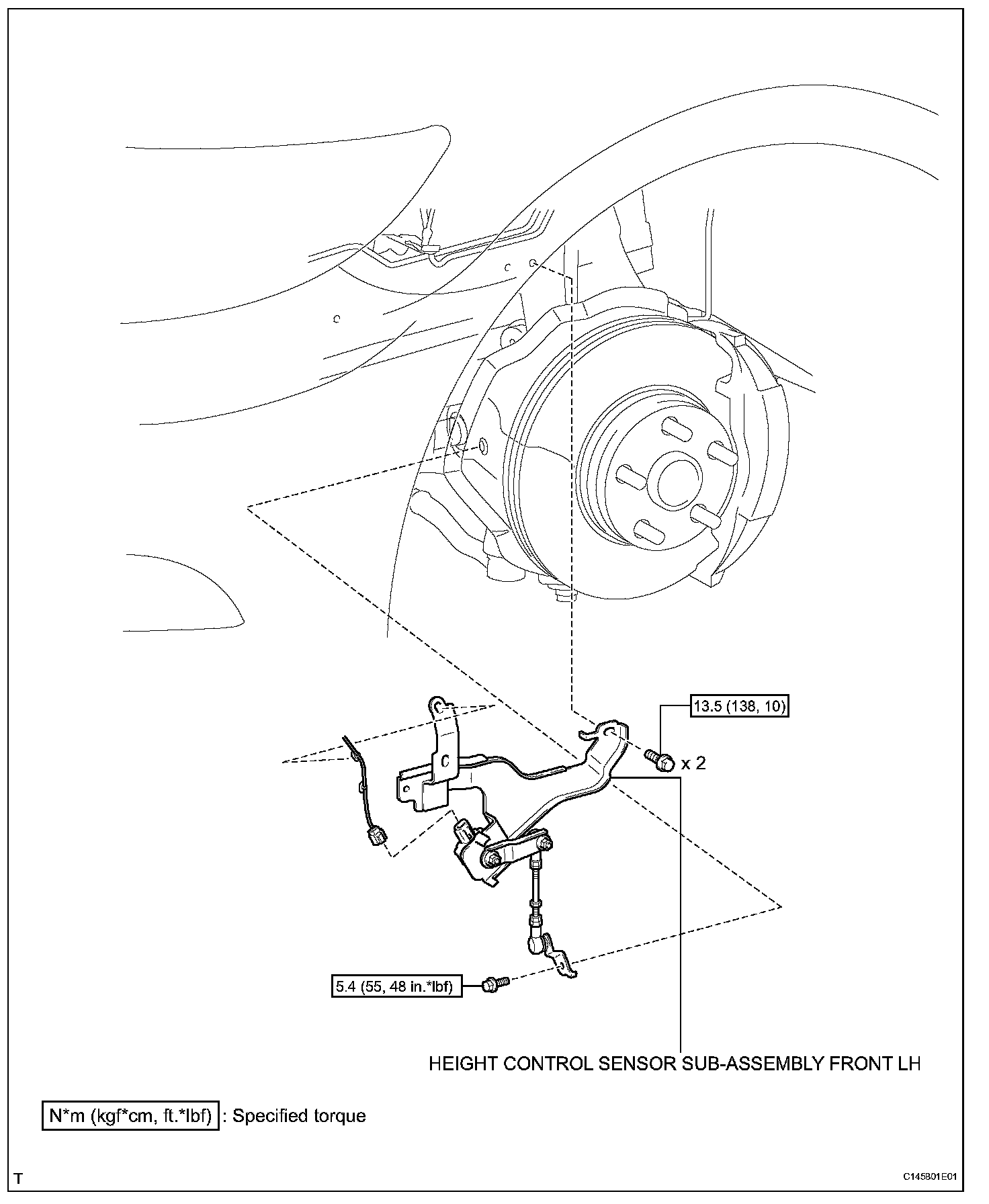

Height Control Sensor (for Front LH):

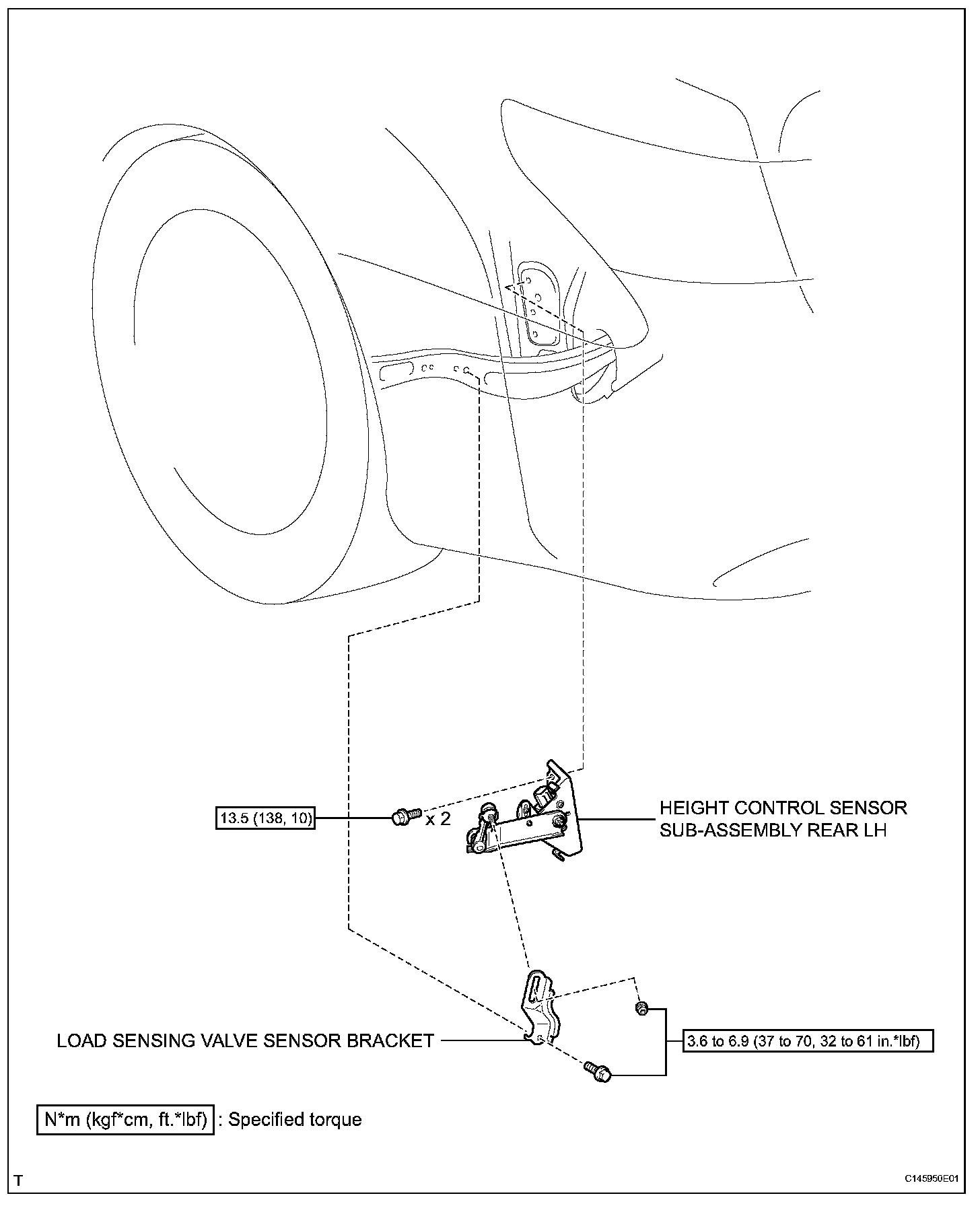

Height Control Sensor (for Rear LH):
