Spark Plug

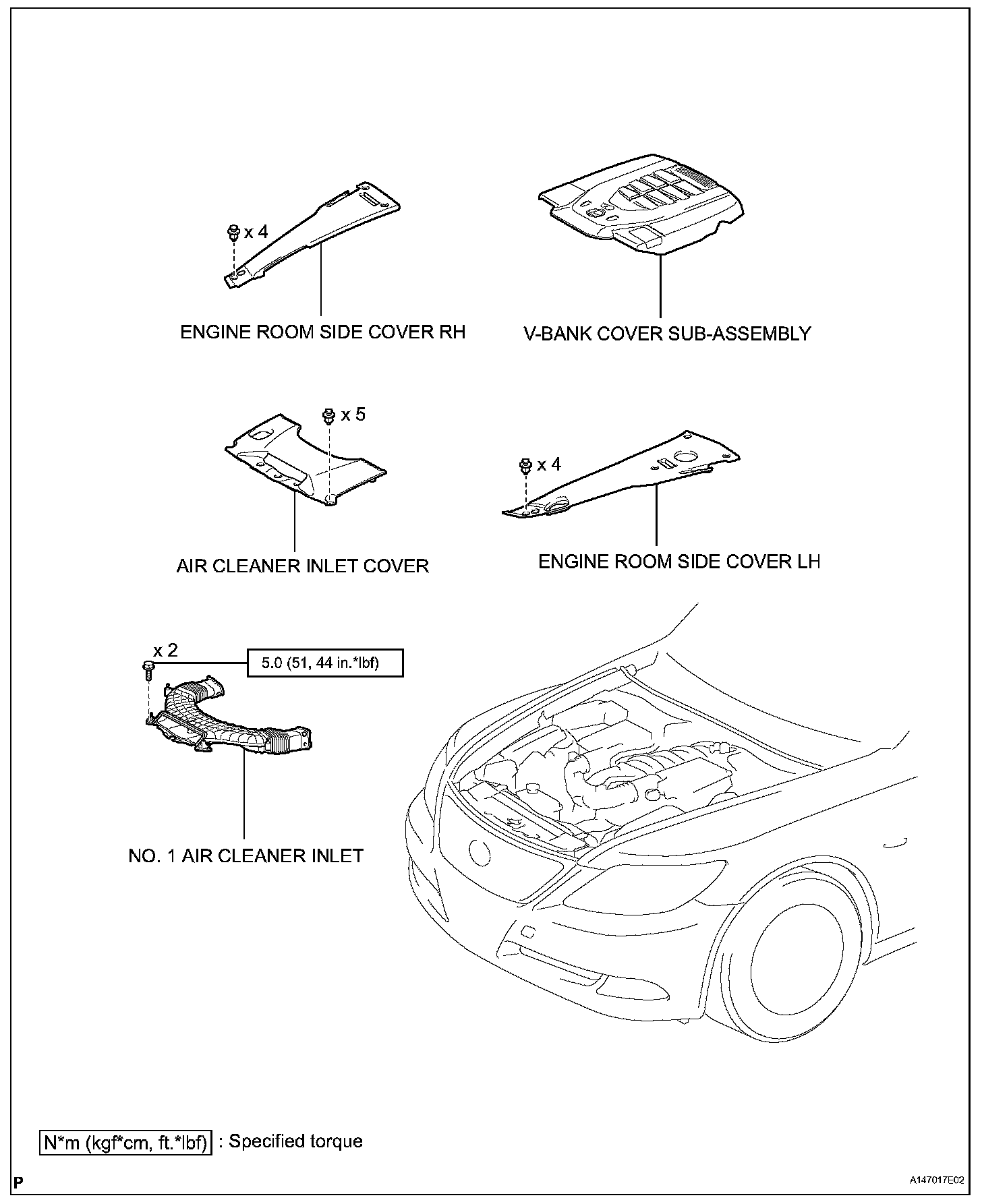

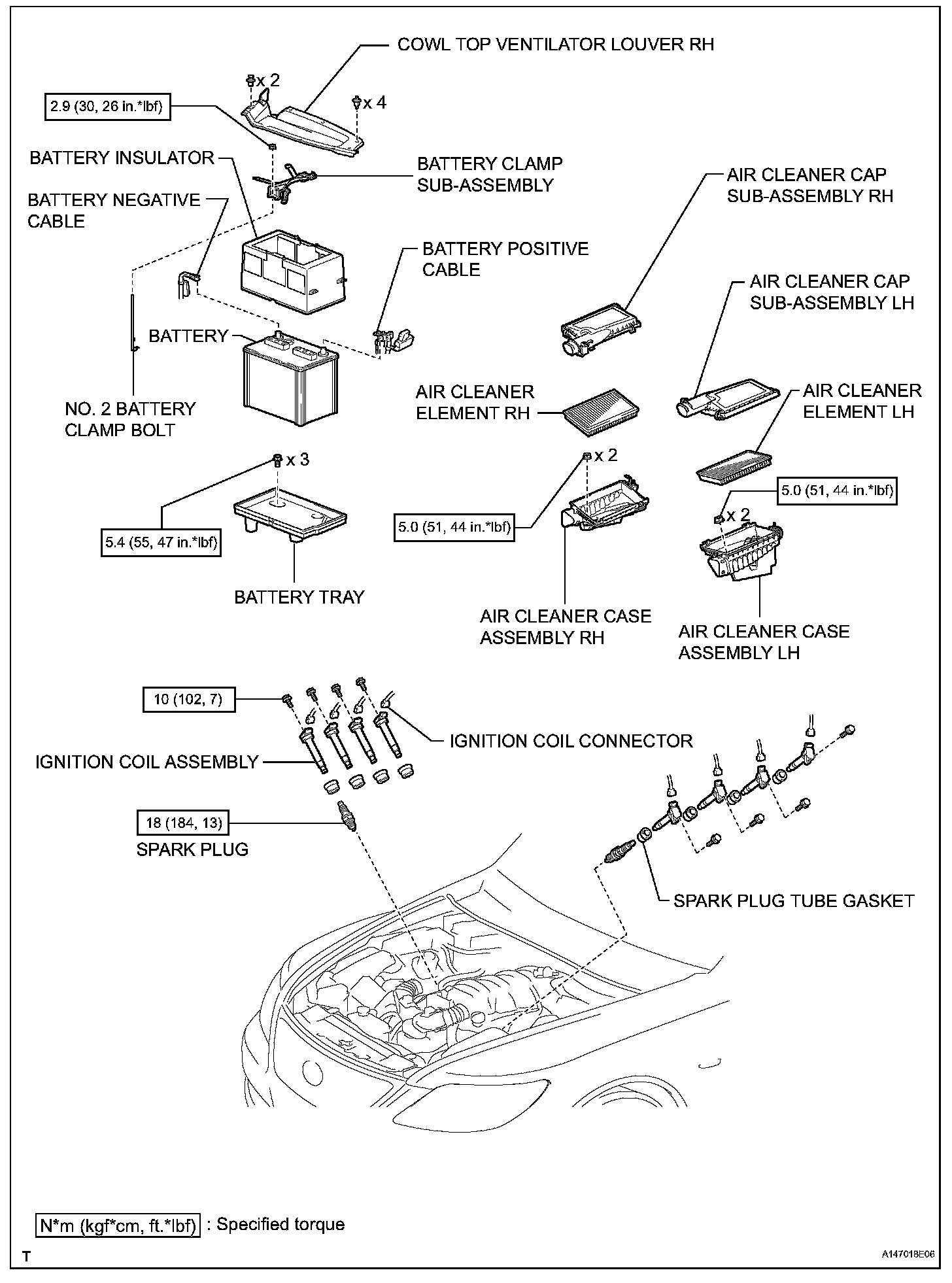

Ignition Coil And Spark Plug:

Ignition Coil And Spark Plug:

Ignition Coil And Spark Plug:
