Headlamp Alignment Control Module: Locations

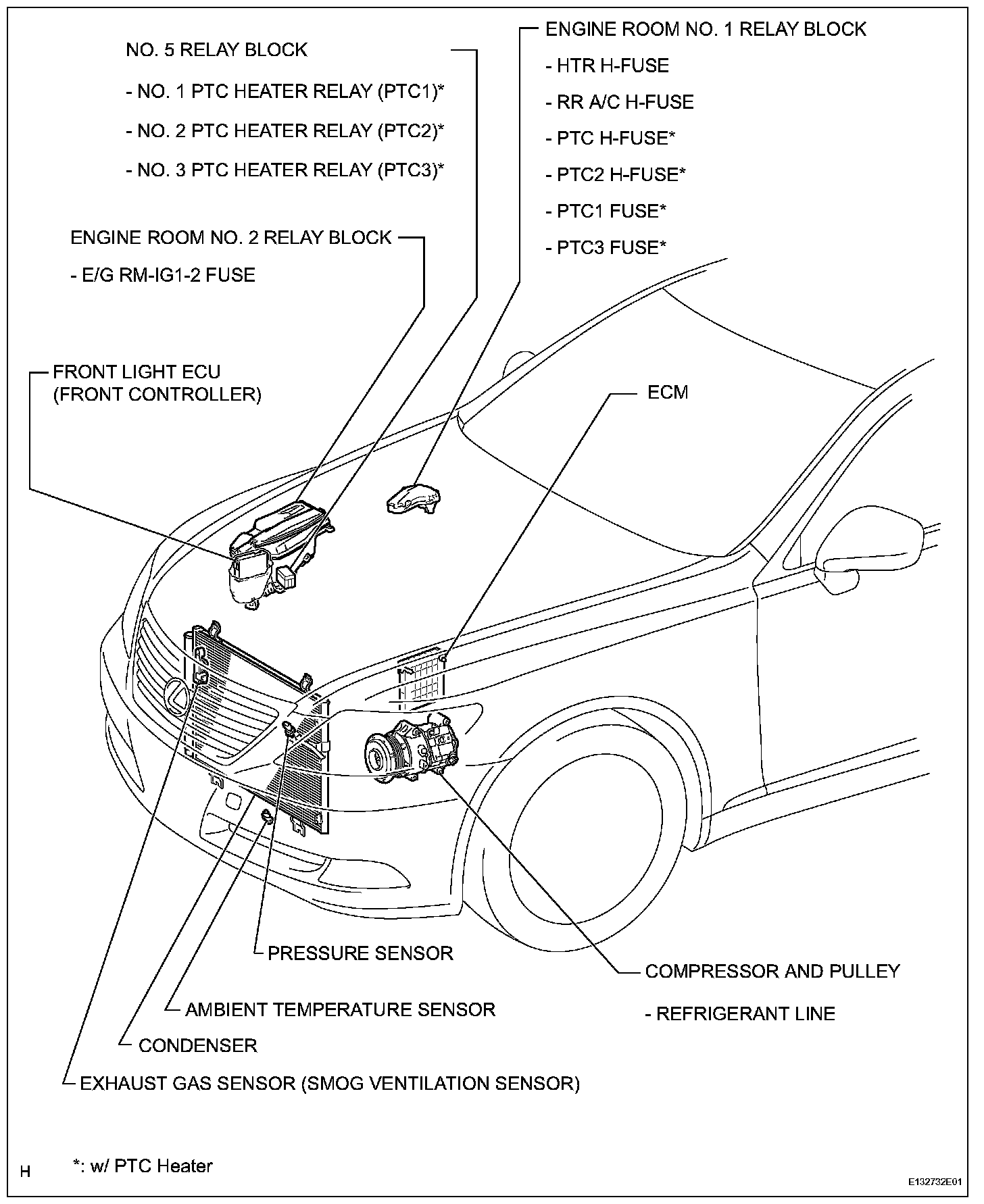

Air Conditioning System:

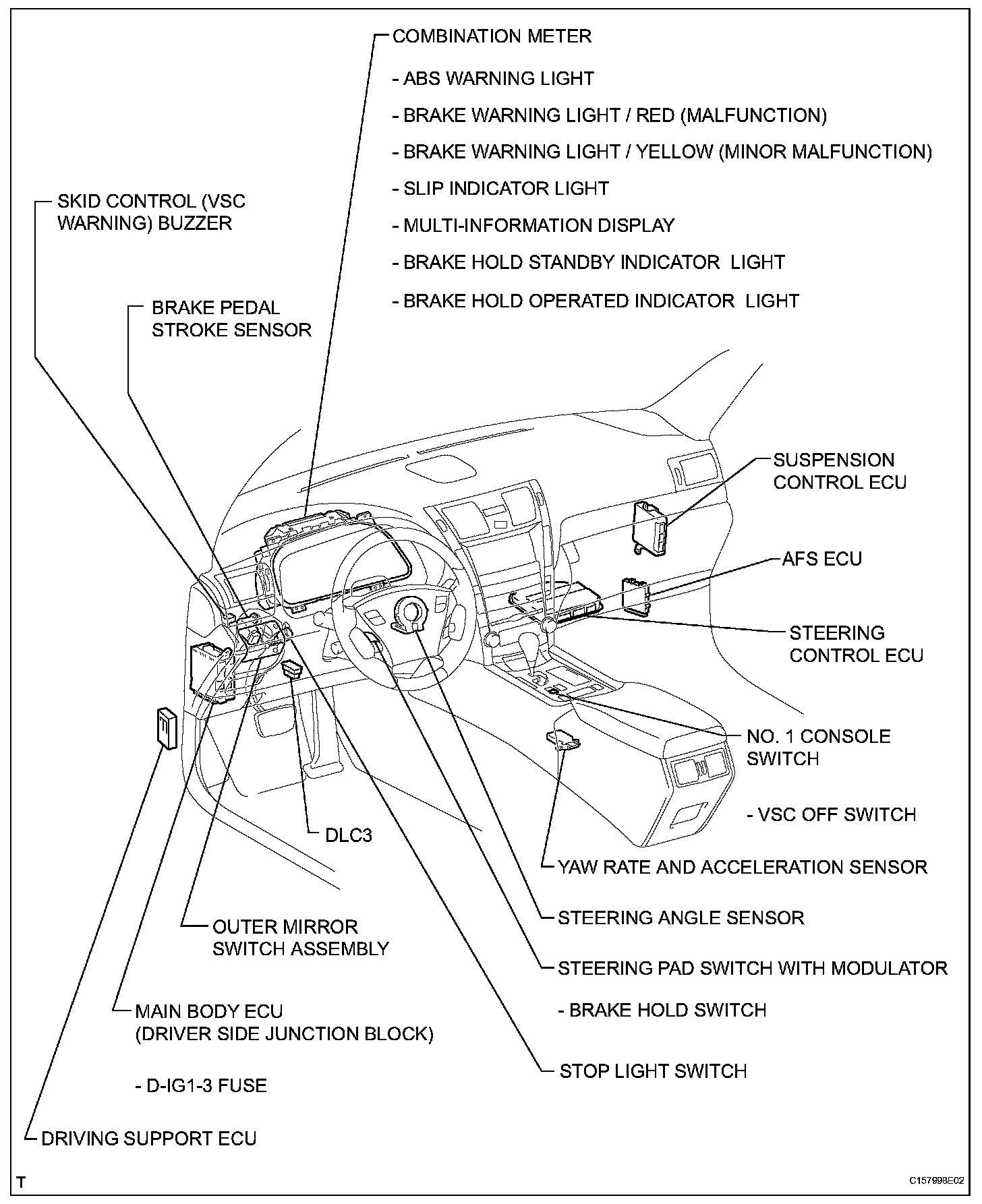

Electronically Controlled Brake System:



CAN Communication System:

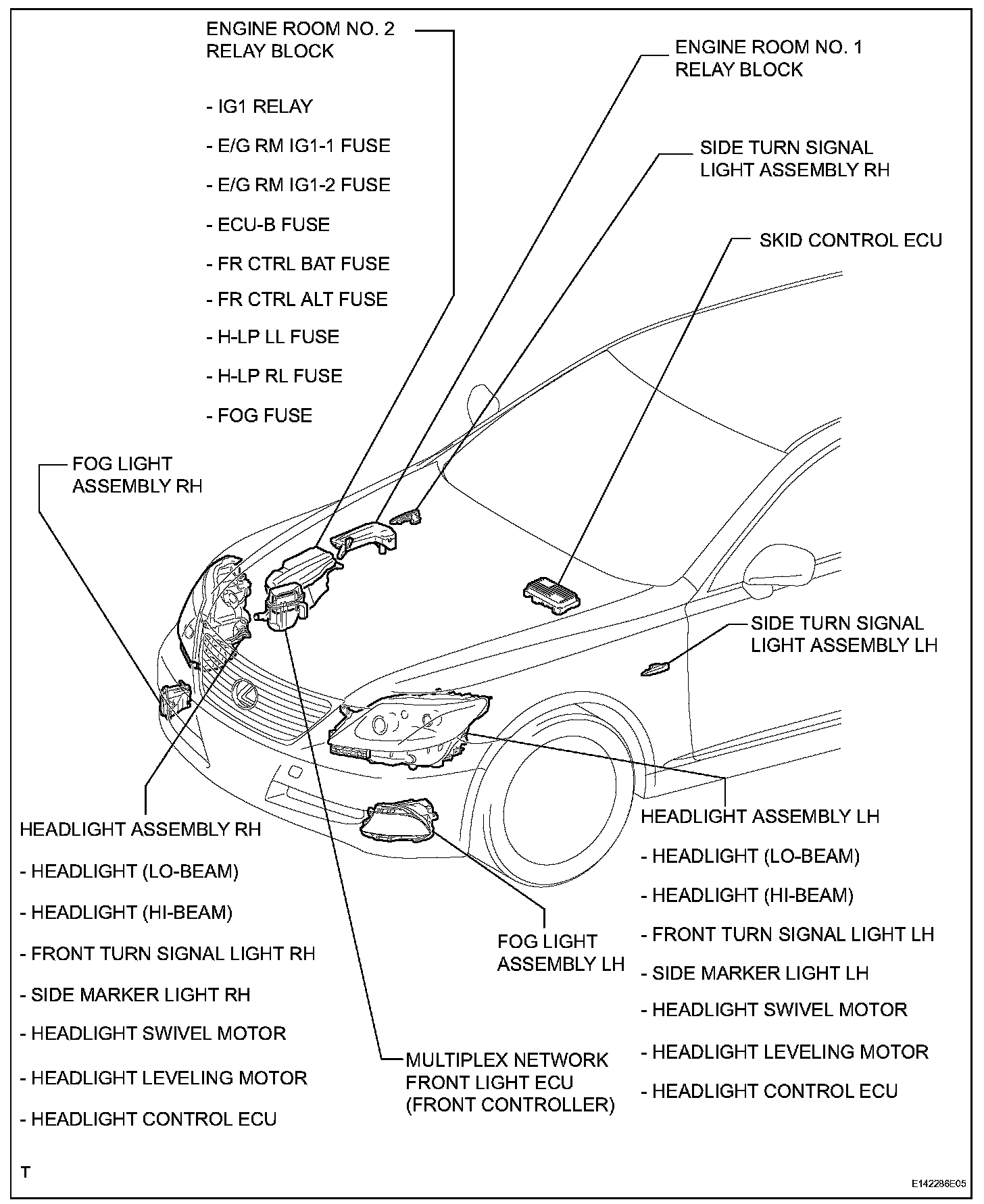

Lighting System:
