Front Door Lock: Components

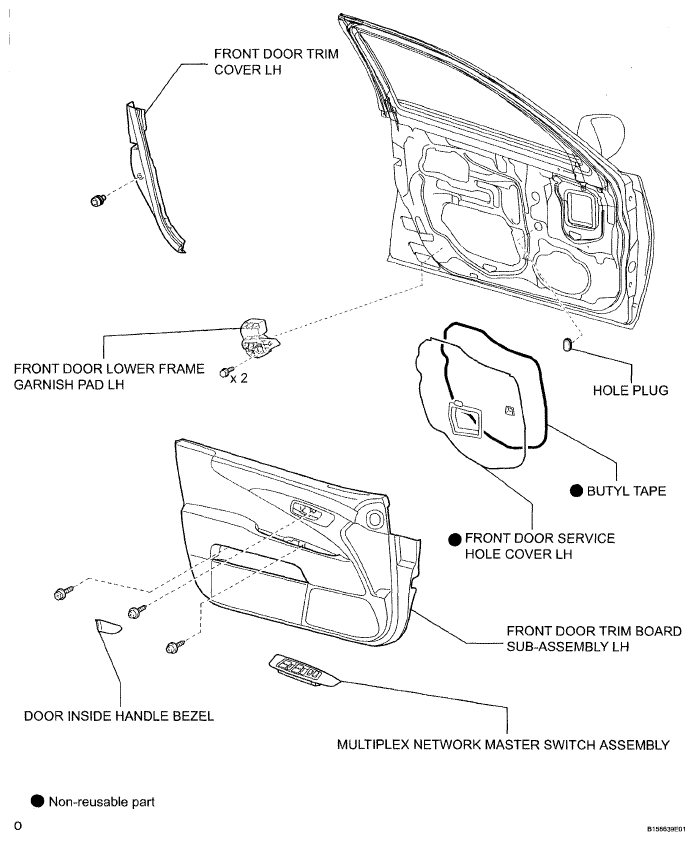

Fig 1: Identifying Front Door Lock Components (1 Of 2)
G04951732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

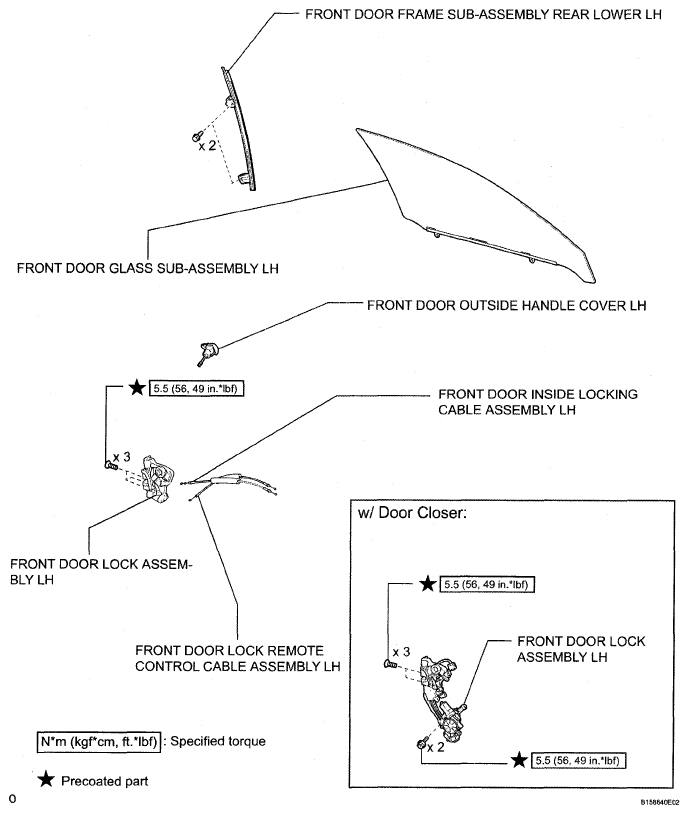

Fig 2: Front Door Lock Replacement Components With Torque Specifications (2 Of 2)
G04951733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
