Front Door Speaker: Components

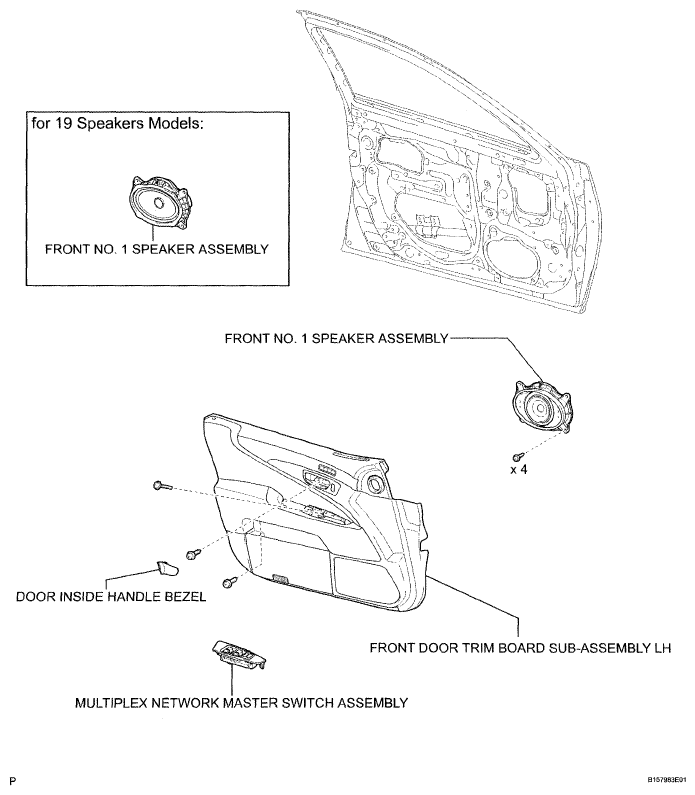

Fig 1: Identifying Front Door Speaker Components
G04954016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
