Inspection Procedure

  1. CHECK POWER DOOR LOCK OPERATION
    1. When the master switch assembly's door control switch is operated, check that the locked doors unlock.

      Result

      POWER DOOR LOCK OPERATION

      Result Proceed to
      Door locks operate normally OK
      Door locks do not operate normally NG

    NG: GO TO POWER DOOR LOCK CONTROL SYSTEM (See  POWER DOOR LOCK CONTROL SYSTEM   )

    OK: GO TO NEXT STEP

  2. READ VALUE OF INTELLIGENT TESTER OR TECHSTREAM
    1. Using the intelligent tester or Techstream, read the Data List.
      1. Intelligent tester

        P-DOOR (Front door ECU LH)

        INTELLIGENT TESTER - P-DOOR (FRONT DOOR ECU LH)

        Tester Display Measurement Item/Display Normal Condition Diagnostic Note
        ENTRY SENSOR Front passenger side door touch sensor / ON or OFF ON: Front passenger side door sensor is touched
        OFF: Front passenger side door sensor is not touched        		 -
        TRIGGER SW Front passenger side door outside handle lock switch / ON or OFF ON: Front passenger side door outside handle lock switch is pushed
        OFF: Front passenger side door outside handle lock switch is not pushed        		 -
      2. Techstream

        Passenger Door (Front door ECU LH)

        TECHSTREAM - PASSENGER DOOR (FRONT DOOR ECU LH)

        Tester Display Measurement Item/Display Normal Condition Diagnostic Note
        Entry Sensor Front passenger side door touch sensor / ON or OFF ON: Front passenger side door sensor is touched
        OFF: Front passenger side door sensor is not touched        		 -
        Outside Handle Trigger SW Front passenger side door outside handle lock switch / ON or OFF ON: Front passenger side door outside handle lock switch is pushed
        OFF: Front passenger side door outside handle lock switch is not pushed        		 -

      Result

      RESULT REFERENCE

      Result Proceed to
      Display does not change according to manual operation A
      Display changes according to manual operation B

    B: Go to step   9

    A: GO TO NEXT STEP

  3. CHECK FRONT DOOR ECU RH

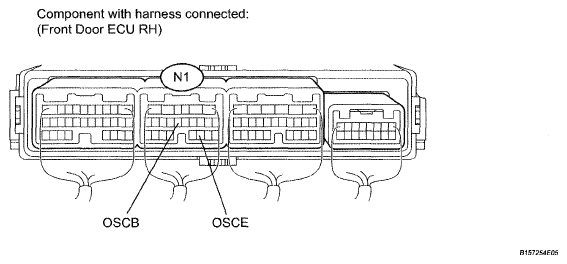

    Fig 1: Identifying N1 Front Door ECU Connector Terminal
    G04951655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      FRONT DOOR ECU RH

      Tester Connection Condition Specified Condition
      N1-12(OSCB)-N1-19 (OSCE) Always 11 to 14 V

    NG: REPLACE FRONT DOOR ECU RH  (See INSTALLATION )

    OK: GO TO NEXT STEP

  4. CHECK HARNESS AND CONNECTOR (DOOR ELECTRICAL KEY OSCILLATOR - FRONT DOOR ECU RH)

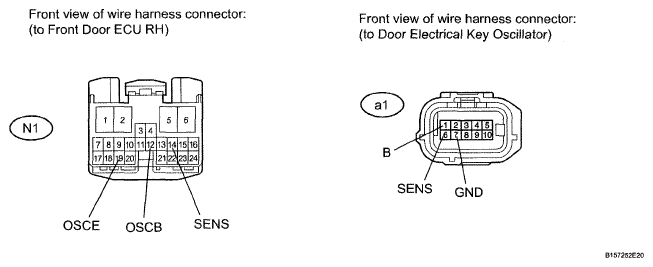

    Fig 2: Identifying a1 Door Electrical Key Oscillator - N1 Front Door ECU Connector Terminal
    G04951656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the a1 oscillator connector.
    2. Disconnect the N1 ECU connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      DOOR ELECTRICAL KEY OSCILLATOR - FRONT DOOR ECU RH

      Tester Connection Condition Specified Condition
      a1-1(B)-N1-12(OSCB) Always Below 1 Ω
      a1-6(SENS)-N1-14 (SENS) Always Below 1 Ω
      a1-7(GND)-N1-19 (OSCE) Always Below 1 Ω
      a1-1 (B) - Body ground Always 10 kΩ or higher
      a1-6 (SENS) - Body ground Always 10 kΩ or higher
      a1-7(GND)-Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO NEXT STEP

  5. CHECK HARNESS AND CONNECTOR (DOOR ELECTRICAL KEY OSCILLATOR - FRONT DOOR OUTSIDE HANDLE RH)
    Fig 3: Identifying a1 Door Electrical Key Oscillator - a2 Front Door Outside Handle Connector Terminal
    G04951657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the a1 oscillator connector.
    2. Disconnect the a2 handle connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      DOOR ELECTRICAL KEY OSCILLATOR - FRONT DOOR OUTSIDE HANDLE RH

      Tester Connection Condition Specified Condition
      a1-2(SGT1)-a2-6 (SGT1) Always Below 1 Ω
      a1-9(TRG-)-a2-1(TRG-) Always Below 1 Ω
      a1-2(SGT1)-Body ground Always 10 kΩ or higher
      a1-9(TRG-)-Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO NEXT STEP

  6. CHECK HARNESS AND CONNECTOR (FRONT DOOR ECU RH - FRONT DOOR OUTSIDE HANDLE RH)
    Fig 4: Identifying N1 Front Door ECU RH - a2 Front Door Outside Handle Connector Terminal
    G04951658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the a2 handle connector.
    2. Disconnect the N1 ECU connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      FRONT DOOR ECU RH - FRONT DOOR OUTSIDE HANDLE RH

      Tester Connection Condition Specified Condition
      a2-3(TRG+)-N1-20 (TRG+) Always Below 1 Ω
      a2-3 (TRG+) - Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO NEXT STEP

  7. CHECK DOOR ELECTRICAL KEY OSCILLATOR (OPERATION)
    1. Replace the door electrical key oscillator with a new one or normally functioning one (see INSTALLATION ).
    2. Check that the entry function operates normally.

      OK: Operates normally

    NG: Go to step 8

    OK: END (DOOR ELECTRICAL KEY OSCILLATOR IS DEFECTIVE)

  8. CHECK FRONT DOOR OUTSIDE HANDLE RH (OPERATION)
    1. Replace the front door outside handle RH with a new one or normally functioning one (see REMOVAL  ).
    2. Check that the entry function operates normally.

      OK: Operates normally

    NG: REPLACE FRONT DOOR ECU RH  (See INSTALLATION )

    OK: END (FRONT DOOR OUTSIDE HANDLE RH IS DEFECTIVE)

  9. CHECK WAVE ENVIRONMENT
    1. Bring the electrical key transmitter near the front passenger door outside handle, and perform a front passenger door entry lock and unlock operation check.
      Fig 5: Identifying Electrical Key Transmitter Position
      G04951659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: If the key is brought within 0.2 m (0.6 ft.) of the door handle, communication is not possible.

      HINT:

      • When the electrical key transmitter is brought near the front passenger door outside handle, the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.
      • If the inspection result is that the operation check is normal, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.

    B: AFFECTED BY WAVE INTERFERENCE

    A: GO TO NEXT STEP

  10. KEY DIAGNOSTIC MODE
    1. Diagnostic mode inspection (front passenger door outside oscillator)
      1. Connect the intelligent tester or Techstream to the DLC3.
      2. Turn the engine switch on (IG).
      3. Turn the tester on.
      4. Enter the following menus:
        1. Intelligent tester - Select: DIAGNOSIS / OBD/ MOBD / SMART ACCESS / ID UTILITY / SMART DAIGMODE / P + OVERHEAD /
        2. Techstream - Select: Body Electrical / Smart Access / Smart Communication Check / Overhead + Passenger Side /
      5. When the electrical key transmitter is in the position shown in the illustration, check that the wireless door lock buzzer sounds.
        Fig 6: Identifying Electrical Key Transmitter Position
        G04951660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        If the buzzer sounds, it can be determined that the front passenger seat outside transmitter is operating normally.

        OK: Wireless door lock buzzer sounds

    NG: Go to step 11

    OK: END (CERTIFICATION ECU IS DEFECTIVE)

  11. CHECK HARNESS AND CONNECTOR (DOOR ELECTRICAL KEY OSCILLATOR-CERTIFICATION ECU)

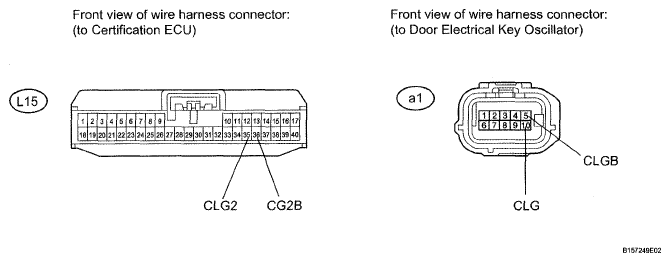

    Fig 7: Identifying a1 Door Electrical Key Oscillator - L15 Certification ECU Connector Terminal
    G04951661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the a1 oscillator connector.
    2. Disconnect the L15 ECU connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      DOOR ELECTRICAL KEY OSCILLATOR-CERTIFICATION ECU

      Tester Connection Condition Specified Condition
      a1-5 (CLGB) - L15-36 (CG2B) Always Below 1 Ω
      a1-10(CLG)-U5-35 (CLG2) Always Below 1 Ω
      a1-5 (CLGB)-Body ground Always 10 kΩ or higher
      a1-10(CLG)-Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO NEXT STEP

  12. CHECK HARNESS AND CONNECTOR (DOOR ELECTRICAL KEY OSCILLATOR - FRONT DOOR ECU RH)
    Fig 8: Identifying a1 Door Electrical Key Oscillator - N1 Front Door ECU Connector Terminal
    G04951638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the a1 oscillator connector.
    2. Disconnect the N1 ECU connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      DOOR ELECTRICAL KEY OSCILLATOR - FRONT DOOR ECU RH

      Tester Connection Condition Specified Condition
      a1-4(SEL)-N1-15(SEL) Always Below 1 Ω
      a1-4 (SEL) -Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO NEXT STEP

  13. CHECK HARNESS AND CONNECTOR (DOOR ELECTRICAL KEY OSCILLATOR - FRONT DOOR OUTSIDE HANDLE RH)

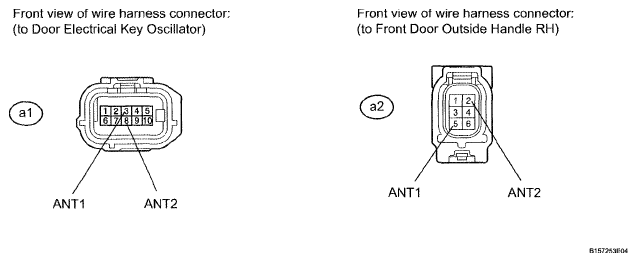

    Fig 9: Identifying a1 Door Electrical Key Oscillator - a2 Front Door Outside Handle Connector Terminal
    G04951663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the a1 oscillator connector.
    2. Disconnect the a2 handle connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      DOOR ELECTRICAL KEY OSCILLATOR - FRONT DOOR OUTSIDE HANDLE RH

      Tester Connection Condition Specified Condition
      a1-3(ANT1)-a2-5 (ANT1) Always Below 1 Ω
      a1-8(ANT2)-a2-2 (ANT2) Always Below 1 Ω
      a1-3(ANT1)-Body ground Always 10 kΩ or higher
      a1-8(ANT2)-Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO NEXT STEP

  14. CHECK DOOR ELECTRICAL KEY OSCILLATOR (OPERATION)
    1. Replace the door electrical key oscillator with a new one or normally functioning one (see INSTALLATION ).
    2. Check that the entry function operates normally.

      OK: Operates normally

    NG: Go to step 15

    OK: END (DOOR ELECTRICAL KEY OSCILLATOR IS DEFECTIVE)

  15. CHECK FRONT DOOR OUTSIDE HANDLE RH (OPERATION)
    1. Replace the front door outside handle RH with a new one or normally functioning one (see REMOVAL  ).
    2. check that the entry function operates normally.

      OK: Operates normally

    NG: Go to step 16

    OK: END (FRONT DOOR OUTSIDE HANDLE RH IS DEFECTIVE)

  16. CHECK FRONT DOOR ECU RH (OPERATION)
    1. Replace the front door ECU RH with a new one or normally functioning one (see INSTALLATION ).
    2. Check that the entry function operates normally.

      OK: Operates normally

    NG: REPLACE CERTIFICATION ECU

    OK: END (FRONT DOOR ECU RH IS DEFECTIVE)
