Inspection Procedure

  1. CHECK POWER DOOR LOCK OPERATION
    1. When the master switch assembly's door control switch is operated, check that the locked doors unlock.

      Result

      POWER DOOR LOCK OPERATION

      Result Proceed to
      Door locks operate normally OK
      Door locks do not operate normally NG

    NG: GO TO POWER DOOR LOCK CONTROL SYSTEM (See  POWER DOOR LOCK CONTROL SYSTEM   )

    OK: GO TO NEXT STEP

  2. READ VALUE OF INTELLIGENT TESTER OR TECHSTREAM
    1. Using the intelligent tester or Techstream, read the Data List.
      1. Intelligent tester

        RR-DOOR (Rear door ECU RH)

        INTELLIGENT TESTER - RR-DOOR (REAR DOOR ECU RH)

        Tester Display Measurement Item/Display Normal Condition Diagnostic Note
        ENTRY SENSOR Rear RH side door touch sensor / ON or OFF ON: Rear RH side door sensor is touched
        OFF: Rear RH side door sensor is not touched
        -
        TRIGGER SW Rear RH side door outside handle lock switch / ON or OFF ON: Rear RH side door outside handle lock switch is pushed
        OFF: Rear RH side door outside handle lock switch is not pushed
        -
      2. Techstream

        Rear Right Door (Rear door ECU RH)

        TECHSTREAM - REAR RIGHT DOOR (REAR DOOR ECU RH)

        Tester Display Measurement Item/Display Normal Condition Diagnostic Note
        Entry Sensor Rear RH side door touch sensor / ON or OFF ON: Rear RH side door sensor is touched
        OFF: Rear RH side door sensor is not touched
        -
        Outside Handle Trigger SW Rear RH side door outside handle lock switch / ON or OFF ON: Rear RH side door outside handle lock switch is pushed
        OFF: Rear RH side door outside handle lock switch is not pushed
        -

        Result

        RESULT REFERENCE

        Result Proceed to
        Display does not change according to manual operation A
        Display changes according to manual operation B

    B: Go to step   9

    A: GO TO NEXT STEP

  3. CHECK REAR DOOR ECU RH

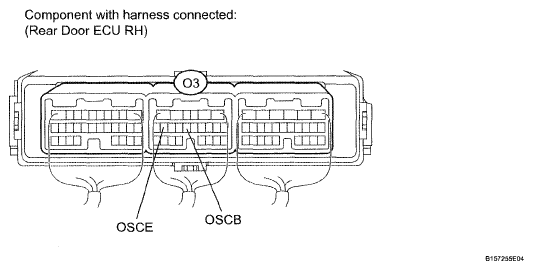

    Fig 1: Identifying Rear Door ECU Connector Terminal
    G04951673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      REAR DOOR ECU RH

      Tester Connection Condition Specified Condition
      O3-12 (OSCB)-O3-15 (OSCE) Always 11 to 14 V

    NG: REPLACE REAR DOOR ECU RH  (See REAR DOOR )

    OK: GO TO NEXT STEP

  4. CHECK HARNESS AND CONNECTOR (DOOR ELECTRICAL KEY OSCILLATOR - REAR DOOR ECU RH)

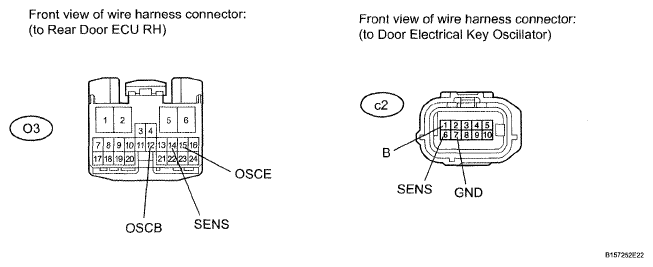

    Fig 2: Identifying c2 Door Electrical Key Oscillator - O3 Rear Door ECU Connector Terminal
    G04951674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the c2 oscillator connector.
    2. Disconnect the O3 ECU connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      DOOR ELECTRICAL KEY OSCILLATOR - REAR DOOR ECU RH

      Tester Connection Condition Specified Condition
      C2-1 (B)-O3-12 (OSCB) Always Below 1 Ω
      c2-6 (SENS) - O3-14 (SENS) Always Below 1 Ω
      c2-7 (GND)-O3-15 (OSCE) Always Below 1 Ω
      c2-1 (B) - Body ground Always 10 kΩ or higher
      c2-6 (SENS) - Body ground Always 10 kΩ or higher
      c2-7 (GND) - Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO NEXT STEP

  5. CHECK HARNESS AND CONNECTOR (DOOR ELECTRICAL KEY OSCILLATOR - REAR DOOR OUTSIDE HANDLE RH)

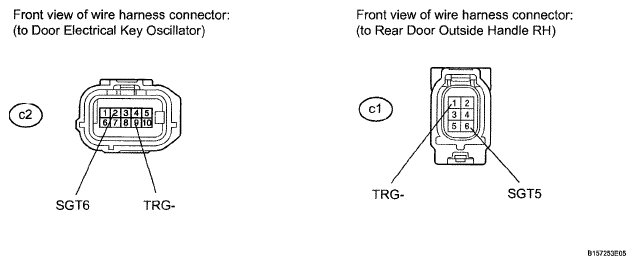

    Fig 3: Identifying c2 Door Electrical Key Oscillator - c1 Rear Door Outside Handle Connector Terminal
    G04951675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the c1 handle connector.
    2. Disconnect the c2 oscillator connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      DOOR ELECTRICAL KEY OSCILLATOR - REAR DOOR OUTSIDE HANDLE RH

      Tester Connection Condition Specified Condition
      c2-2 (SGT6)-d-6 (SGT5) Always Below 1 Ω
      c2-9 (TRG-)-c1-1 (TRG-) Always Below 1 Ω
      C2-2 (SGT6) - Body ground Always 10 kΩ or higher
      c2-9 (TRG-) - Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO NEXT STEP

  6. CHECK HARNESS AND CONNECTOR (REAR DOOR ECU RH - REAR DOOR OUTSIDE HANDLE RH)
    Fig 4: Identifying O3 Rear Door ECU RH - c1 Rear Door Outside Handle RH Connector Terminal
    G04951676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the d handle connector.
    2. Disconnect the O3 ECU connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      REAR DOOR ECU RH - REAR DOOR OUTSIDE HANDLE RH

      Tester Connection Condition Specified Condition
      d-3(TRG+)-O3-20 (TRG+) Always Below 1 Ω.
      Cl-3(TRG+)-Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO NEXT STEP

  7. CHECK DOOR ELECTRICAL KEY OSCILLATOR (OPERATION)
    1. Replace the door electrical key oscillator with a new one or normally functioning one (see REAR DOOR ).
    2. Check that the entry function operates normally.

      OK: Operates normally

    NG: Go to step 8

    OK: END (DOOR ELECTRICAL KEY OSCILLATOR IS DEFECTIVE)

  8. CHECK REAR DOOR OUTSIDE HANDLE RH (OPERATION)
    1. Replace the rear door outside handle RH with a new one or normally functioning one (see REMOVAL  ).
    2. Check that the entry function operates normally.

      OK: Operates normally

    NG: REPLACE REAR DOOR ECU RH  (See REAR DOOR )

    OK: END (REAR DOOR OUTSIDE HANDLE RH IS DEFECTIVE)

  9. CHECK WAVE ENVIRONMENT
    1. Bring the electrical key transmitter near the rear right door outside handle, and perform a rear right door entry lock and unlock operation check.
      Fig 5: Identifying Electrical Key Transmitter Position
      G04951627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: If the key is brought within 0.2 m (0.6 ft.) of the door handle, communication is not possible.

      HINT:

      • When the electrical key transmitter is brought near the rear right passenger door outside handle, the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.
      • If the inspection result is that the operation check is normal, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.

      Result

      WAVE ENVIRONMENT

      Result Proceed to
      Operation check fails A
      Operation check is normal B

    B: AFFECTED BY WAVE INTERFERENCE

    A: GO TO NEXT STEP

  10. KEY DIAGNOSTIC MODE
    1. Diagnostic mode inspection (rear door RH outside oscillator)
      1. Connect the intelligent tester or Techstream to the DLC3.
      2. Turn the engine switch on (IG).
      3. Turn the tester on.
      4. Enter the following menus:
        1. Intelligent tester - Select: DIAGNOSIS / OBD/ MOBD / SMART ACCESS / ID UTILITY / SMART DAIGMODE / DR + OVERHEAD /
        2. Techstream - Select: Body Electrical/ Smart Access / Smart Communication Check / Overhead + Driver Side Rear /
      5. When the electrical key transmitter is in the position shown in the illustration, check that the wireless door lock buzzer sounds.

        HINT:

        If the buzzer sounds, it can be determined that the rear right seat outside transmitter is operating normally.

        OK: Wireless door lock buzzer sounds

        Fig 6: Identifying Electrical Key Transmitter Position
        G04951632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: Go to step 11

    OK: END (CERTIFICATION ECU IS DEFECTIVE)

  11. CHECK HARNESS AND CONNECTOR (DOOR ELECTRICAL KEY OSCILLATOR-CERTIFICATION ECU)

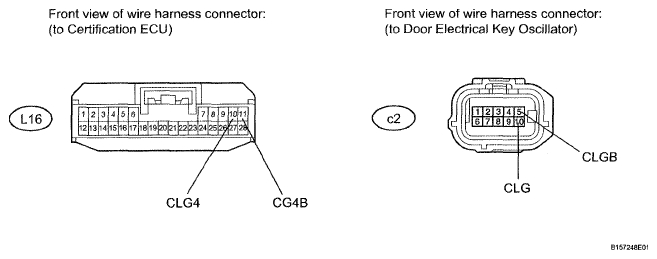

    Fig 7: Identifying c2 Door Electrical Key Oscillator - L16 Certification ECU Connector Terminal
    G04951679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the c2 oscillator connector.
    2. Disconnect the L16 ECU connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      DOOR ELECTRICAL KEY OSCILLATOR-CERTIFICATION ECU

      Tester Connection Condition Specified Condition
      C2-S (CLGB) - L16-11 (CG4B) Always Below 1 Ω
      c2-10 (CLG)-L16-10 (CLG4) Always Below 1 Ω
      c2-5 (CLGB) - Body ground Always 10 kΩ or higher
      c2-10 (CLG)-Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO NEXT STEP

  12. CHECK HARNESS AND CONNECTOR (DOOR ELECTRICAL KEY OSCILLATOR - REAR DOOR ECU RH)
    Fig 8: Identifying c2 Door Electrical Key Oscillator - O3 Rear Door ECU Connector Terminal
    G04951642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the c2 oscillator connector.
    2. Disconnect the O3 ECU connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      DOOR ELECTRICAL KEY OSCILLATOR - REAR DOOR ECU RH

      Tester Connection Condition Specified Condition
      C2-4 (SEL)-O3-16(SEL) Always Below 1 Ω
      c2-4 (SEL) - Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO NEXT STEP

  13. CHECK HARNESS AND CONNECTOR (DOOR ELECTRICAL KEY OSCILLATOR - REAR DOOR OUTSIDE HANDLE RH)

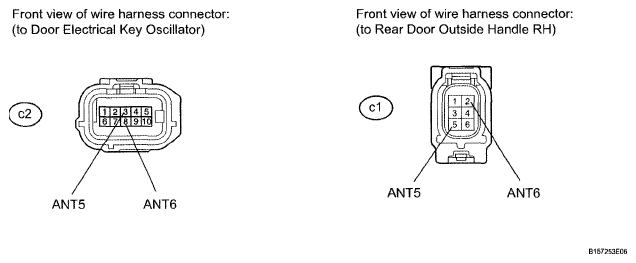

    Fig 9: Identifying c2 Door Electrical Key Oscillator - c1 Rear Door Outside Handle Connector Terminal
    G04951681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the d handle connector.
    2. Disconnect the c2 oscillator connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      DOOR ELECTRICAL KEY OSCILLATOR - REAR DOOR OUTSIDE HANDLE RH

      Tester Connection Condition Specified Condition
      c2-3 (ANT5)-c1-5 (ANT5) Always Below 1 Ω
      c2-8 (ANT6)-c1-2 (ANT6) Always Below 1 Ω
      c2-3 (ANT5) - Body ground Always 10 kΩ or higher
      c2-8 (ANT6) - Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: GO TO NEXT STEP

  14. CHECK DOOR ELECTRICAL KEY OSCILLATOR (OPERATION)
    1. Replace the door electrical key oscillator with a new one or normally functioning one (see REAR DOOR ).
    2. Check that the entry function operates normally.

      OK: Operates normally

    NG: Go to step 15

    OK: END (DOOR ELECTRICAL KEY OSCILLATOR IS DEFECTIVE)

  15. CHECK REAR DOOR OUTSIDE HANDLE RH (OPERATION)
    1. Replace the rear door outside handle RH with a new one or normally functioning one (see REMOVAL  ).
    2. Check that the entry function operates normally.

      OK: Operates normally

    NG: Go to step 16

    OK: END (REAR DOOR OUTSIDE HANDLE RH IS DEFECTIVE)

  16. CHECK REAR DOOR ECU RH (OPERATION)
    1. Replace the rear door ECU RH with a new one or normally functioning one (see REAR DOOR ).
    2. Check that the entry function operates normally.

      OK: Operates normally

    NG: REPLACE CERTIFICATION ECU

    OK: END (REAR DOOR ECU RH IS DEFECTIVE)
