Front Door Window Frame Moulding: Components

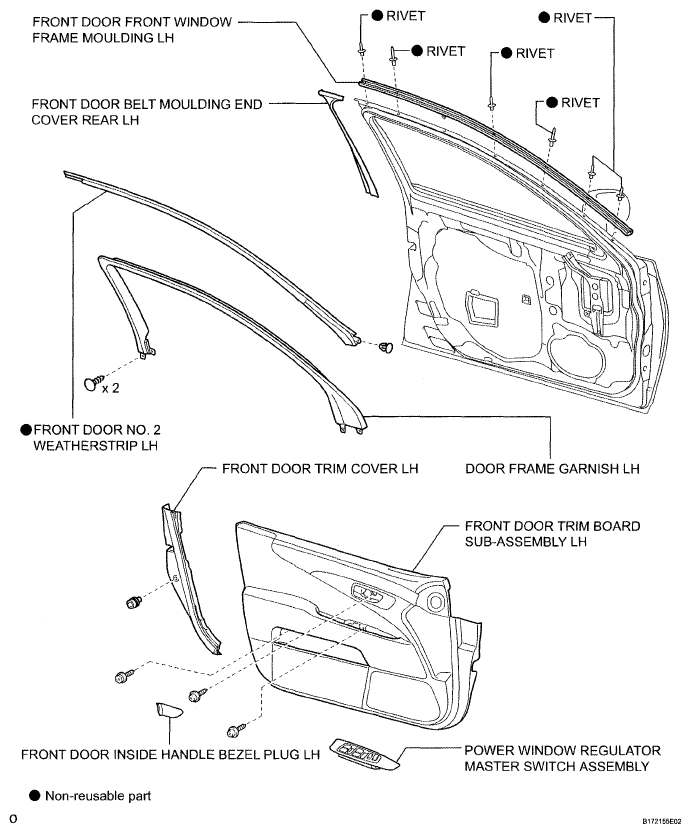

Fig 1: Identifying Front Door Window Frame Moulding Components
G04946602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
