Rocker Panel Moulding: Components

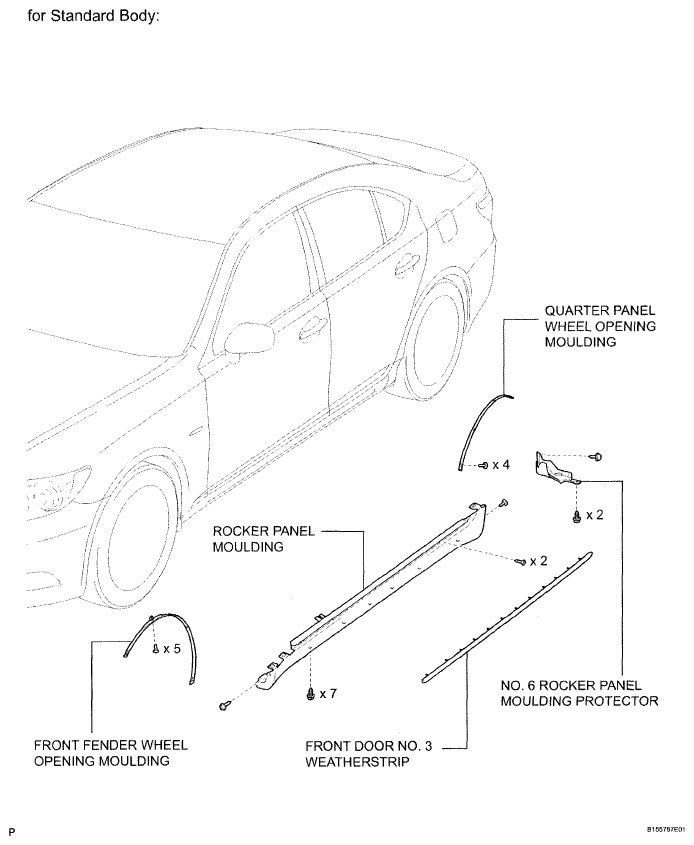

Fig 1: Identifying Rocker Panel Moulding Components (1 Of 4)
G04946568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

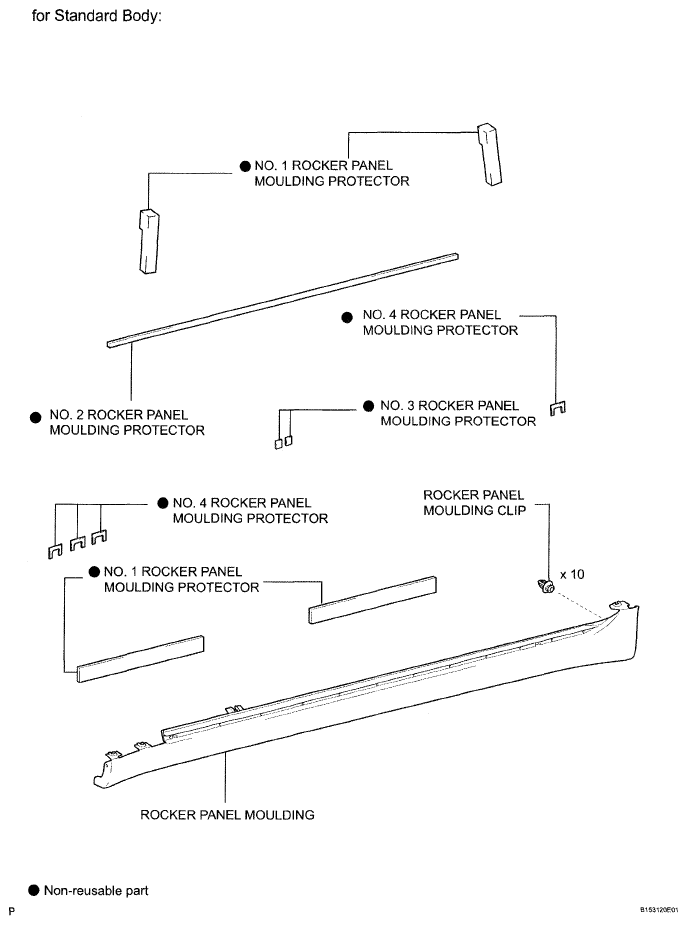

Fig 2: Identifying Rocker Panel Moulding Components (2 Of 4)
G04946569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Rocker Panel Moulding Components (3 Of 4)
G04946570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

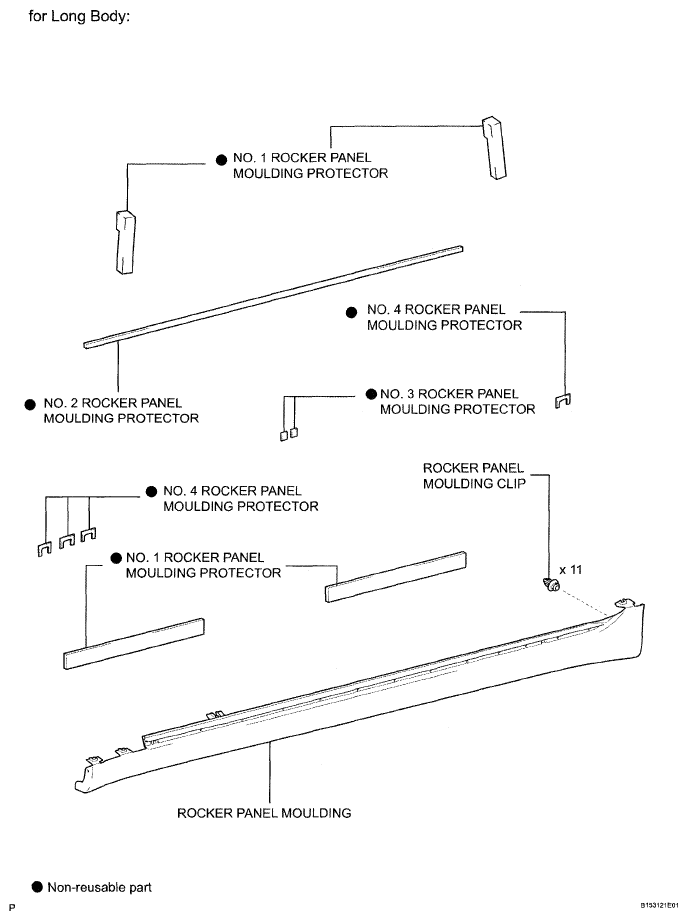

Fig 4: Identifying Rocker Panel Moulding Components (4 Of 4)
G04946571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
