Cooling System (Mechanical): Cooling: Radiator: Components

Fig 1: Identifying Radiator Components (1 Of 3)
G04948217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

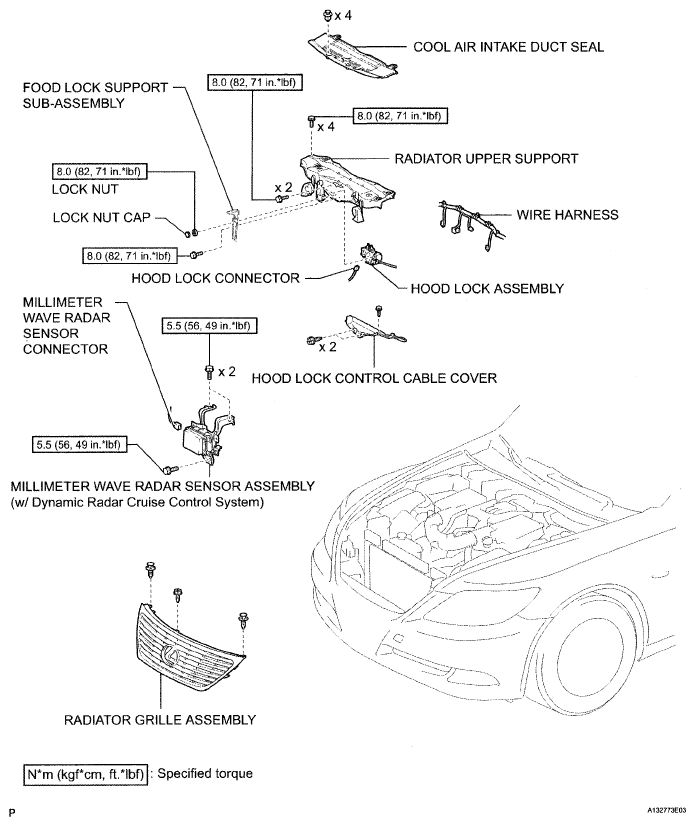

Fig 2: Identifying Radiator Components (2 Of 3)
G04948218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

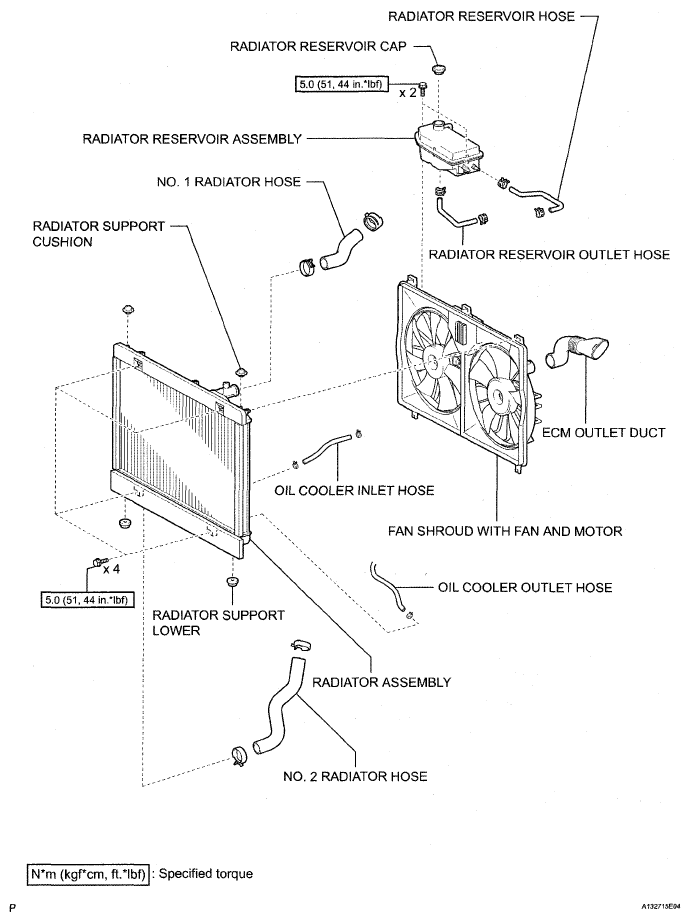

Fig 3: Identifying Radiator Components (3 Of 3)
G04948219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
