Cooling System (Mechanical): Cooling: Thermostat: Components

Fig 1: Identifying Thermostat Components (1 Of 2)
G04948173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

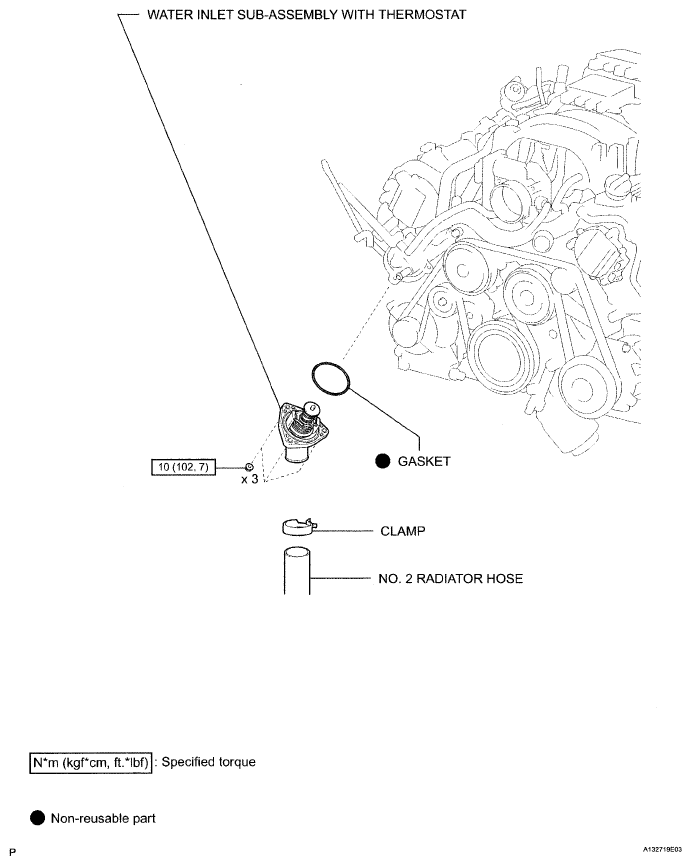

Fig 2: Identifying Thermostat Components (2 Of 2)
G04948174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
