Heater Core: Components

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

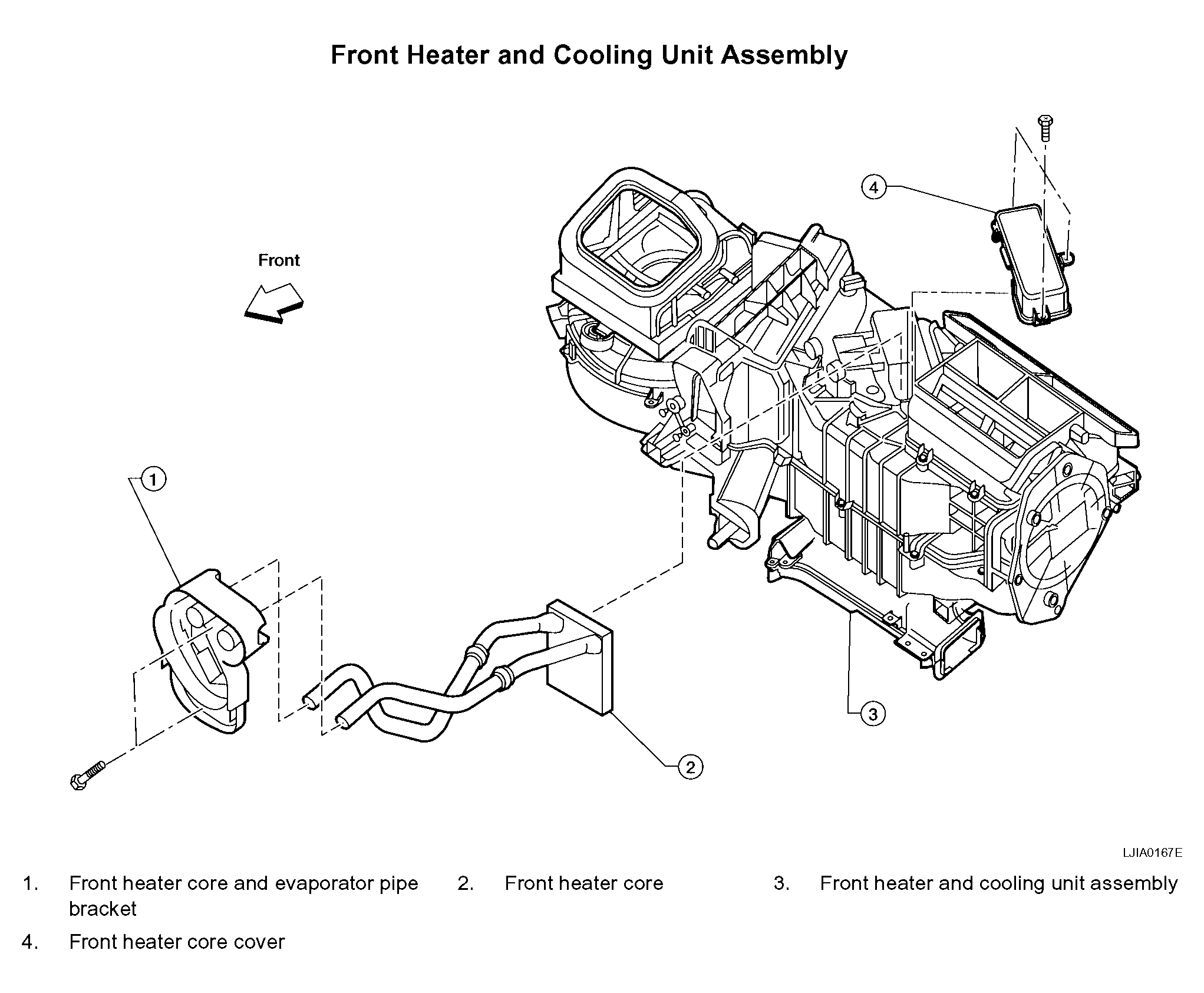

Fig 1: Identifying Heater Core Components (Front)

Courtesy of NISSAN MOTOR CO., U.S.A.

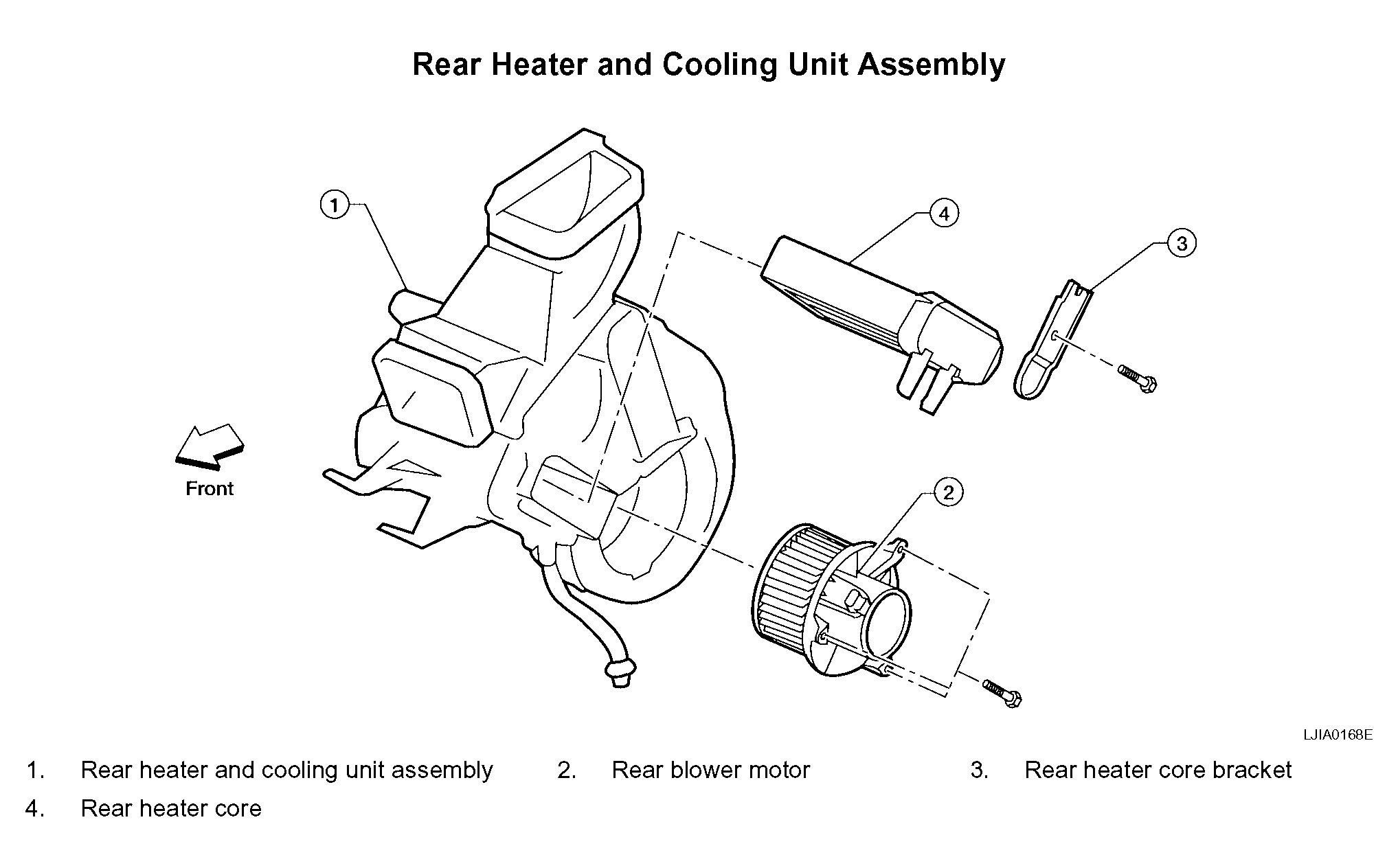

Fig 2: Identifying Heater Core Components (Rear)

Courtesy of NISSAN MOTOR CO., U.S.A.
