Dowel Pin Alignment: Installation

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Installation is in the reverse order of removal after the following:

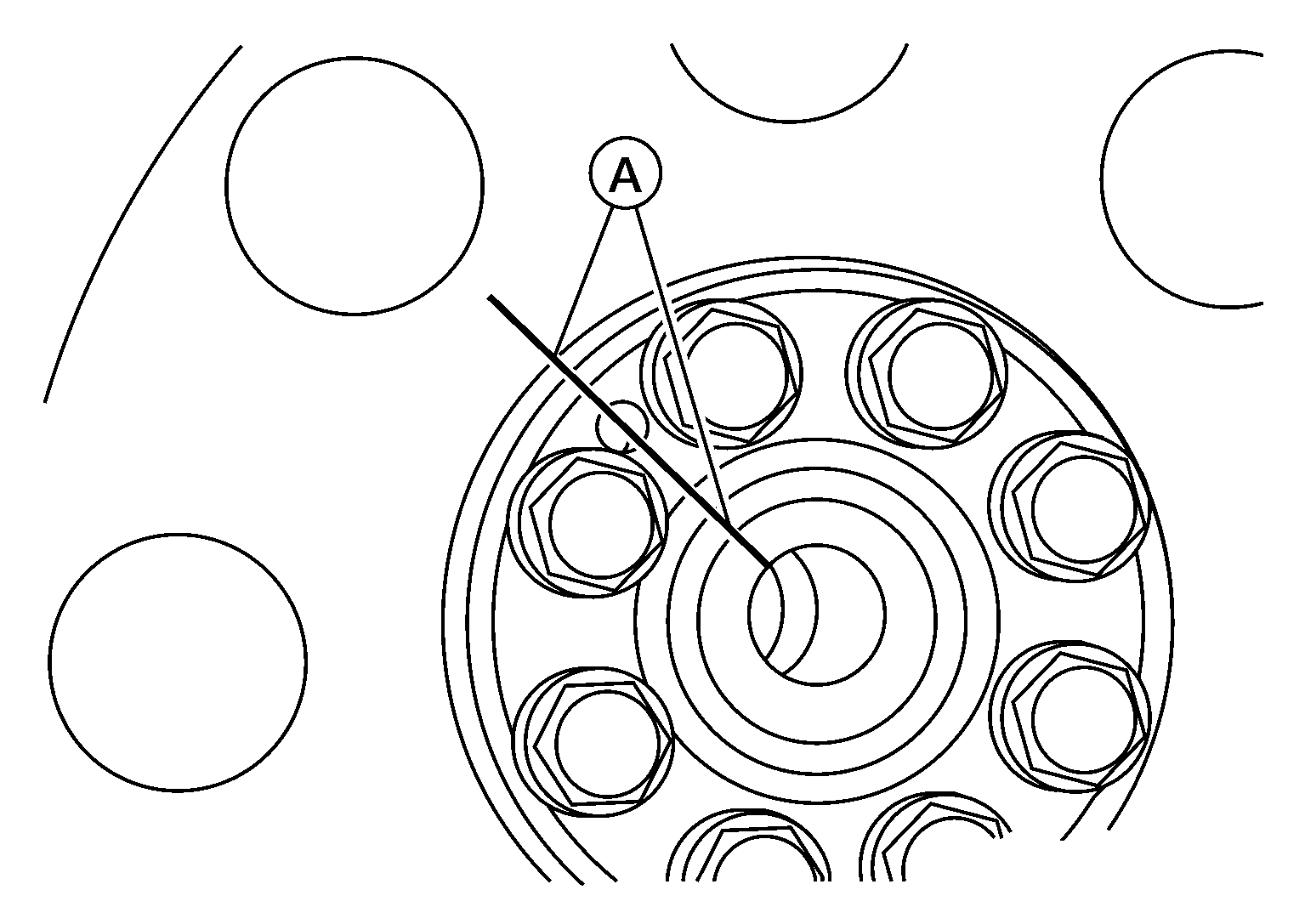

    • When installing the drive plate to the crankshaft, use the match mark (A) as shown to correctly align the crankshaft side dowel pin to the drive plate side dowel pin hole.
      • Fig 1: Identifying Drive Plate To Crankshaft Match Mark
      G05880798Courtesy of NISSAN MOTOR CO., U.S.A.
    • Install the drive plate and the reinforcement plate in the direction as shown.
      • Fig 2: Identifying Reinforce Plate
      G04878484Courtesy of NISSAN MOTOR CO., U.S.A.
    • Tighten the drive plate bolts in a diagonal pattern in two steps. Refer to "DISASSEMBLY AND ASSEMBLY ".
