Timing Chain: Component: Notes

WARNING: This page is about a different car, the 2009 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

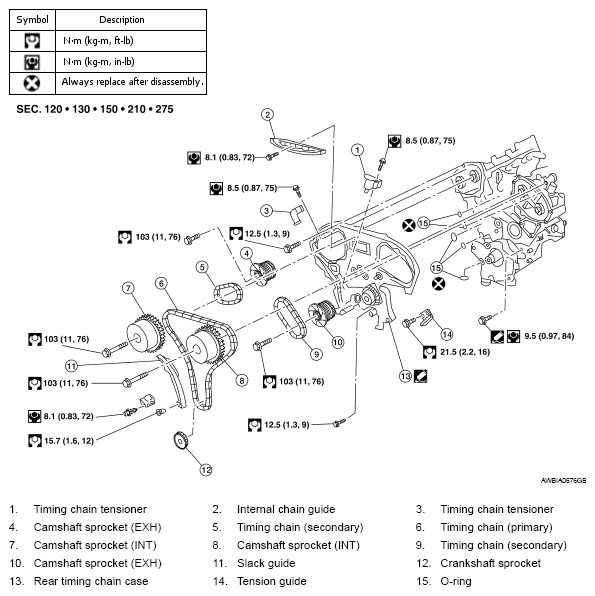

Fig 1: Timing Chain Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "PRECAUTION FOR LIQUID GASKET ".
Before installation, wipe off any protruding sealant.

CAUTION:

After removing timing chain, do not turn the crankshaft and camshaft separately, or the valves will strike the pistons.
When installing camshafts, chain tensioners, oil seals, or other sliding parts, lubricate contacting surfaces with new engine oil.
Apply new engine oil to bolt threads and seat surfaces when installing camshaft sprockets, camshaft brackets, and crankshaft pulley.
Before disconnecting fuel hose, release fuel pressure. Refer to "INSPECTION ".
Before removing the upper oil pan, remove the crankshaft position sensor (POS).
Be careful not to damage sensor edges.
Do not spill engine oil or coolant on drive belts.
