DCC Fuse Installation During PDS (PD066-06)

Publication date: 2006-11-14
Reference number: PD066-06

DCC FUSE INSTALLATION DURING PDS

TECHNICAL SERVICE BULLETIN

Reference Number(s): PD066-06, Date of Issue: November 14, 2006

LEXUS:	2007 LS 460
Section:	PRE-DELIVERY SERVICE
COPYRIGHT:	© 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002

Superceded Bulletin(s): PD066-06, Date of Issue: September 22, 2006

NOTE:

November 14, 2006: The note in step 3 has been updated.

Previous versions of this TSIB should be discarded.

Introduction

The DCC fuses (30A) have been removed from the LS 460 at the assembly plant to reduce parasitic draw during transportation and storage.

The DCC fuses are stored in the blank space of the fuse block in the engine compartment and must be installed to their original locations during Pre-Delivery Service (PDS).

Applicable Vehicles

2007 model year LS 460 vehicles.

Warranty Information

WARRANTY INFORMATION

OP CODE	DESCRIPTION	TIME	OFP	T1	T2
N/A	Not Applicable to Warranty	-	-	-	-

Installation Procedure

Push the core of the clips of the engine compartment side cover and remove the clips. Then remove the engine compartment side cover.
Make sure that the wheels are pointing straight ahead and the steering wheel is centered before installing the DCC fuses.

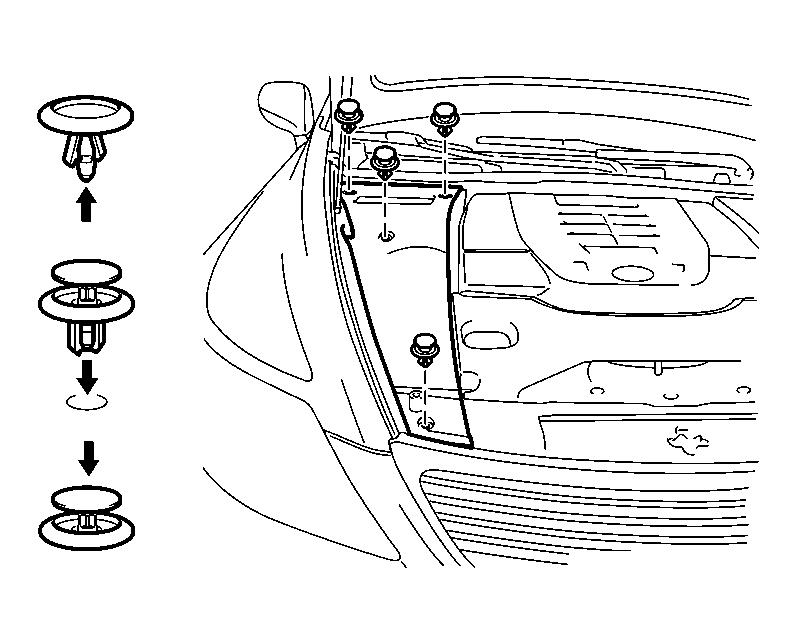

Fig 1: Identifying Engine Compartment Side Cover & Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
With the ignition switch OFF, install the DCC fuses in their original locations in the engine compartment fuse block.

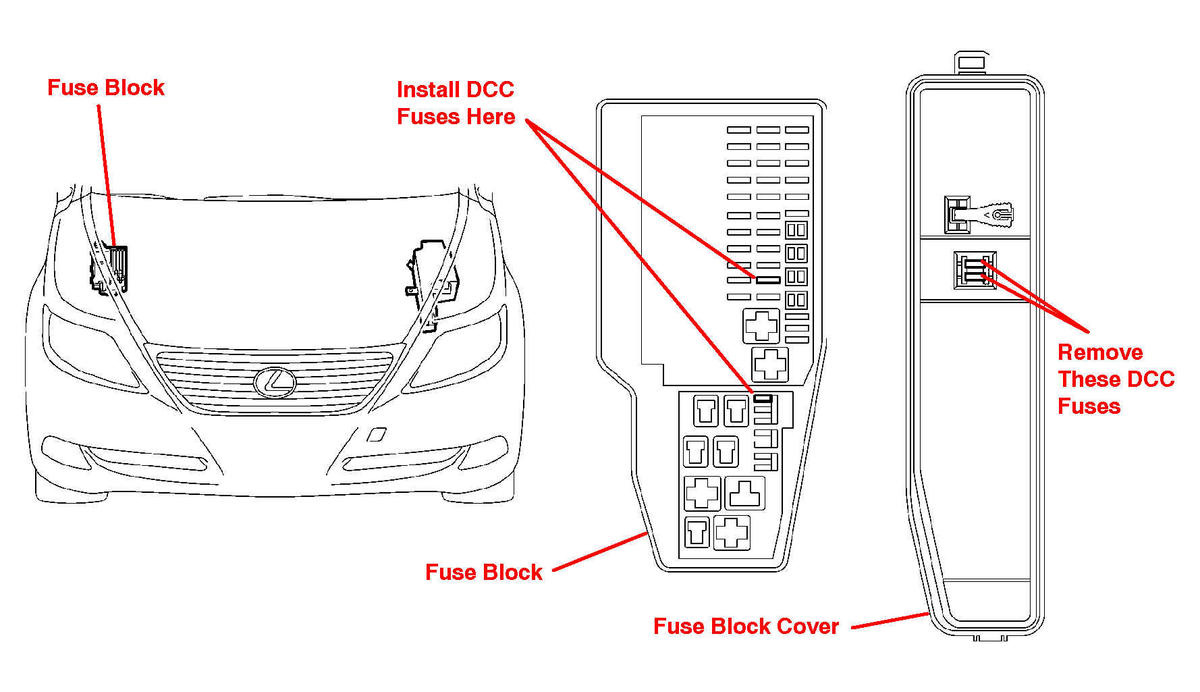

Fig 2: Identifying DCC Fuse Locations
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE:
- The procedure above is necessary to perform the VGRS initialization correctly.
- While the vehicle is stored at the dealership, disconnect the negative (-) battery terminal to prevent battery discharge. Refer to TSIB No. PG001-06, BATTERY MAINTENANCE FOR IN-STOCK VEHICLES & PRE-DELIVERY for battery maintenance information.
- If the DCC fuses are installed with the ignition switch in the "IG-ON" position, Diagnostic Trouble Codes (DTCs) will be detected. In that case, clear the DTCs.
- If the ignition switch is turned to the "IG-ON" position without the DCC fuses installed, turn the ignition switch to the "IG-OFF" position and wait for more than 10 seconds before installing the fuses.
Replace the engine compartment side cover. Installation is in the reverse order of removal.
When inserting the clips, refer to the illustration.

Fig 3: Identifying Engine Compartment Side Cover & Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
