Front Axle Hub: Installation

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. INSTALL FRONT AXLE HUB WITH DISC
   1. Place the axle hub with disc on the steering knuckle.
      NOTE: Be careful not to damage the ABS speed sensor rotor and oil seal.
   2. Install the outer bearing.
   3. Install the claw washer.
2. ADJUST PRELOAD
   1. Install the adjusting nut and tighten it using SST.

      SST 09607-60020

      Torque: 59 N*m (600 kgf*cm, 43 ft.*lbf)

   2. Turn the axle hub several times to settle down the bearing.
   3. Using SST, loosen the adjusting nut until it can be rotated by hand.

      SST 09607-60020

   4. Using SST, retighten the adjusting nut.

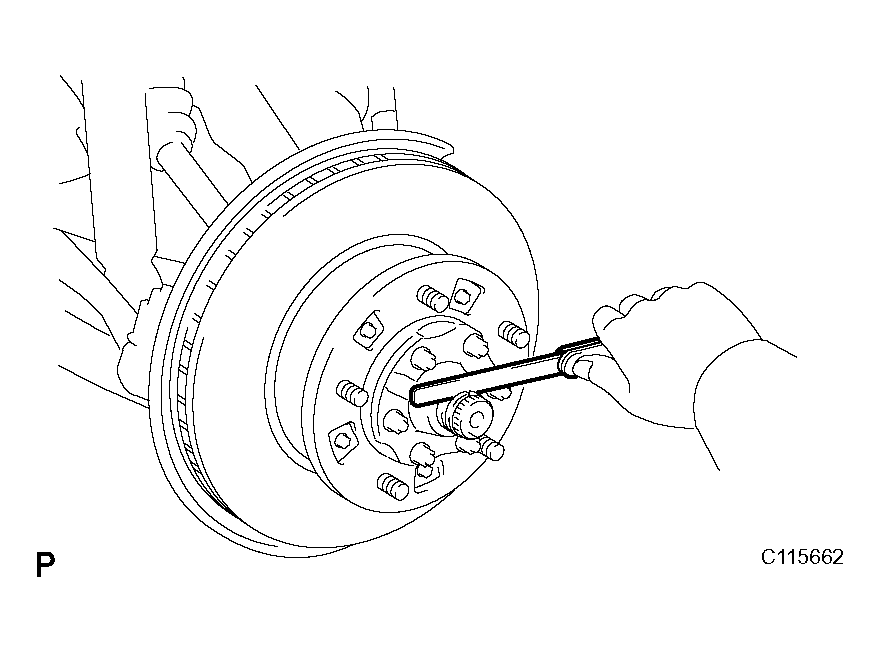

      Fig 1: Identifying Torque Lock Nut And SST

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      SST 09607-60020

      Torque: 4.3 to 6.5 N*m (44 to 66 kgf*cm, 38 to 57 in.*lbf)

      HINT:

      Check that there is no looseness on the bearing.

   5. Using a spring tension gauge, measure the preload.

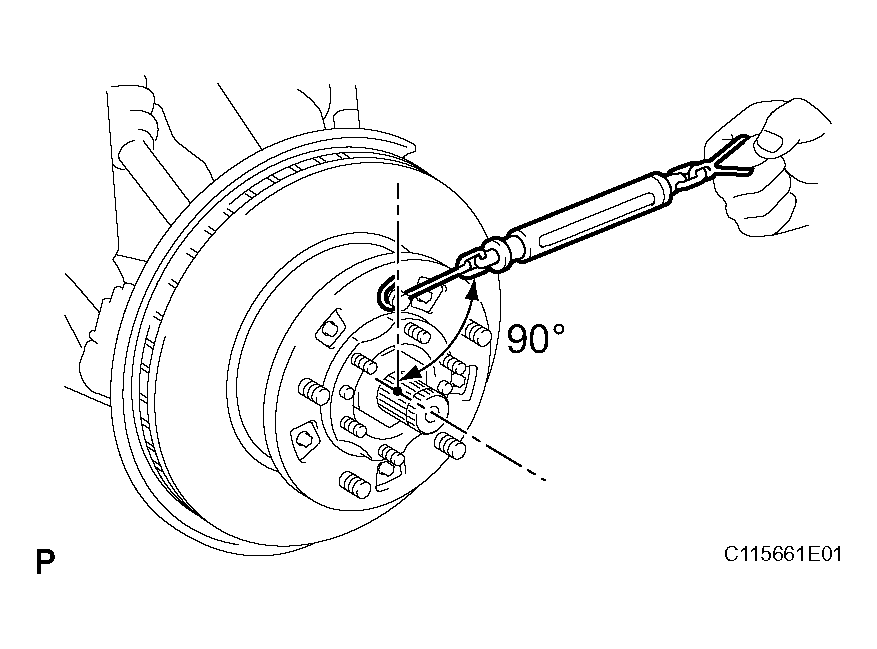

      Fig 2: Measuring Preload

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard preload (at starting): 42 to 67 N (4.3 to 6.8 kgf, 9.5 to 15.0 lbf)

3. INSTALL LOCK WASHER AND LOCK NUT
   1. Install a new lock washer and the lock nut.
   2. Using SST, torque the lock nut.
      Fig 3: Identifying Torque Lock Nut Using SST

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      SST 09607-60020

      Torque: 64 N*m (650 kgf*cm, 47 ft.*lbf)

   3. Check that the axle hub rotates smoothly and there is no looseness on the bearing.
   4. Using a spring tension gauge, check the preload.
      Fig 4: Checking Preload

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard preload (at starting): 42 to 67 N (4.3 to 6.8 kgf, 9.5 to 15.0 lbf)

      HINT:

      Make sure to check the preload in the direction of rotation. If the preload is not within the specified value, adjust it again with the adjusting nut.

   5. Secure the lock nut by bending one of the lock washer teeth inward and the other lock washer teeth outward.
4. INSTALL FRONT AXLE OUTER SHAFT FLANGE
   1. Place a new gasket in position on the axle hub.
   2. Install the flange to the axle hub.
   3. Install the 6 cone washers, 6 washers and 6 new nuts.

      Torque: 33 N*m (335 kgf*cm, 24 ft.*lbf)

   4. Pull out the drive shaft to the outside of the vehicle and select the snap ring which ensures the clearance between the tip of the flange and the snap ring is less than 0.2 mm (0.008 in.).

      Standard snap ring thickness

      SNAP RING THICKNESS SPECIFICATION



      Thickness	Thickness
      1.8 mm (0.0709 in.)	2.4 mm (0.0945 in.)
      2.0 mm (0.0787 in.)	2.6 mm (0.1024 in.)
      2.2 mm (0.0866 in.)	2.8 mm (0.1102 in.)

      Fig 5: Measuring Clearance Between Tip Of Flange And Snap Ring

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   5. Using a snap ring expander, install a new snap ring to the drive shaft.
   6. Install a new grease cap to the flange.
5. INSTALL DISC BRAKE CYLINDER ASSEMBLY
   1. Install the brake caliper with the 2 washers and 2 bolts (See INSTALLATION )..

      Torque: 123 N*m (1,250 kgf*cm, 91 ft.*lbf)

   2. Install the flexible hose and bolt to the steering knuckle.

      Torque: 28 N*m (290 kgf*cm, 21 ft.*lbf)

6. INSTALL FRONT WHEEL

   Torque: 131 N*m (1,340 kgf*cm, 97 ft.*lbf)

7. CHECK ABS SPEED SENSOR SIGNAL
   1. Check ABS speed sensor signal (See DIAGNOSIS SYSTEM ).
