Air Conditioning: SST

AIR CONDITIONING - SPECIAL TOOL SPECIFICATION

G04061130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 07110-58060 Air Conditioner Service Tool Set -
G04061131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (07117-58060) Refrigerant Drain Service Valve -
G04061132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (07117-58070) T-Joint -

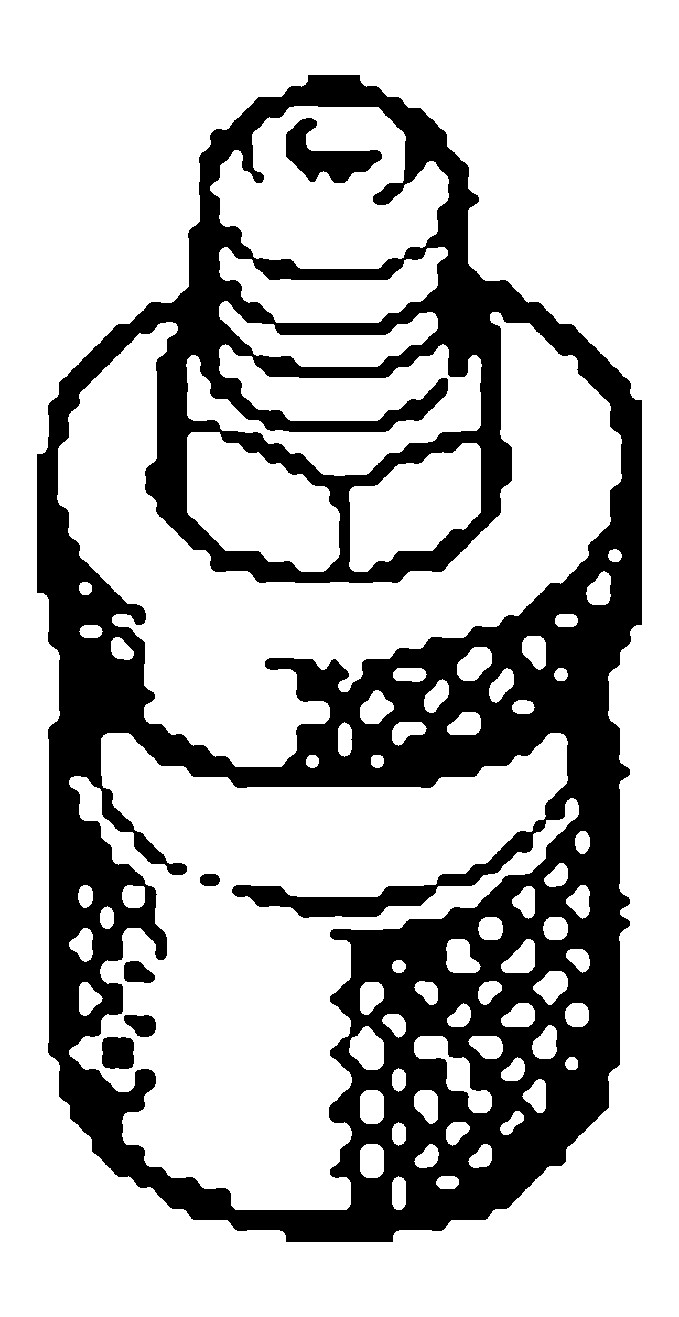

G04061133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (07117-58080) Quick Disconnect Adapter -

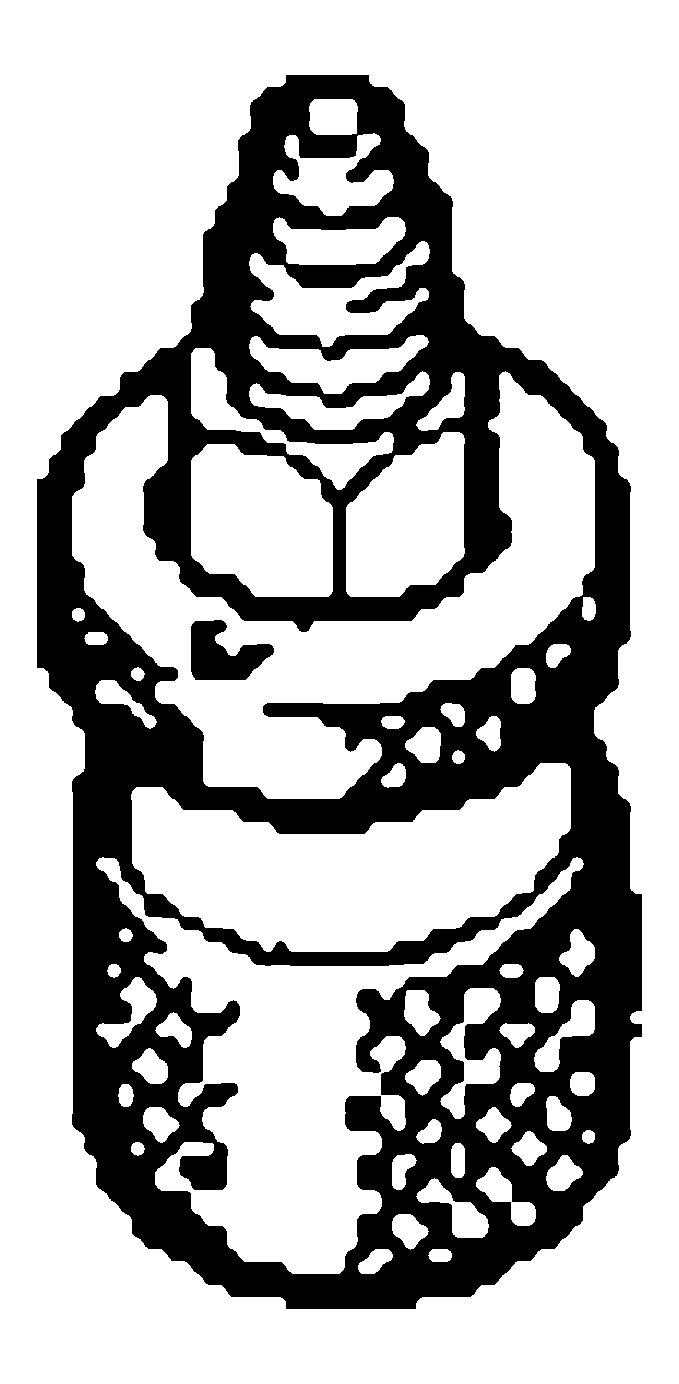

G04061134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (07117-58090) Quick Disconnect Adapter -
G04061135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (07117-78050) Refrigerant Charging Gauge -
G04061136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (07117-88060) Refrigerant Charging Hose -
G04061137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (07117-88070) Refrigerant Charging Hose -
G04061138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 (07117-88080) Refrigerant Charging Hose -
G04061139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 07112-66040 Magnetic Clutch Remover -
G04061140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 07112-76060 Magnetic Clutch Stopper -
G04061141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09870-00015 A/C Quick Joint Puller No.1 -
G04061142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 09870-00025 A/C Quick Joint Puller No.2 -
G04061143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 95994-10020 Snap Ring Pliers (DENSO Part No.) -
