Front Seat Assembly: Components

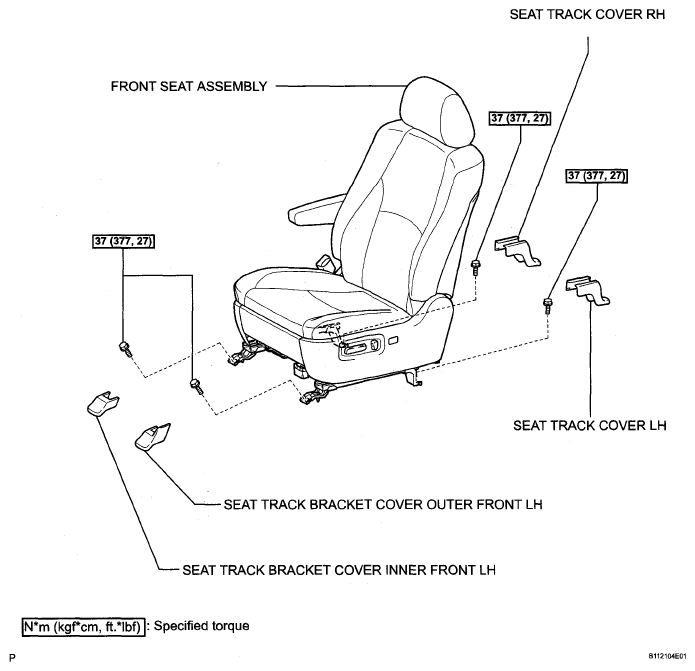

Fig 1: Identifying Front Seat Assembly Components (1 Of 5)
G05274488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

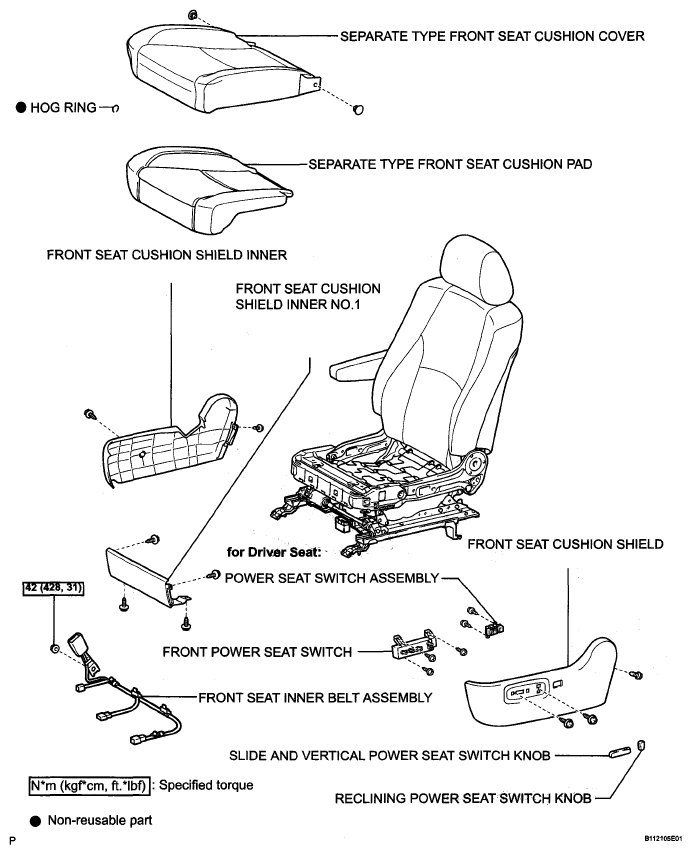

Fig 2: Identifying Front Seat Assembly Components (2 Of 5)
G05274489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

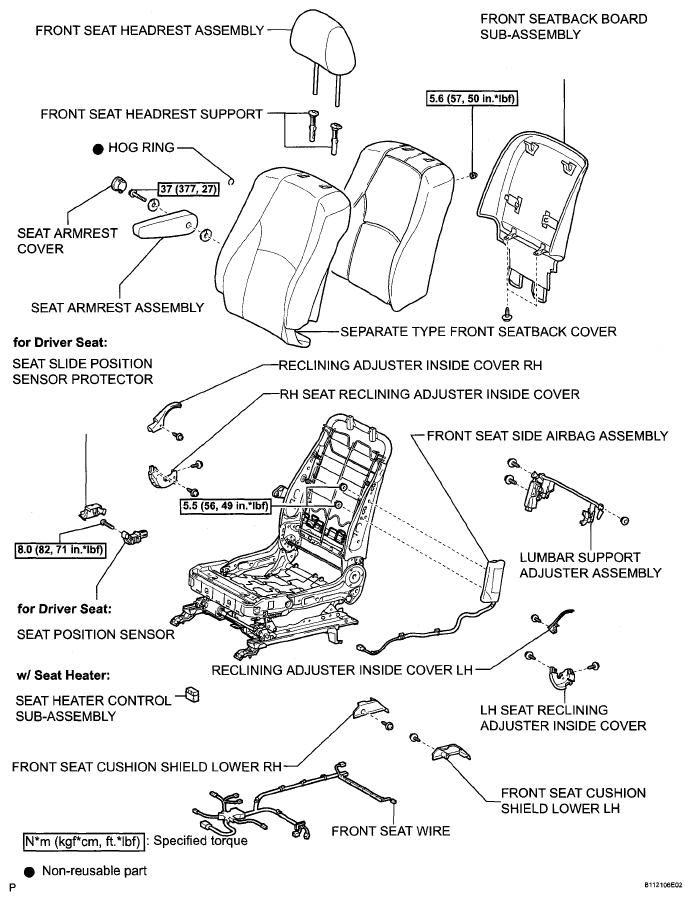

Fig 3: Identifying Front Seat Assembly Components (3 Of 5)
G05274490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

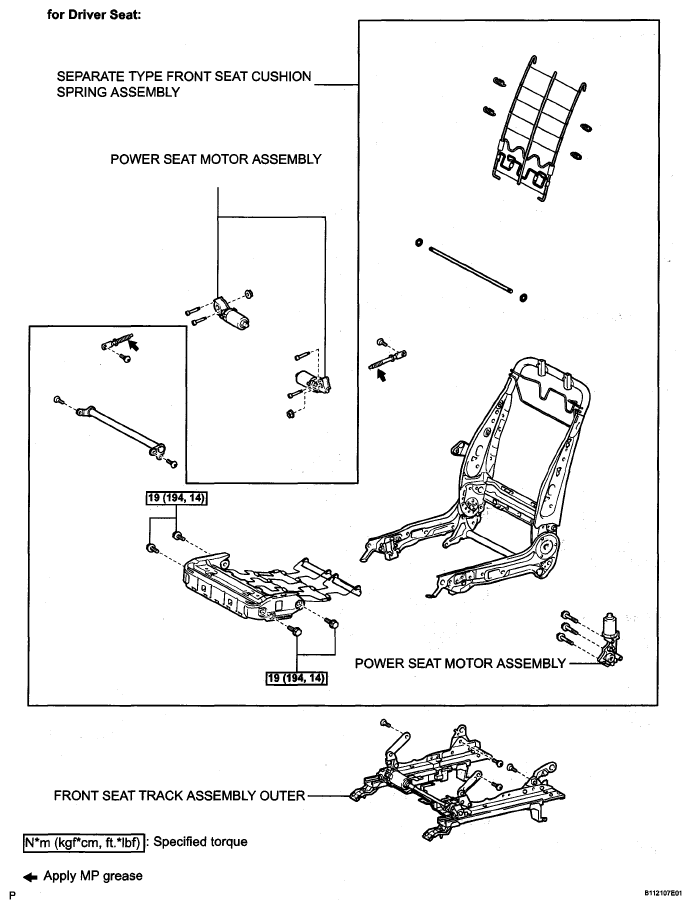

Fig 4: Identifying Front Seat Assembly Components (4 Of 5)
G05274491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

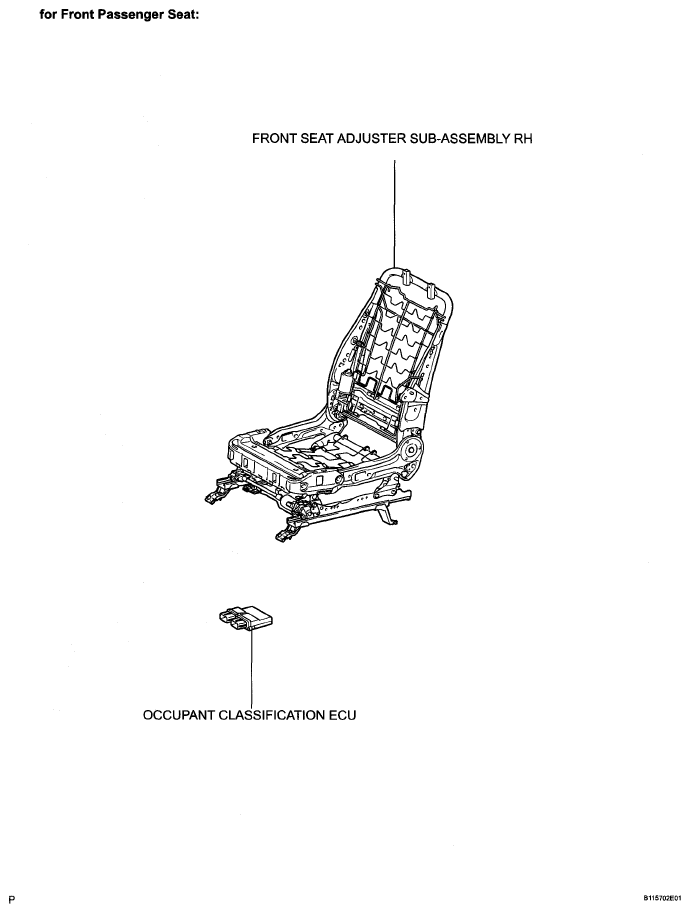

Fig 5: Identifying Front Seat Assembly Components (5 Of 5)
G05274492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
