Rear Center Seat Inner Belt Assembly: Components

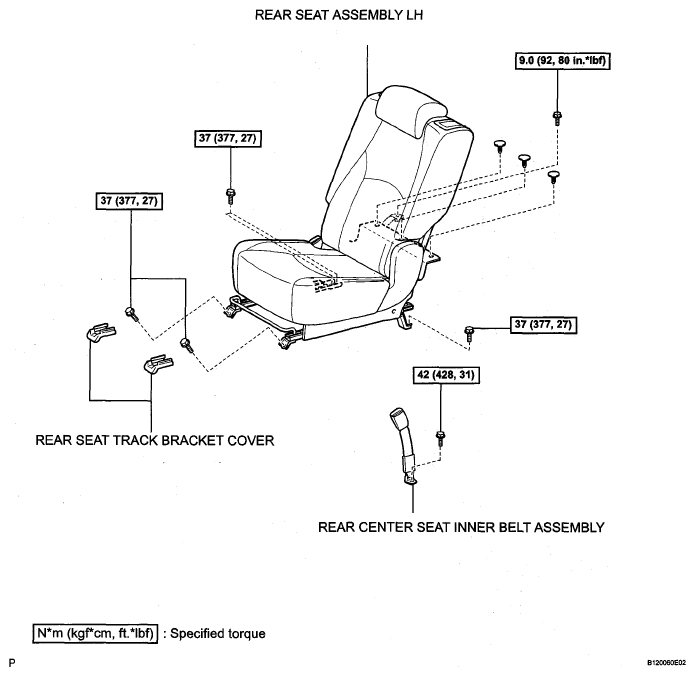

Fig 1: Identifying Rear Center Seat Inner Belt Assembly Replacement Components With Torque Specifications
G05273533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
