Shift Lever: Components

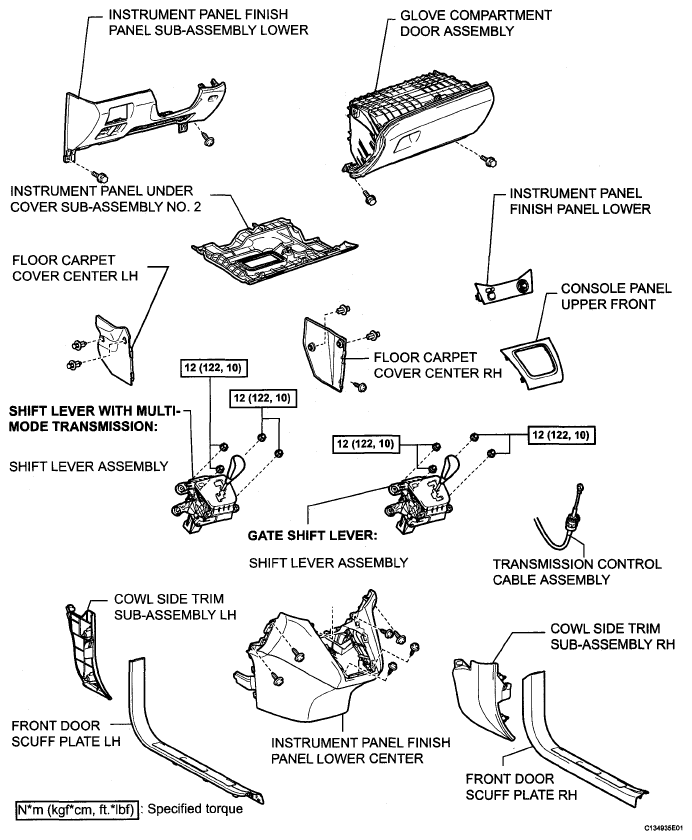

Fig 1: Shift Lever Replacement Components With Torque Specifications (1 Of 2)
G05271961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Shift Lever Replacement Components With Torque Specifications (2 Of 2)
G05271962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
