Front Seat Assembly: Components

Fig 1: Front Seat Assembly Replacement Components With Torque Specifications (1 Of 5)
G05274488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Front Seat Assembly Replacement Components With Torque Specifications (2 Of 5)
G05274489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

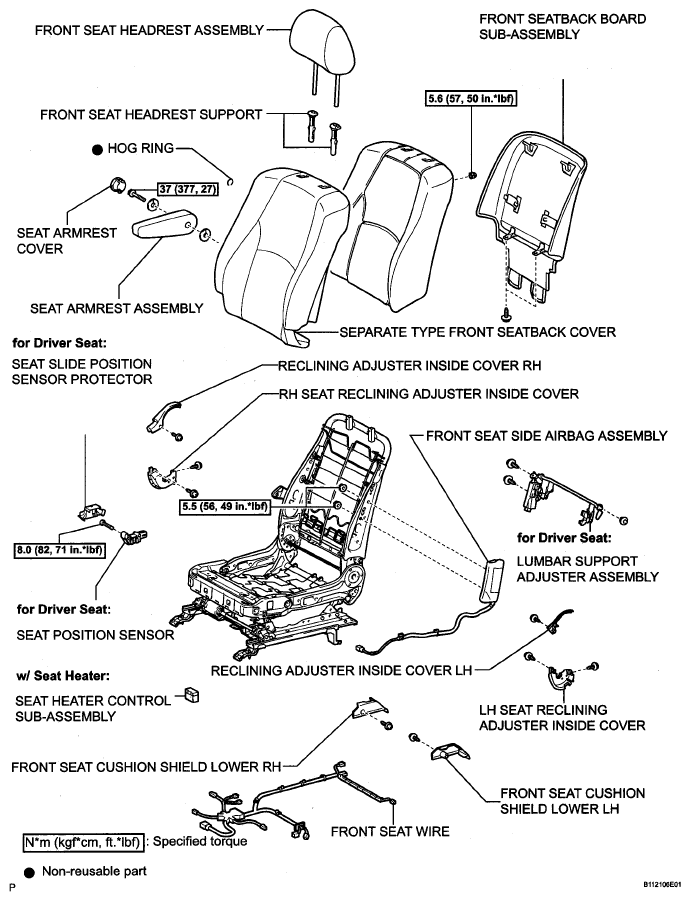

Fig 3: Front Seat Assembly Replacement Components With Torque Specifications (3 Of 5)
G05281322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Front Seat Assembly Replacement Components With Torque Specifications (4 Of 5)
G05274491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Identifying Front Seat Assembly Components (5 Of 5)
G05274492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
