Rear Power Point Socket: Installation

  1. INSTALL POWER OUTLET SOCKET COVER REAR
    1. Engage the 2 claws and install the power outlet socket cover rear.
    Fig 1: Identifying Power Outlet Socket Cover Rear Claws
    G05274226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL REAR POWER POINT SOCKET
    1. Place the rear power point socket with the notch on the power point socket cover, and push in the rear power point socket as hard as possible to install it.
  3. INSTALL ROOF SIDE GARNISH ASSEMBLY INNER LH  (See INSTALLATION )
  4. INSTALL NO.1 TONNEAU COVER HOLDER CAP
  5. INSTALL NO.2 ROOM LIGHT ASSEMBLY  (See INSTALLATION )
  6. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH  (See INSTALLATION )
  7. INSTALL ROPE HOOK  (See INSTALLATION )

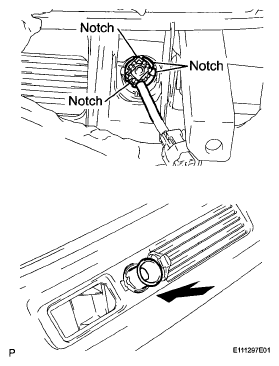

    Fig 2: Installing Rear Power Point Socket
    G05274228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL REAR SEAT SIDE COVER LH  (See INSTALLATION )
  9. INSTALL REAR NO.1 SEAT OUTER BELT ASSEMBLY LH  (See INSTALLATION )
  10. INSTALL DECK SIDE TRIM COVER LH  (See INSTALLATION )
  11. INSTALL REAR FLOOR FINISH SIDE PLATE LH  (See INSTALLATION )
  12. INSTALL REAR FLOOR FINISH PLATE  (See INSTALLATION )
  13. INSTALL DECK SIDE TRIM BOX LH  (See INSTALLATION )
  14. INSTALL DECK SIDE TRIM BOX RH
  15. INSTALL BACK DOOR WEATHERSTRIP
  16. INSTALL NO.3 DECK BOARD SUB-ASSEMBLY  (See INSTALLATION )
  17. INSTALL NO.2 DECK BOARD SUB-ASSEMBLY  (See INSTALLATION )
  18. INSTALL DECK FLOOR BOX REAR  (See INSTALLATION )
  19. INSTALL DECK FLOOR BOX FRONT  (See INSTALLATION )
  20. INSTALL JACK CARRIER ASSEMBLY
  21. INSTALL JACK ASSEMBLY
  22. INSTALL JACK CARRIER SUPPORT
  23. INSTALL TONNEAU COVER ASSEMBLY
  24. INSTALL DECK BOARD SUB-ASSEMBLY  (See INSTALLATION )
  25. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH
  26. INSTALL REAR DOOR SCUFF PLATE LH  (See INSTALLATION )
